5. Mount the workstation or Express Station on the kiosk by inserting the two standoffs with the M4 screws into the top
display bracket holes. Slide the unit down into the smaller grooves, and then tighten the M4 screws.
Follow the Box 2 assembly instructions, and include the changes described below:
a. Box 2, Step 1: Does not apply to this assembly scenario and can be ignored.
b. Box 2, Step 2: Follow as directed.
c. Box 2, Step 3: Does not apply to this assembly scenario and can be ignored.
d. Box 2, Step 4: Follow as directed.
e. Box 2, Step 5: Does not apply to this assembly scenario and can be ignored.
f. Box 2, Step 6: If your installation does not include any optional components, replace the I/O panel cover ("cable
casing"). If your installation does include optional components (payment device, printer, etc.), install all
components and connect the required cables before replacing the I/O panel cover.
Optional: Mount a Barcode Scanner
6. Open Box 5 and follow the steps below to mount the barcode scanner on the kiosk:

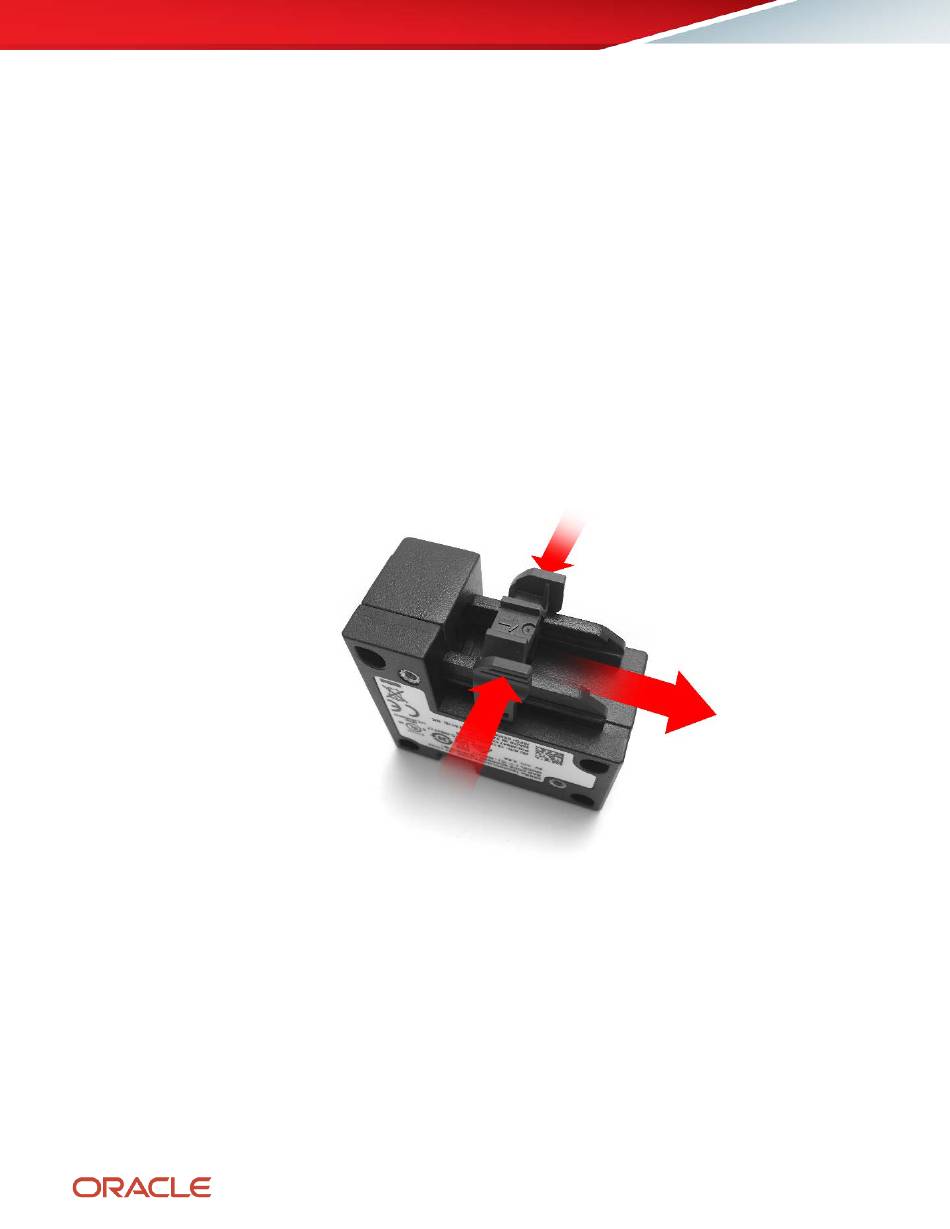

a. Remove the cable clip from the scanner by pinching the side tabs of the clip and sliding it away from the
scanner.
Removing the cable clip from the scanner.
