Follow the assembly instructions for Box 1A (ELO-STAND-SELF-SERVICE-15-22-FLOOR-TOP and E797162 ELO-
STAND-SELF-SERVICE-15-22-FLOOR-BASE), and include the changes described below:
a. Box 1A, Steps 1-3: Follow as directed.
b. Box 1A, Step 4: Power strip not included. To mount a customer-supplied power strip, follow the Step 4
instructions.
c. Box 1A, Step 5: Take the workstation power supply from Box 2 and use the straps from Box 1A to secure it to
the stand interior. Insert the power cord into the workstation power supply you mounted in the stand interior,
and then route the cable down and out from under the base plate as required.
− If your installation includes a payment device with a power supply, install the payment device power
supply now.
− If your installation includes a printer, install the printer power supply now (Box 6).
d. Box 1A, Step 6: Follow as directed.
e. Box 1A, Step 7: This install supports the Windows Display Bracket only.
f. Box 1A, Step 8: Use position A for the Oracle MICROS Workstation 625/655 in landscape orientation. Use
position C for the Oracle MICROS Express Station 400 in portrait orientation.
g. Express Station 4 Series Note: Route a C13 power cord from the stand interior, and then through the
rectangular opening on the display bracket swinging plate.

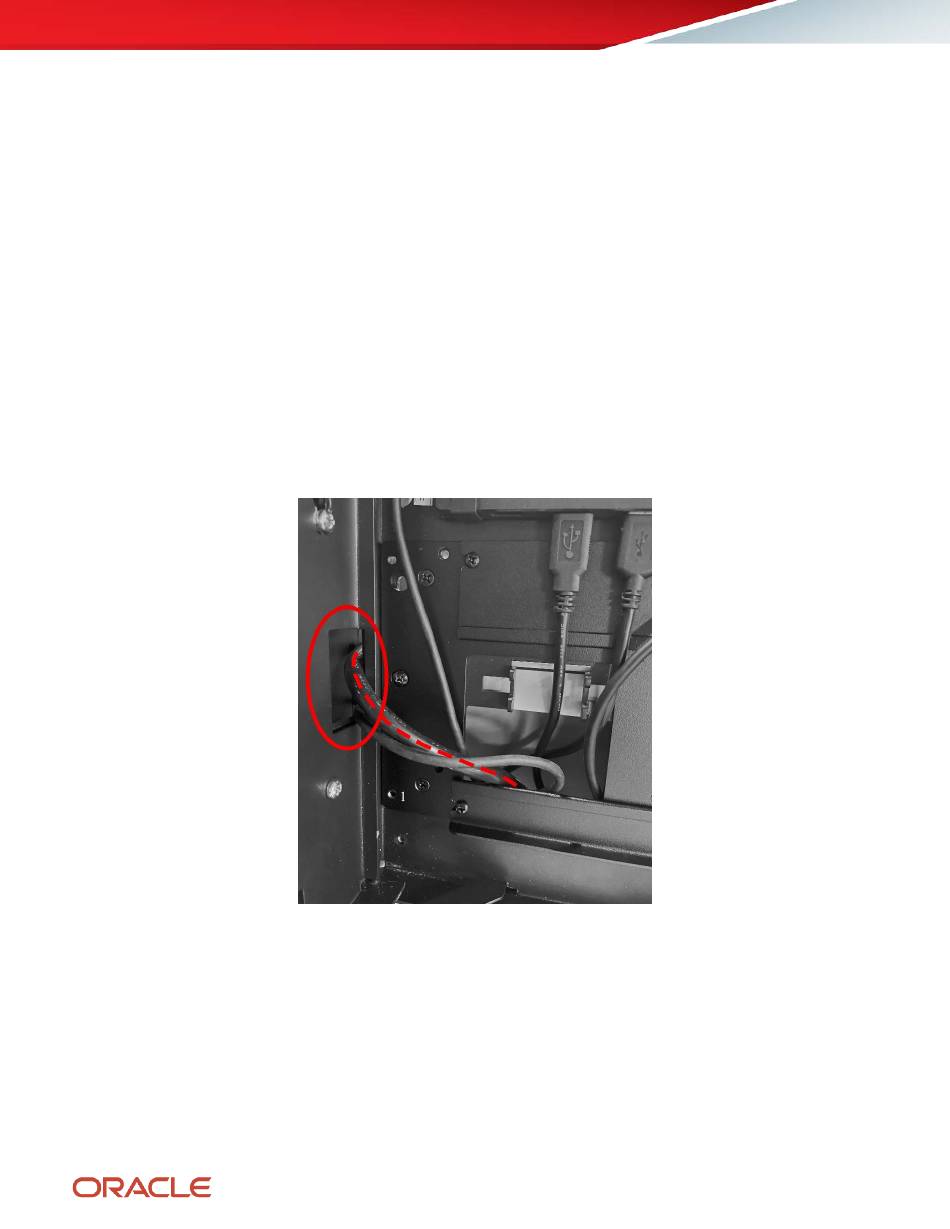

Routing a C13 power cord through the display bracket
h. Box 1A, Step 9: After installing the USB Hub, do not continue to Step 14 as instructed. Instead, mount the
Oracle MICROS Workstation 625/655 on the kiosk.
