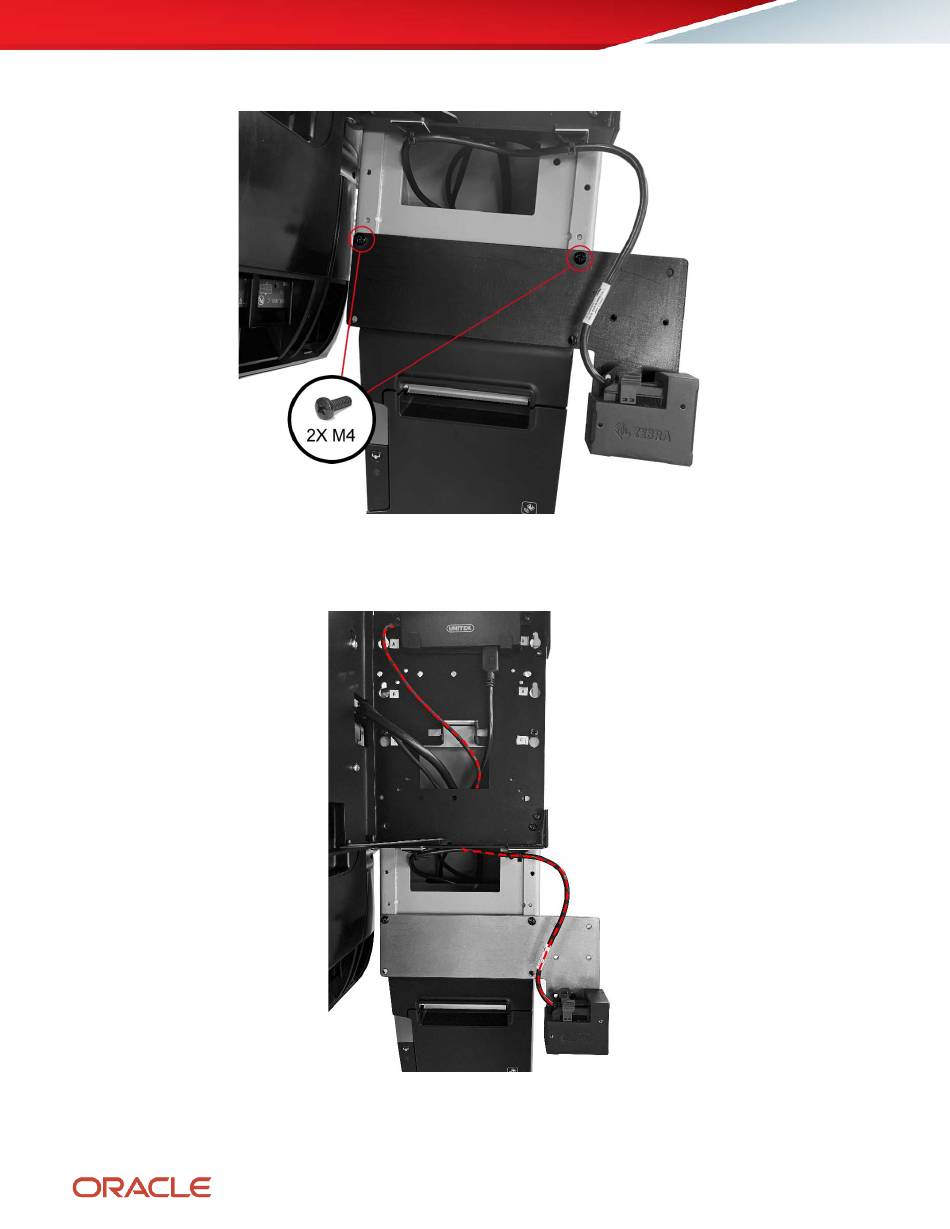

Attaching the scanner/L-bracket assembly to the floor head assembly (Express Station 4 Series portrait configuration)
h.
Connect the scanner cable to the USB hub by routing the cable through the opening in the floor head assembly,
and then through the opening in the display bracket.
The dashed line shows the proper scanner cable routing path (Express Station 4 Series portrait configuration)
11
