CABLE CONNECTIONS
Completing the Installation

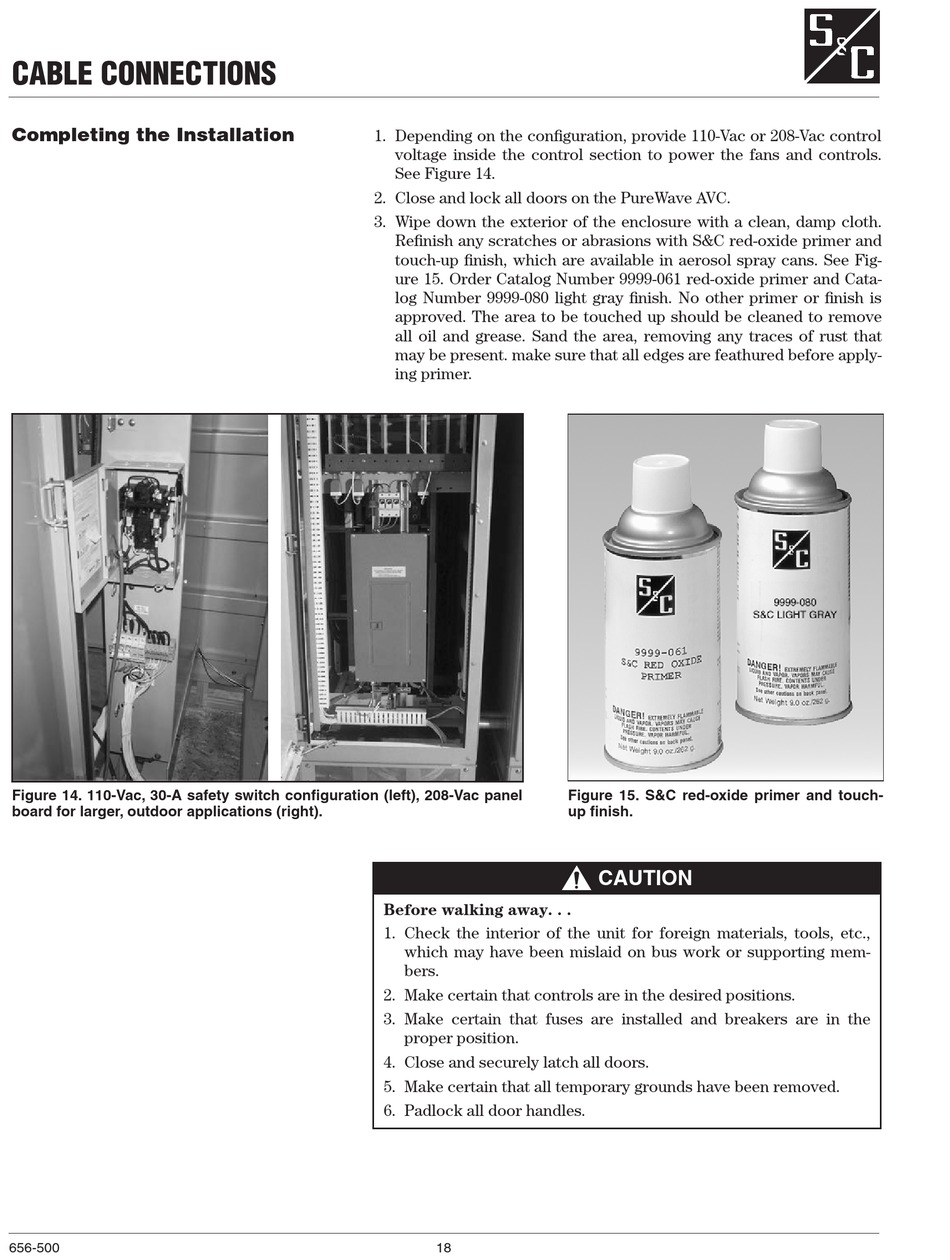

Figure 14. 110-Vac, 30-A safety switch configuration (left), 208-Vac panel
board for larger, outdoor applications (right).
656-500
1. Depending on the configuration, provide 110-Vac or 208-Vac control
voltage inside the control section to power the fans and controls.
See Figure 14.
2. Close and lock all doors on the PureWave AVC.
3. Wipe down the exterior of the enclosure with a clean, damp cloth.
Refinish any scratches or abrasions with S&C red-oxide primer and
touch-up finish, which are available in aerosol spray cans. See Fig-
ure 15. Order Catalog Number 9999-061 red-oxide primer and Cata-
log Number 9999-080 light gray finish. No other primer or finish is
approved. The area to be touched up should be cleaned to remove
all oil and grease. Sand the area, removing any traces of rust that
may be present. make sure that all edges are feathured before apply-
ing primer.
Before walking away. . .
1. Check the interior of the unit for foreign materials, tools, etc.,
which may have been mislaid on bus work or supporting mem-
bers.
2. Make certain that controls are in the desired positions.
3. Make certain that fuses are installed and breakers are in the
proper position.
4. Close and securely latch all doors.
5. Make certain that all temporary grounds have been removed.
6. Padlock all door handles.
18
Figure 15. S&C red-oxide primer and touch-
up finish.
