5. Refer to repair parts list below. Attach hitch bracket to drawbar with two 3/8" x 3/4" hex
bolts and keps nuts as shown. Insert hitch pin and lock in place with hairpin provided.

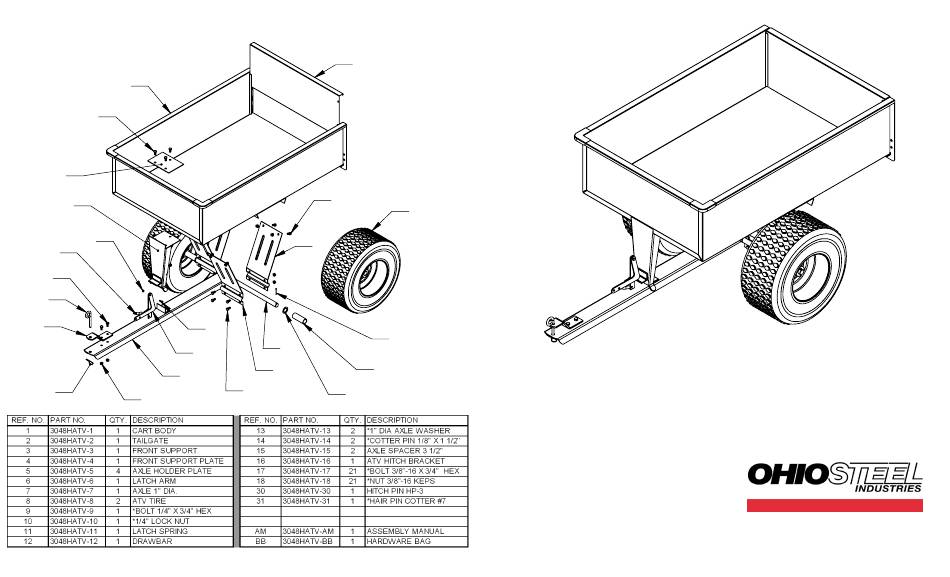

REPAIR PARTS LIST
1
17
4
3
10
11
17
30
16
12
31
18
* denotes standard hardware item, can be purchased locally.
2
17
5
9
7
6
5
17
13
8
14
15
CAUTION:
READ AND FOLLOW
ALL SAFETY RULES
AND INSTRUCTIONS
BEFORE USING
THIS EQUIPMENT.
3048HATV
12 CU. FT. HEAPED CAPACITY
ALL TERRAIN CART
ASSEMBLY MANUAL AND PARTS LIST
2575 FERRIS ROAD
COLUMBUS, OHIO 43224-2597
3048HATV-REV-N/C
5/04
