OHIOSTEEL HEAPED DUMP CART 3460HKD Assembly Manual

3460HKD

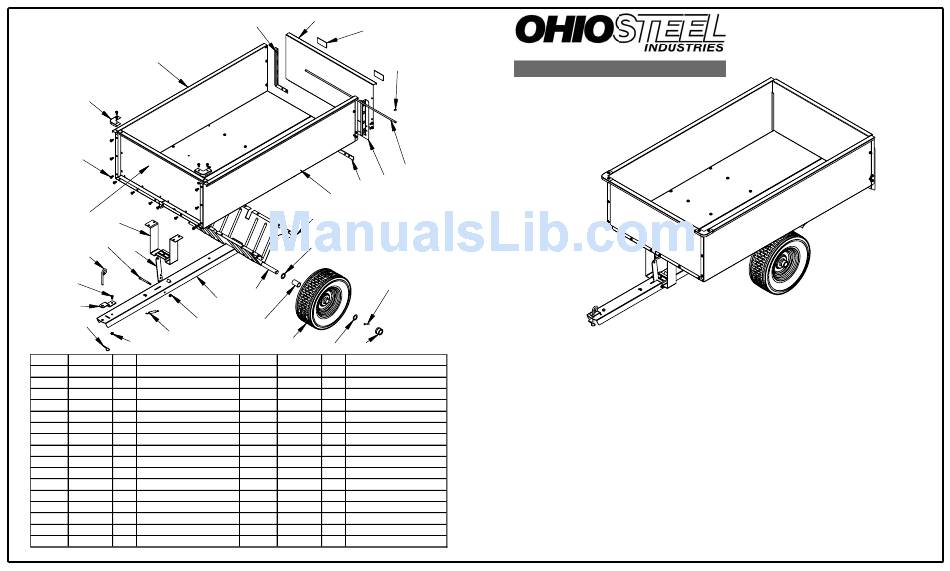

REPAIR PART LIST
1
4
23
25
3
9
14
13
30
28
16
28K
50
15
28K
REF.NO. PART NO. AMT. DESCRIPTION
1 7-1 1 Right Body Half
2 7-2 1 Left Body Half
3 7-3 1 Front Gate
4 7-4 2 Corner
5 7-5 1 Rear Support Bar
7 7-7 1 Tailgate
8 7-8 1 Tailgate Rod
9 7-9 1 Front Support
11 7-11 1 Axle Holder
12 27-12A 1 Drawbar Assembly
13 55-13A 1 Latch Post Bar
14 55-14A 1 Latch Bolt 3/8"-16x4"Hex
15 55-15A 1 Latch Spring
16 55-16A 1 Hitch Bracket
17 7-17 1 Axle #2
18 7-18 2 HDPE Spacer 2-1/16"
7
34
38
35
5
2
11
19
17
32
12
18
21
19 20
REF.NO. PART NO. AMT. DESCRIPTION
19 7-19 4 Axle Washer 1"
20 55-20 2 Hub Cap
21 7-21 2 Wheel #3
23 55-23K 51 5/16"-18 Keps Nut
25 55-25 51 5/16"-18 x 3/4 Pan Head
28 55-28 1 3/8"-16 X 3/4" Hex Head
28K 55-28K 2 3/8"-16 Keps Nut
30 55-30 1 Hitch Pin
31 7-31 2 Cotter Pin 3/32 x 3/4
32 7-32 2 Cotter Pin 1/8 x 1 1/2"
34 55-7A 1 Gate Retainer - Right
35 55-8A 1 Gate Retainer - Left
36 7-BBA 1 Hardware Bag
38 7-38 2 Reflector
39 7-39 1 Assembly Instruction
50 55-31 1 Hairpin Cotter
REV-NC
31
8
CAUTION:
READ AND FOLLOW
ALL SAFETY RULES
AND INSTRUCTIONS
BEFORE USING
THIS EQUIPMENT
FULL ONE-YEAR WARRANTY
If this product fails due to a defect in material or workmanship within one year from the date
of purchase, Ohio Steel will at its option repair or replace it free of charge. This warranty
excludes Tires and Wheels which are expendable and become worn during normal use.
Proof of purchase required
This warranty does not cover:
· Repairs necessary because of operator abuse or negligence.
· Equipment use for commercial or rental purposes.
Contact Ohio Steel to arrange for product repair, or return this product to place of purchase
for replacement.
This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state. This Warranty applies only while this product is in use in the United
States.

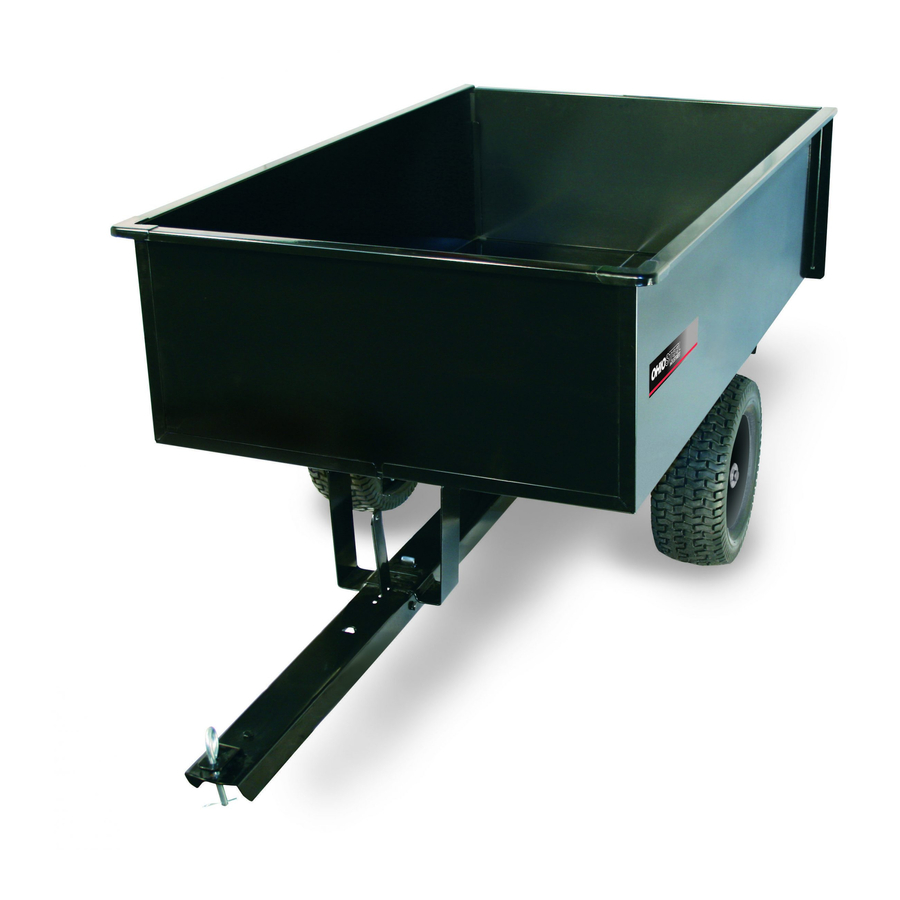

20 CUBIC FOOT
HEAPED DUMP CART
ASSEMBLY MANUAL
Ohio Steel Industries
Columbus, OH 43224 U.S.A.
Visit our website: www.ohiosteel.com
For missing parts or questions
Call 1-800-652-2321
.
3460HKD
