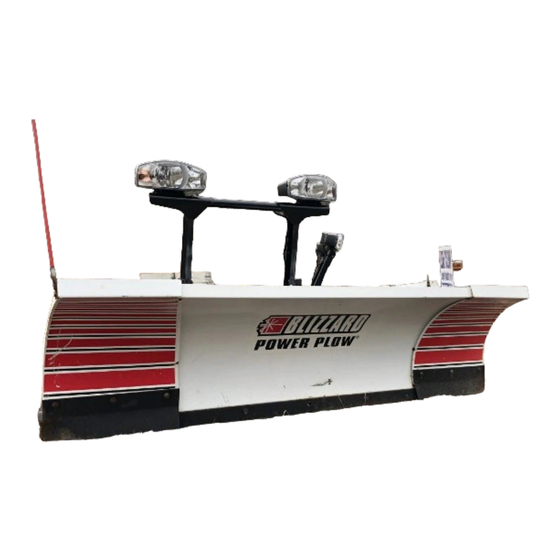

- Page 1 May 1, 2021 Lit. No. 40691, Rev. 05 POWER PLOW Snowplow ™ Models 8100PP & 86110LP Owner's Manual CAUTION Read this manual before operating or servicing snowplow. This manual supersedes all editions with an earlier date. A DIVISION OF DOUGLAS DYNAMICS, LLC...
-
Page 3: Snowplow Owner Data Sheet
SNOWPLOW OWNER DATA SHEET Register your snowplow online at www.blizzardplows.com Owner Name: ______________________________________________________________________________ Date Purchased: ____________________________________________________________________________ Outlet Name: _______________________________________________ Phone: _________________________ Outlet Address: _____________________________________________________________________________ Vehicle Model/Year: _________________________________________________________________________ Snowplow Model/Year: _______________________________________________________________________ Snowplow Type/Size: ______________________________________________ Weight: ______________ lb/kg Ballast: No ___ Yes ___ Amount: ___________lb/kg Hydraulic Unit Serial Number: __________________________________________________________________ Blade Serial Number: ________________________________________________________________________... -
Page 5: Table Of Contents
TABLE OF CONTENTS SNOWPLOW OWNER DATA SHEET ..... 3 REMOVING SNOWPLOW FROM VEHICLE & STORAGE ............28 PREFACE ..............7 MAINTENANCE ............30 SAFETY ..............8 Aiming Headlamp Beams ........30 VEHICLE APPLICATION INFORMATION ... 11 Preseason Check..........31 Ballast Requirements .......... 11 Postseason Maintenance........ - Page 6 Lit. No. 40691, Rev. 05 May 1, 2021...
-
Page 7: Preface
PREFACE PREFACE AUTHENTIC PARTS AND ACCESSORIES Congratulations on purchasing the fi nest Your BLIZZARD snowplow is a valuable investment. POWER PLOW™ snowplow available! The best way to assure original equipment reliability and effi ciency is to purchase only Authentic Parts BLIZZARD POWER PLOW ®... -
Page 8: Safety
SAFETY SAFETY DEFINITIONS WARNING/CAUTION AND INSTRUCTION LABELS WARNING Become familiar with and inform users about the Indicates a potentially hazardous situation warning and instruction labels on the back of the that, if not avoided, could result in death or blade. serious personal injury. - Page 9 FUSES WARNING The BLIZZARD electrical and hydraulic systems Do not exceed GVWR or GAWR including the contain several automotive-style fuses. If a problem blade and ballast. The rating label is found on should occur and fuse replacement is necessary, the driver-side vehicle door cornerpost.
- Page 10 SAFETY FIRE AND EXPLOSION BATTERY SAFETY WARNING CAUTION Gasoline is highly fl ammable and gasoline Batteries normally produce explosive gases, vapor is explosive. Never smoke while which can cause personal injury. Therefore, working on vehicle. Keep all open fl ames do not allow fl...
-
Page 11: Vehicle Application Information
If ballast is required, it is important that it be secured the following: properly behind the rear axle. A ballast retainer kit is available from your BLIZZARD outlet, PN 62849. • The vehicle with the snowplow installed must comply with applicable Federal Motor Vehicle NOTE: The ballast retainer kit is for snowplow Safety Standards (FMVSS). -
Page 12: Getting To Know Your Snowplow
GETTING TO KNOW YOUR SNOWPLOW SNOWPLOW HEADLAMPS VEHICLE MOUNT Blizzard has designed custom mounts for most WARNING vehicles. Due to diff erences among vehicle models, Your vehicle must be equipped with snowplow mounts are generally not interchangeable. headlamps and directional lights. -
Page 13: Hydraulic System
OFF. For hydraulic fl uid type and fi lling instructions, see Hydraulic System, Annual Fluid Change, in the Maintenance section of this Owner's Manual. BLIZZARD snowplows come equipped with one of ® two special controls: the POWER GRIP™ hand-held Breather control or a joystick-style control. -
Page 14: Accessories & Options
fl uid is specially formulated for ® optimum snow defl ection. The defl ector is shipped use in BLIZZARD snowplows and can signifi cantly complete with mounting hardware. enhance the operation and performance of the hydraulic system. BLIZZARD zinc-free hydraulic fl uid maintains its viscosity to temperatures as low as –40°F (–40°C). - Page 15 fi nish to help keep your snowplow looking its best. NOTE: The ballast retainer kit is for snowplow Paint provided in 12-oz spray cans. vehicles requiring ballast. See your BLIZZARD outlet for the correct amount of ballast required. Include the weight of the retainer as part of the ballast requirement.
-
Page 16: Mounting Snowplow To Vehicle
MOUNTING SNOWPLOW TO VEHICLE MOUNTING SNOWPLOW (ON) 5. Rotate and release the hitch pin. The hitch pin is fully engaged when the pin handle is against the pin guide plate. WARNING Keep 8' clear of the blade when blade is being raised, lowered, or angled. -
Page 17: Operating Your Snowplow
OPERATING YOUR SNOWPLOW POWER PLOW™ BLADE Float Light Power Indicator JOYSTICK SOLENOID CONTROL (green) Light (red) ON/OFF FLOAT WARNING RAISE BUCKET BLADE™ COMPACT To prevent accidental movement of the blade, ON/OFF always move the ON/OFF switch to OFF Switch whenever the snowplow is not in use. The (emergency power indicator light will turn OFF. - Page 18 OPERATING YOUR SNOWPLOW Control Lever Movement Control Functions From the center position, the control lever can be Raise, Lower, Float, Angle moved in one of eight directions to control various movements of the snowplow blade. To change from Moving the control lever in straight lines up and down one movement of the blade to another, the control or from side to side on the control body will result in lever must be moved back to the center position...
-
Page 19: Power Grip™ Hand-Held Control
OPERATING YOUR SNOWPLOW POWER PLOW™ BLADE NOTE: If control function times out before desired POWER GRIP™ HAND-HELD CONTROL blade movement is complete, release button and press again. WARNING To prevent accidental movement of the blade, Automatic Shutdown always push the ON/OFF button to switch the control OFF whenever the snowplow is not in The control automatically FLOAT... - Page 20 OPERATING YOUR SNOWPLOW Your snowplow is the most advanced and versatile A. Compact Position POWER PLOW™ snowplow on the market. The (8' or 8'6" Blade Width) easy-to-use controls allow you to automatically adjust • Primary position when transporting the the snowplow blade into an infi nite number of plowing snowplow positions.
-
Page 21: Snowplow Headlamp Check
OPERATING YOUR SNOWPLOW SNOWPLOW HEADLAMP CHECK DISC SHOE ADJUSTMENT With all electrical plugs connected, check the WARNING operation of vehicle and snowplow headlamps. Blade can drop unexpectedly. Place blade on stand assembly. Failure to do so could result Connecting and disconnecting the electrical plugs in serious personal injury. - Page 22 OPERATING YOUR SNOWPLOW Turn the vehicle ignition to the "ON" position, and turn the control ON. Raise the blade slightly from the stand assembly or blocking. Turn the control OFF, and remove the stand assembly or blocking. 8. Stand 8' clear of the blade when checking the height adjustment of the cutting edge to the road surface.
-
Page 23: Hydraulic System
OPERATING YOUR SNOWPLOW HYDRAULIC SYSTEM Breather Motor The hydraulic unit's valve manifold includes relief valves to prevent damage to the blade or vehicle Reservoir if either end of the blade hits an obstacle. The valves are preset at the factory and do not need any Blade Drop adjustments unless the valve manifold is serviced. -
Page 24: Blade Drop Speed Adjustment
OPERATING YOUR SNOWPLOW BLADE DROP SPEED ADJUSTMENT 2. Lower the blade to the ground before making adjustment. WARNING 3. Turn the needle valve inward (clockwise) to decrease the drop speed. Turn the needle valve Keep 8' clear of the blade when blade is being raised, lowered, or angled. -
Page 25: Transporting Snowplow
OPERATING YOUR SNOWPLOW TRANSPORTING SNOWPLOW DRIVING AND PLOWING ON SNOW AND ICE WARNING WARNING Position blade so it does not block headlamp Drinking then driving or plowing is very beam. Do not change blade position while dangerous. Your refl exes, perceptions, traveling. -
Page 26: Plowing Snow
OPERATING YOUR SNOWPLOW PLOWING SNOW 3. Do not exceed 10 mph (16 km/h) when plowing snow. WARNING 4. When you are stacking snow, begin raising the blade as you come close to the stack. This will let Never plow snow with head out the vehicle window. -
Page 27: Clearing Driveways
OPERATING YOUR SNOWPLOW Clearing Driveways PARKING WITH SNOWPLOW ATTACHED 1. Head into the driveway with the blade angled and WARNING plow the snow away from any buildings. Widen Lower blade when vehicle is parked. Keep driveway by rolling snow away from any buildings. 8' clear of the blade. -
Page 28: Removing Snowplow From Vehicle & Storage
REMOVING SNOWPLOW FROM VEHICLE & STORAGE REMOVING SNOWPLOW (OFF) 4. Pull the stand pin out. Rotate the stand down until the stand pin seats into the lower A-frame hole. The stand pin must lock into the lower A-frame WARNING hole. Push down on the top of the shoe. The shoe will be on the ground. - Page 29 REMOVING SNOWPLOW FROM VEHICLE & STORAGE 9. While holding the power switch RIGHT, push DOWN and hold Arm/Blade Operation switch to fully lower arm. 10. Unplug electrical harnesses. CAUTION On 2-plug electrical systems, plug covers shall be used whenever snowplow is disconnected.
-
Page 30: Maintenance
MAINTENANCE AIMING HEADLAMP BEAMS e. Check functioning of any automatic vehicle leveling systems and specifi c manufacturer's instructions pertaining to vehicle preparation Tighten headlamp fasteners to 45 ft-lb once correct for headlamp aiming. visual aim is achieved. Clean lenses. 1. Place vehicle on a level surface 25 feet in front of a matte-white screen, such as a garage door. -
Page 31: Preseason Check
MAINTENANCE PRESEASON CHECK POSTSEASON MAINTENANCE NOTE: Coat all electrical connections with WARNING dielectric grease. Lower blade when vehicle is parked. Keep 8' clear of the blade. Temperature changes • Clean and paint blade and components as could change hydraulic pressure, causing needed. -
Page 32: Maintenance And Adjustment
5. Blade Finish: If the powder-coated fi nish is maintenance. nicked or scratched, repair the surface and paint with BLIZZARD white or black paint (available in Check the following before and frequently during the aerosol or quart cans). plowing season: 1. -
Page 33: Hydraulic System
MAINTENANCE HYDRAULIC SYSTEM 5. Turn control ON. Raise and lower the blade to reposition the draw latch. Fluid Level For fl uid recommendations, see the following Annual Fluid Change section. CAUTION Do not mix diff erent kinds of hydraulic fl uid. Annual Fluid Change Some fl... -
Page 34: Air Removal
10. With the lift ram fully retracted, fi ll the reservoir through the fi ll hole until the fl uid is 1" from the top of the reservoir. Use BLIZZARD Rapid Action Hydraulic Fluid ® rated to –40°F (–40°C) or other fl uid conforming to Military Specifi... -
Page 35: Hose Or Fitting Replacement
MAINTENANCE Hose or Fitting Replacement Procedure for Installing Hydraulic Fittings and Hoses WARNING NOTE: Overtightening JIC hose fi tting ends will Lower blade when vehicle is parked. Keep result in a fractured fi tting. 8' clear of the blade. Temperature changes could change hydraulic pressure, causing DO NOT use any type of sealant or tape on the fi... -
Page 36: Fuse Replacement
FUSE REPLACEMENT EMERGENCY PARTS/TOOLS The vehicle control harness contains two We suggest that you keep a BLIZZARD emergency automotive-style fuses. The snowplow control and parts kit (PN 41143) in your vehicle. These kits contain park/turn power are both covered by a 10A fuse. The BLIZZARD hydraulic fl... -
Page 37: Technical Specifications
* Weight does not include undercarriage or mount adapter. ** Amperage Draw specifi cations are based on snowplow lift operation, at a shop temperature of 65°F, using BLIZZARD Rapid Action Hydraulic Fluid. Amperage will vary with temperature, fl uid viscosity and meter ®... -
Page 38: Harness Diagrams
HARNESS DIAGRAMS Vehicle-Side Harness Diagram 3-Port, 2-Plug System CAUTION On 2-plug electrical systems, plug covers shall be used whenever snowplow is disconnected. Vehicle battery cable is 12V unfused source. Lit. No. 40691, Rev. 05 May 1, 2021... - Page 39 NOTES Lit. No. 40691, Rev. 05 May 1, 2021...
- Page 40 Copyright © 2021 Douglas Dynamics, LLC. All rights reserved. This material may not be reproduced or copied, in whole or in part, in any printed, mechanical, electronic, fi lm, or other distribution and storage media, without the written consent of Blizzard. Authorization to photocopy items for internal or personal use by Blizzard outlets or snowplow owner is granted.
