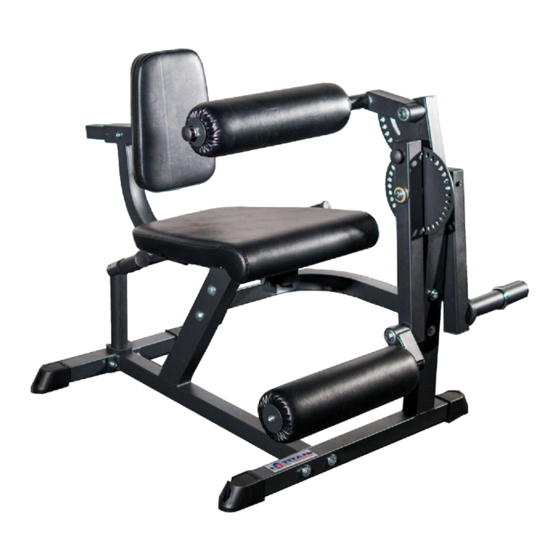

LEG EXTENSION AND CURL MACHINE
LEGEXTCRL
400595
Operator's Manual
Read the Operator's Manual entirely. When you see this
symbol, the subsequent instructions and warnings are
serious follow without exception. Your life and the lives
of others depend on it!
Cover photo may show optional equipment not supplied
with standard unit. For an Operator's Manual and Decal
Kit in French or Spanish Language, please see your dealer.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Titan Fitness LEGEXTCRL
Summary of Contents for Titan Fitness LEGEXTCRL

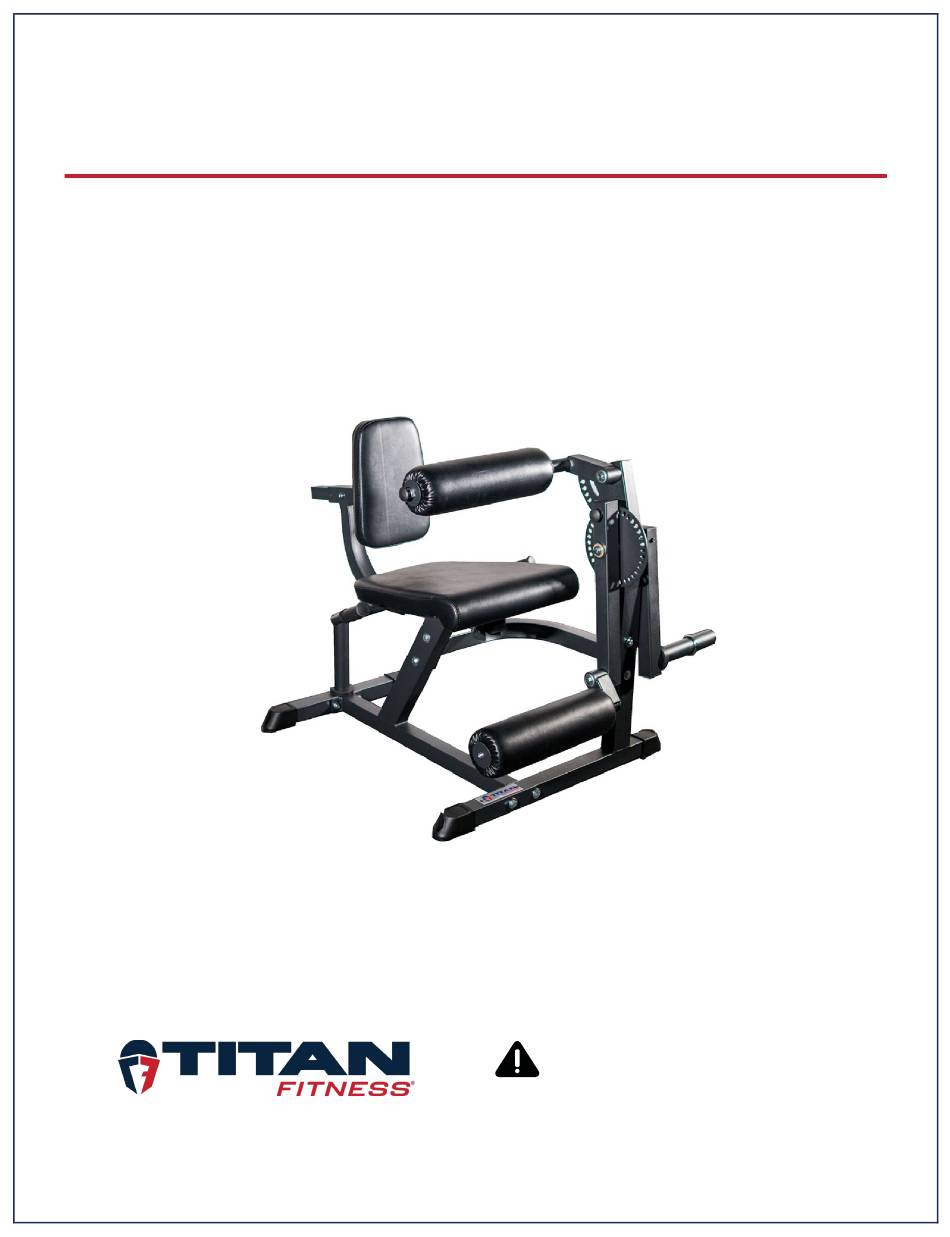

- Page 1 LEG EXTENSION AND CURL MACHINE LEGEXTCRL 400595 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it! Cover photo may show optional equipment not supplied with standard unit.
- Page 2 PARTS DIAGRAM / EXPLODED VIEW...
- Page 3 PARTS DIAGRAM / EXPLODED VIEW DESCRIPTION DESCRIPTION MAIN FRAME (27) BACK CUSHION FRONT UPRIGHT FRAME (28) SEAT CUSHION REAR FOOT FRAME (29) BIG FOAM CUSHION CONNECT FRAME (30) F50 HORSESHOE SLEEVE BACK CUSHION FRAME (31) HOLLOW SLEEVE 1 SEAT CUSHION FRAME (32) HANDLE SLEEVE LEFT HANDLE FRAME...
- Page 4 ASSEMBLY INSTRUCTIONS STEP 1: Connect Main Frame (1), Front Upright Frame (2), Rear Foot Frame (3) and Connect Frame (4), using Flat Washer (42), Flat Washer (44), Nut M10 (47), and Hex Bolt M10*70 (49)
- Page 5 ASSEMBLY INSTRUCTIONS STEP 2: Fix Left Handle Frame (7), Right Handle Frame (8) on Main Frame (1), using Flat Washer (44), Nut M10 (47), and Hex Bolt M10*75 (50) Fix Weight Plate Retaining Bolt (17) on Front Upright Frame (2), using Flat Washer (42), Spring Washer (46) and Hex Bolt M10*25 (48)
- Page 6 ASSEMBLY INSTRUCTIONS STEP 3: Plug Back Cushion Frame (5) into Main Frame (1), using Hex Head Bolt (51). Fix Seat Cushion Frame (6) on Main Frame (1), using Double End Bolt M10 (16), Nut M10 (47). Fix Seat Cushion Frame (6) on Maine Frame (1) using L Bolt (20).
- Page 7 ASSEMBLY INSTRUCTIONS STEP 4: Fix Bearing Washer (26) and Leg Foam Rack (12) on Leg Swing Frame (10) using Flat Washer (42), Spring Washer (46), Hex Bolt M10*25 (48). Fix Bearing Washer (26) and Press Leg Foam Rack (13) on Front Upright Frame (2) using the Flat Washer (42), Spring Washer (46), Hex Bolt M10*25 (48).
- Page 8 ASSEMBLY INSTRUCTIONS STEP 5: Fix Back Cushions (27) on Back Cushion Frame (5) using Flat Washer (44), Hex Bolt M10*25 (48). Fix Seat Cushion (28) on Seat Cushion Frame (6) using Flat Washer (44), Hex Bolt M10*25 (48) Install Force Spring (22) on Weight Plate Rack (9)
- Page 9 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages,...
- Page 10 NEED HELP? CONTACT US FIRST. 1-888-410-1503 info@titan.fitness www.titan.fitness © 2021 Titan Brands...
