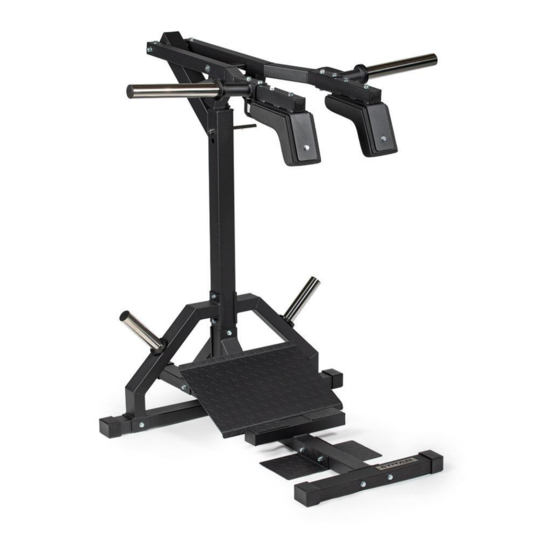

- Page 1 LEVERAGE SQUAT MACHINE LVGSQT1-LVGSQT2 400937 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
- Page 2 PARTS DIAGRAM / EXPLODED VIEW...
- Page 3 DESCRIPTION UPRIGHT FRAME PEDAL FRAME SUPPORT FRAME FRONT SUPPORT FRAME REAR SUPPORT FRAME LEFT AND RIGHT BASE FRAME BASE CONNECT FRAME RIGHT SHOULDER FRAME LEFT SHOULDER FRAME LEFT HANDLE BAR FRAME (11) RIGHT HANDLE BAR FRAME (12) STOP (13) L-SHAPE PEDAL (14) AXIS (15)
- Page 4 (27) END CAP J25*50*2 (28) END CAP 75*2.5 (29) END CAP 48*3 (30) RUBBER BUMPER 77*47.5*13 (31) RUBBER BUMPER (32) BEARING 6004ZZ (33) 1&2 PIPE SLEEVE (34) END CAP J50*75*2.5 (35) 1&2 FLAT WASHER 11*20*2 (36) FLAT WASHER 10.5*30*2.5 (37) 1&2 NUT M10 (38)
- Page 5 ASSEMBLY INSTRUCTIONS...
- Page 9 STEP 5 Fix Left &Right Handle Frame (10&11) to the Shoulder Frame (8&9), Using Hex Bolt M10*75 (43), Flat Washer Φ11*Φ20*2 (35) and Nut M10(37).
- Page 10 STEP 6 Fix the Shoulder Pad (19) to the Left &Right Handle Frame (10&11), Using Hex Bolt M10*25 (42), Hex Bolt M10*75 (43), and Flat Washer Φ11*Φ20*2 (35).
- Page 11 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages,...
- Page 12 NEED HELP? CONTACT US FIRST. 1-888-410-1503 info@titan.fitness www.titan.fitness © 2021 Titan Brands...
