Bogen Quantum S810QIPPG8U Installation Manual

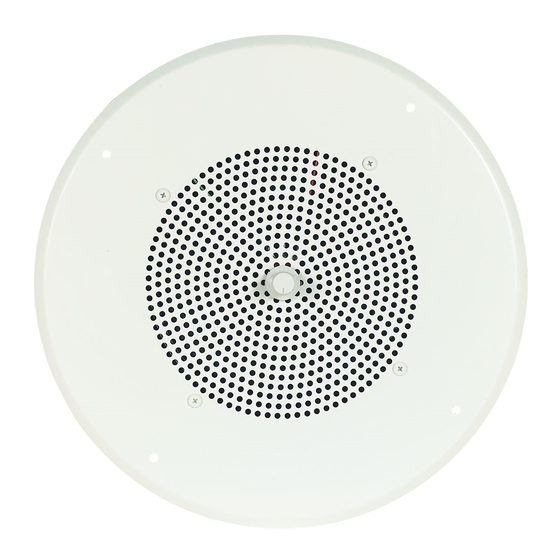

VoIP Ceiling Speaker
Model S810QIPPG8U
Installation Manual

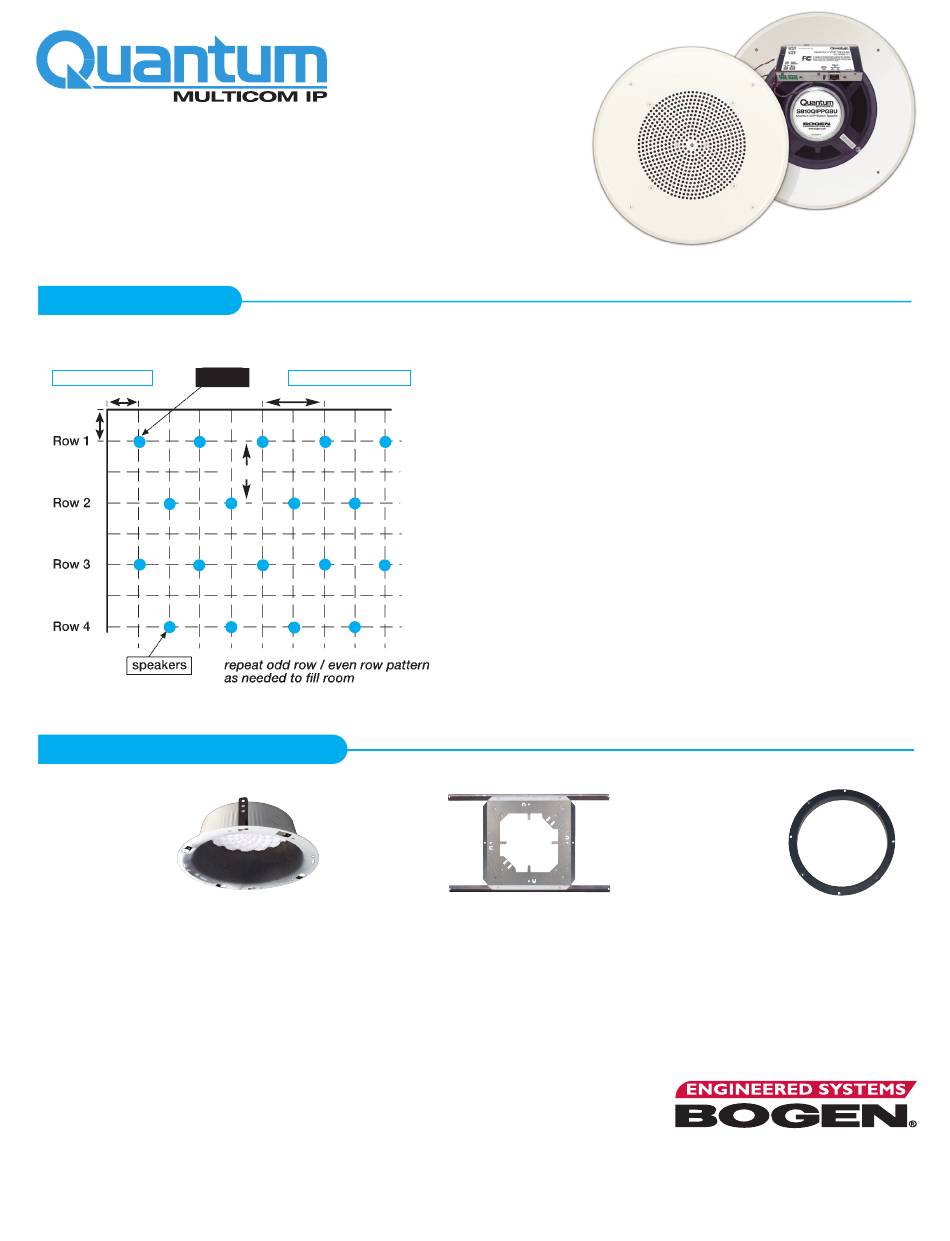

Speaker Layout
CEILING VIEW
TOP-DOWN VIEW
A = Ceiling Height START
A
A
Additional Hardware Accessories
RE84
Recessed
Enclosure
The RE84 is an optional back box for
ceiling speakers. UL Listed for use
where ceiling plenum is part of an
air handling system, the RE84 also
includes attachment tabs allowing the
enclosure to be supported from struc-
tures other than the actual ceiling grid.
B = 2 x Ceiling Height
B
B
TB8
Tile
Bridge
The TB8 supports the weight of the
speaker and recessed enclosure.
This is also the item to which the
speaker mounting screws attach. The
TB8 is required for each speaker
assembly installed.
The layout of the speakers should be planned before installation
begins. Layout starts in one corner of the room. The first speaker
should be positioned from each wall a distance approximately
equal to the ceiling height of the room.
The next speaker in row 1 should be spaced a distance approxi-
mately equal to twice the height of the ceiling. Each additional
speaker in the row should use this same spacing.
Row 2 starts at twice the ceiling height distance from row 1 and
twice the ceiling height from the wall. The other speakers in this
row are also spaced at twice the ceiling height.
Row 3 is again spaced at twice the ceiling height from the
previous row. The first speaker starting this row is positioned at
one ceiling height distance from the wall (similar to row 1).
Continue this pattern of alternating rows until the room is covered.
The spacing of the speakers can be adjusted so that the speakers
are evenly spaced in a row and aesthetically pleasing.
MR8
Mounting
Ring
The MR8 Mounting Ring is a cold-
rolled steel unit, which will mount any
of the Bogen ceiling grilles, for instal-
lations where the RE84 is not used.
www.bogenedu.com
© 2017 Bogen Communications, Inc.
All Rights Reserved.
Specifications subject to change without notice.
740-00002A 1704
