Amplified Speakers
Models AS1, ASWG1, and ASWG1DK
Installation and Use Manual

Description

Bogen's self-amplified ceiling speakers are 8-inch, cone-type loudspeakers, complete with built-in amplifier and
volume control.
Model
Unmounted Cone Speaker with 1W Amplifier and
AS1
Volume Control

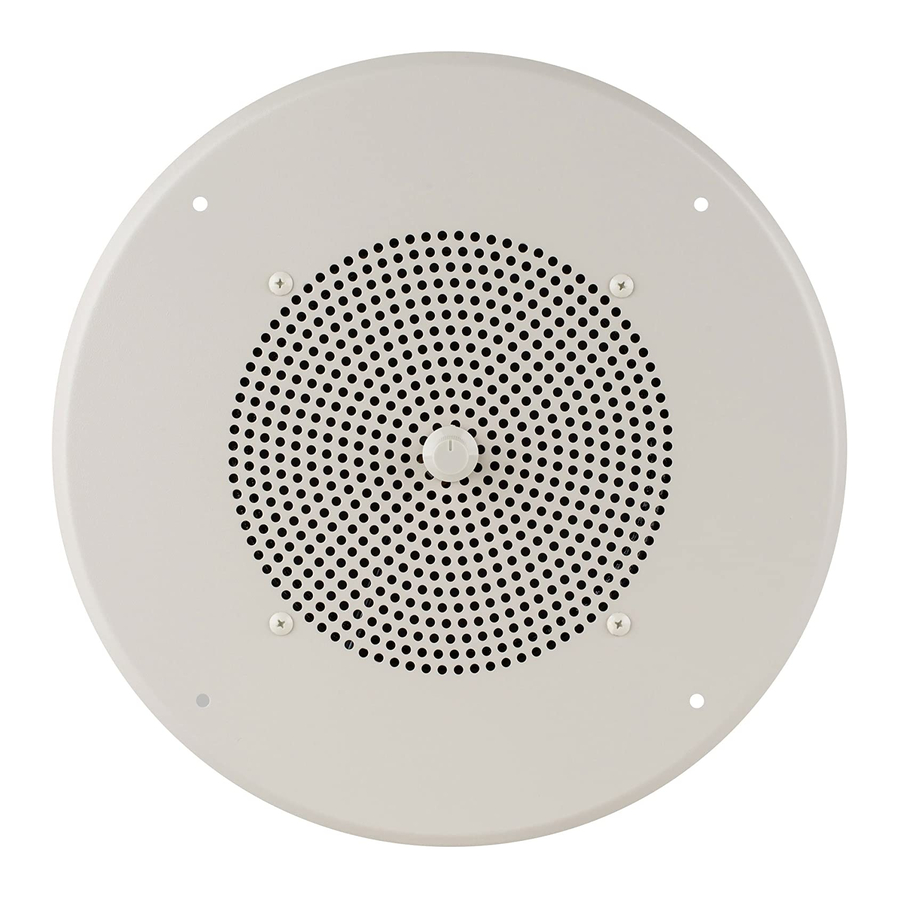

AS1 Mounted onto Steel Ceiling Grille (PG8W) with
ASWG1
Fixed, Center Volume Control Knob
AS1 Mounted onto Steel Ceiling Grille (PG8W) &
ASWG1DK
Detachable Volume Control Knob

Installation Instructions for ASWG1 and ASWG1DK

Note: Do not mount the speaker near noise generating equipment (fans, motors, etc.) and do not use where a normal
conversation cannot be conducted.

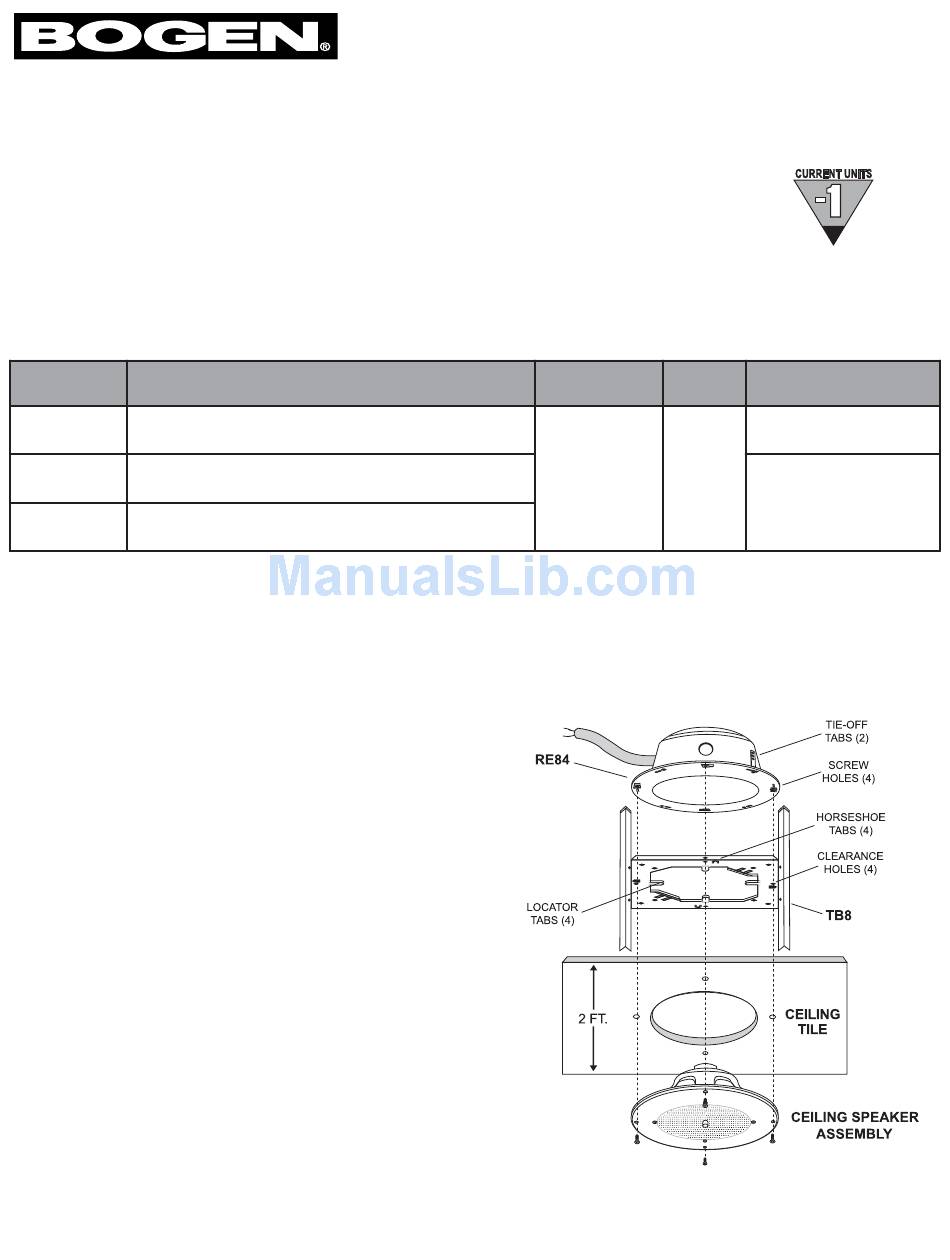

TB8 and RE84 Installation

1. Place ceiling tile with the finished side facing up over a large trash can (to provide support and save cleanup time).
2. Cut hole in the center of the ceiling tile, using the raw speak-
er as a guide.
3. Bend (4) horseshoe tabs upward on tile bridge.
4. Position the tile bridge on the unfinished side of the ceiling tile
and bend (4) locator tabs into tile opening to prevent sliding.
5. Slip tie-off tabs (2) through RE84 tie-off tab slots until they
click into place and secure customer-supplied "tie-off" wire to
tab.
6. Punch out knockout in the RE84 and install Listed metallic
enclosure entry fitting to knockout to accommodate plenum
cable or plenum whip and feed cable or whip through the
knockout.
7. Install RE84 to tile bridge by orienting horseshoe tab slots (4)
over horseshoe tabs (4) of bridge.
8. With pliers, twist horseshoe tabs (4) of tile bridge 1/2 turn,
securing enclosure to bridge.
9. Screw the Ceiling Speaker assembly to the RE84 using (4)
8-32 screws provided with the Ceiling Speaker assembly,
sandwiching the TB8 and ceiling tile in between. The screws
must go through the TB8 clearance holes as shown. (Screws
anchor into the RE84.)
Style
Power
Power
Requirements
Rating
1 CU
1W
(50 mA)
© 2004 Bogen Communications, Inc.
All rights reserved.
Specifications subject to change without notice.
54-5850-02B 0412
Mounting Accessories
Grilles: CG8A, CG8AW,
SG8W, PG8A, PG8W
TB8, RE84, MR8
