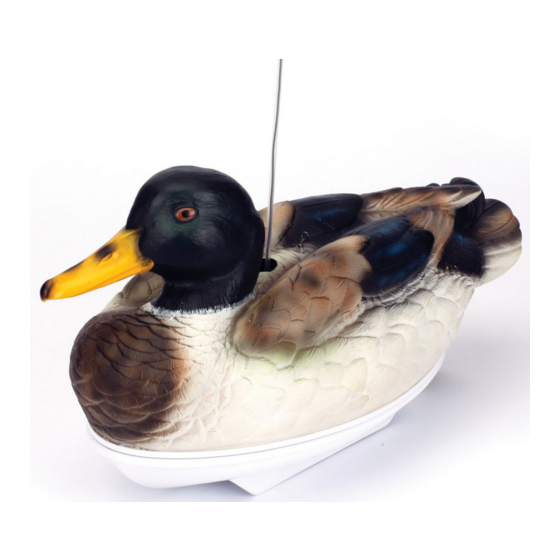

- Page 1 RC Retrieval Decoy Owners Manual PRB3650B...
-
Page 2: Table Of Contents
NOTICE WARNING: Read the ENTIRE instruction All instructions, warranties and other collateral manual to become familiar with the features of documents are subject to change at the sole the product before operating. Failure to operate discretion of Horizon Hobby, Inc. For up-to-date the product correctly can result in damage to the product literature, visit www.horizonhobby.com product, personal property and cause serious injury. -
Page 3: Introduction
Introduction ® Pro Boat RC models look as good as they perform. Our decoys, which include everything from scale sailboats to fully licensed powerboats, exceed expectations and provide years of radio control fun and excitement. Whether your passion leads you towards the pure serenity of sailing or the all-out speed of a Deep-V, Pro Boat models fit your taste, budget and lifestyle. -
Page 4: Specifications
Specifications Battery and Charger Length 13 in (330mm) Receiver 2-channel 2.4GHz DYN4113 2A Peak Charger Beam 6.5 in (165mm) Hull Material ABS Plastic DYN1455 6-cell 1200mAh Height 7.25 in (184mm) Motor 380 Brushed Motor, Ni-MH battery water-cooled Transmitter 2.4GHz Pistol 4 AA batteries (sold separately) are Grip Transmitter 20 amp Brushed... -
Page 5: Battery Charger
Battery Charger This light and compact charger (DYN4113) quickly and 3. Connect the battery pack connector to the easily charges 5–8 cell Ni-MH battery packs with an charge connector. installed EC3 ™ power connector. 4. Press the On/Off button to charge the battery. The Charging LED turns RED. -
Page 6: Transmitter Controls
Transmitter Controls Reverse Switch Battery Level Indicator Solid Red and Green: Battery voltage is good (above 4V). Solid Red: Battery voltage is critically low Allows you to change the direction of (below 4V). Replace transmitter batteries. steering (ST. REV) and throttle (TH. REV) controls. -
Page 7: Getting Started
Getting Started 1. Power on the transmitter. 4. Test the transmitter’s control 5. Launch the decoy into the water and start driving. of the decoy (out of water) as If the decoy does not go straight, adjust the 2. Connect the battery. shown. -
Page 8: Testing Your Decoy In The Water
Testing your Decoy in the Water Tip: If you are using too much steering trim on your transmitter to make the decoy drive straight, return 1. Carefully place the decoy in the water. If the decoy the trim to neutral and mechanically center the rudder. tips forward, back, or to one side, move the battery in To do this, loosen the set screw, then move the the hull for correct balance. -
Page 9: When You Are Finished
When you are Finished 1. Power off the ESC. 2. Disconnect the battery. 3. Power off the transmitter. 4. Remove the battery from the decoy. Tip: Always store the decoy open (without the hatch sealed) or moisture may allow mold and mildew to grow. -
Page 10: Checklists
Checklists Before Boating After Boating • Install fully charged batteries in your decoy and • Always power off the receiver before powering off transmitter the transmitter to maintain control of the decoy and to retain transmitter binding • Connect the decoy’s battery to the ESC •... - Page 11 Decoy will not connect Transmitter is too near decoy during Move powered transmitter a few feet from decoy, (after binding) to connecting process disconnect and reconnect battery to decoy transmitter Decoy or transmitter is too close to Move decoy and transmitter to another location large metal object, wireless source and attempt connecting again or another transmitter...
-
Page 12: Limited Warranty
Limited Warranty What this Warranty Covers Horizon Hobby, Inc. (“Horizon”) warrants to the original These terms are governed by Illinois law (without purchaser that the product purchased (the "Product") will regard to conflict of law principals). This warranty gives be free from defects in materials and workmanship at you specific legal rights, and you may also have other the date of purchase. -
Page 13: Parts Contact Information
Warranty Requirements You must include this request with your item submitted for service. Non-warranty service estimates will be billed For Warranty consideration, you must include a minimum of ½ hour of labor. In addition you will be your original sales receipt verifying the proof-of- billed for return freight. -
Page 14: Fcc Information
FCC Information This device complies with part 15 of the FCC rules. CAUTION: Changes or modifications not Operation is subject to the following two conditions: expressly approved by the party responsible for (1) This device may not cause harmful interference, and compliance could void the user’s authority to (2) This device must accept any interference received, operate the equipment. -
Page 15: Identification Of Components
Identification of Components Instruction Manual... -
Page 16: Replacement Parts
Replacement Parts PRB3650B Retrieval Decoy DYN4113 2A Peak Charger ECX9010 Transmitter ECX9012 ESC/Receiver Unit PRB3655 Drive Shaft PRB3656 Drive System D PRB3010 Motor PRB3657 Motor Coupler DYN3915 7.5-Gram Servo G PRB3315 Antenna Mount 6-cell 1200mAh H DYN1455 Ni-MH battery PRB4012... -
Page 17: Notes
Notes Instruction Manual... - Page 18 35973 Created: 10/2012 ©2012 Horizon Hobby, Inc. Pro Boat, EC3 and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, Inc.
