Advantech USC-130 Series Startup Manual

USC-130 Series

Startup Manual

Appearance

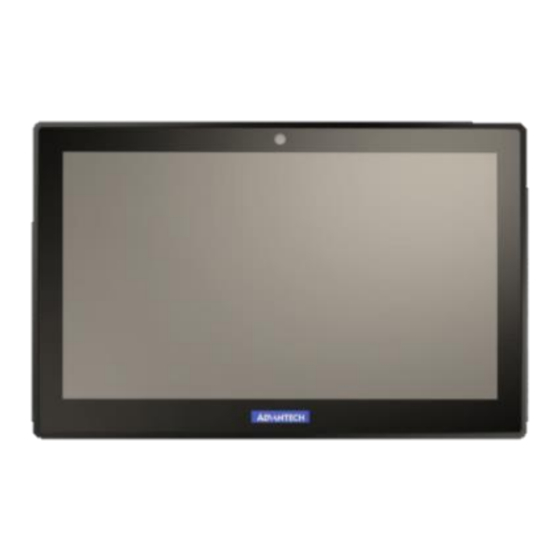

Front View

Rear View

*Please use only VESA compatible mounting

– detailed table stand & wall mount datasheet available

to download at Advantech's website.

Power On Computer

1. Connect an adaptor with input voltage rated 12V/3A for all USC-130 series.

2. Be sure to always handle power cords by holding plug ends only. Please refer to

I/O ports section above to find the DC/AC inlet and power switch.

3. Be sure screen light up and running process

I/O Appearance

Camera embedded (Optional )

RFID Embedded

(optional)

Touch Panel &

LCD Display

Cable Cover

Table of Contents

Do you have a question about the USC-130 Series and is the answer not in the manual?

Page 1 Power On Computer Power On Computer 1. Connect an adaptor with input voltage rated 12V/3A for all USC-130 series. 2. Be sure to always handle power cords by holding plug ends only. Please refer to I/O ports section above to find the DC/AC inlet and power switch.
Page 2 Safety Instructions Please read these safety instructions carefully and follow these instructions for use. Repair of the device may only be carried out by trained service personnel. Advantech recommends that a service contract be obtained with Advantech service and that all repairs also be carried out by them;...
Page 3 only with same or equivalent type recommended by the manufacturer. Discard used VESA Mount Dimension batteries ac- cording to the manufacturer’s instructions. VESA mount dimension: 75mm x 75mm Screw size: M4*8L R/S D=9 Mechanical Drawing & Opening Drawing...
