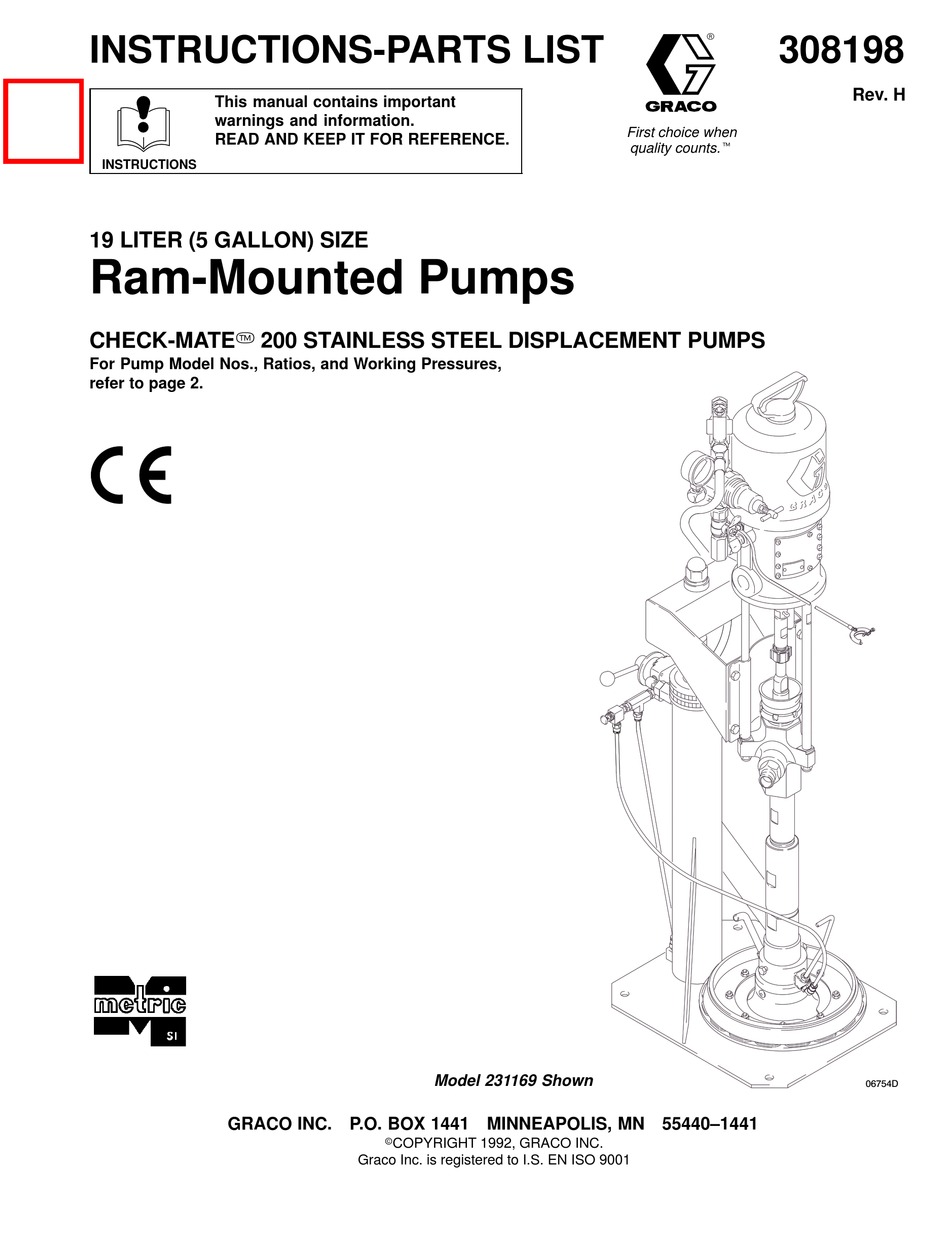

INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP IT FOR REFERENCE.
INSTRUCTIONS
19 LITER (5 GALLON) SIZE
Ram-Mounted Pumps
CHECK-MATET 200 STAINLESS STEEL DISPLACEMENT PUMPS
For Pump Model Nos., Ratios, and Working Pressures,
refer to page 2.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
Model 231169 Shown
eCOPYRIGHT 1992, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
308198
First choice when
quality counts.t
Rev. H
06754D
Advertisement
Related Manuals for Graco 231169
Summary of Contents for Graco 231169
- Page 1 CHECK-MATET 200 STAINLESS STEEL DISPLACEMENT PUMPS For Pump Model Nos., Ratios, and Working Pressures, refer to page 2. Model 231169 Shown 06754D GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441 eCOPYRIGHT 1992, GRACO INC. Graco Inc. is registered to I.S. EN ISO 9001...
- Page 2 ........Toll-Free Graco Phone Number .
- Page 3 D This equipment is for professional use only. D Read all instruction manuals, tags, and labels before operating the equipment. D Use the equipment only for its intended purpose. If you are not sure, call your Graco distributor. D Do not alter or modify this equipment.
- Page 4 WARNING INJECTION HAZARD Spray from the spray gun/dispense valve, leaks or ruptured components can inject fluid into your body and cause extremely serious injury, including the need for amputation. Fluid splashed in the eyes or on the skin can also cause serious injury. D Fluid injected into the skin might look like just a cut, but it is a serious injury.
- Page 5 WARNING FIRE AND EXPLOSION HAZARD Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and result in a fire or explosion and serious injury. D Ground the equipment and the object being sprayed. Refer to Grounding on page 7. D If there is any static sparking or you feel an electric shock while using this equipment, stop spray- ing/dispensing immediately.
- Page 6 Notes 308198...
- Page 7 Check the electrical resistance of your air and fluid hoses at least once NOTE: Always use Genuine Graco Parts and Acces- a week. If the total resistance to ground exceeds sories, available from your Graco distributor. Refer to 29 megohms, replace the hose immediately.
- Page 8 Setup D The air manifold (D) has a swivel air inlet. It Components and Accessories (continued) mounts to the ram, and provides ports for connect- Refer to Fig. 2. ing lines to air-powered accessories. D An air line filter (J) removes harmful dirt and WARNING moisture from the compressed air supply.
- Page 9 Setup TYPICAL SETUP Pump 19 Liter (5 Gallon) Air-Powered Ram Wiper Plate Air Manifold Pump Runaway Valve (location shown) MAIN AIR LINE Air Line Lubricator (location shown) G Pump Bleed-Type Air Valve (required, for pump) Pump Air Regulator Air Line Filter Bleed-Type Master Air Valve (for accessories) Fluid Drain Valve (required) M Fluid Pressure Regulator...
- Page 10 Setup Wiper Plate Shield Kit 223689 To use, place one shield on the surface of the fluid before the wiper plate enters the pail. The shield will Wiper Plate Shield Kit 223689 is available to cover the adhere to the plate as the plate moves downward, fluid side of the 19 liter (5 gallon) wiper plate, to keep it preventing fluid from directly contacting the plate.
- Page 11 Operation Pressure Relief Procedure Starting and Adjusting the Ram 1. Refer to Fig. 3. Close all air regulators and air WARNING valves. INJECTION HAZARD The system pressure must be manually 2. Open the red-handled main air bleed valve (V) and relieved to prevent the system from set the ram air regulator (T) to 2.8 bar (40 psi).
- Page 12 Operation Starting and Adjusting the Pump 2. Before raising the wiper plate, locate the pushbut- ton on the air release valve (X). 1. Be sure the pump air regulator (H) is closed. Then set the ram air regulator (T) to about 2.1 bar (30 3.
- Page 13 Operation Pump Pump Air Regulator Air Release Valve Ram Air Regulator JJ Pump Bleeder Valve Wiper Plate Ram Director Valve KK Wiper Plate Vent Handle G Pump Air Bleed Valve Red-Handled Main Air Bleed Valve LL Vent Hole (required, for pump) JJ (not in view) 06756D Fig.
- Page 14 Parts Part No. 231168, Series B 23:1 Ratio Monark Pump with Check-Mate 200 Stainless Steel Displacement Pump 11 (Ref) 6 (Ref) 06758D 308198...
- Page 15 Parts Part No. 231168, Series B 23:1 Ratio Monark Pump with Check-Mate 200 Stainless Steel Displacement Pump Ref. Ref. Part No. Description Qty. Part No. Description Qty. 222839 23:1 RATIO MONARK PUMP 187357 ELBOW, street, 90 See 308200 for parts 1/4 npt (m x f) 222909 WIPER PLATE ASSY...
- Page 16 Parts Part No. 231169, Series B 46:1 Ratio President Pump with Check-Mate 200 Stainless Steel Displacement Pump 11 (Ref) 6b (Ref) 6a (Ref) 06755D 308198...
- Page 17 Parts Part No. 231169, Series B 46:1 Ratio President Pump with Check-Mate 200 Stainless Steel Displacement Pump Ref. Ref. Part No. Description Qty. Part No. Description Qty. 222907 46:1 RATIO PRESIDENT PUMP 187357 ELBOW, street, 90 See 308200 for parts...
- Page 18 222839 23:1 285 bar, 29 MPa 12 bar, 1.2 MPa 12 bar, 1.2 MPa (4140 psi) (180 psi) (180 psi) 231169 Presidentr 222907 46:1 317 bar, 32.0 7 bar, 0.7 MPa 10 bar, 1.0 MPa MPa (4600 psi) (100 psi)
- Page 19 546 mm 79 kg (63.23 in.) (47.64 in.) (11 in.) (14 in.) (14 in.) (17 in.) (21.5 in.) (174 lb) 231169 1683 mm 1287 mm 279 mm 356 mm 356 mm 432 mm 546 mm 81 kg (66.26 in.) (50.67 in.) (11 in.)
- Page 20 Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
