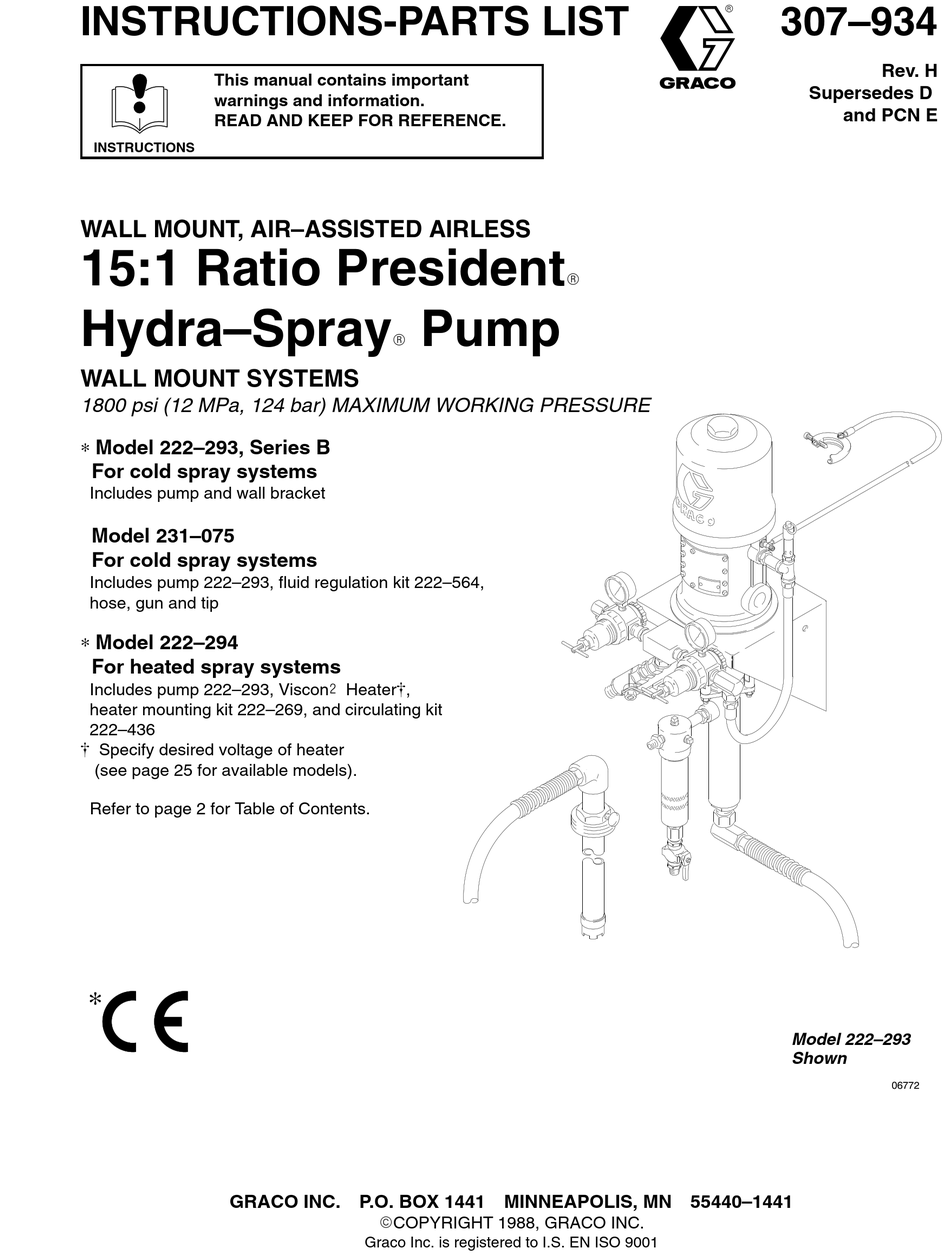

INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS
WALL MOUNT, AIR–ASSISTED AIRLESS
15:1 Ratio President
Hydra–Spray Pump
WALL MOUNT SYSTEMS
1800 psi (12 MPa, 124 bar) MAXIMUM WORKING PRESSURE
∗ Model 222–293, Series B
For cold spray systems
Includes pump and wall bracket
Model 231–075
For cold spray systems
Includes pump 222–293, fluid regulation kit 222–564,
hose, gun and tip
∗ Model 222–294
For heated spray systems
Includes pump 222–293, Viscon Heater ,
heater mounting kit 222–269, and circulating kit
222–436
Specify desired voltage of heater
(see page 25 for available models).
Refer to page 2 for Table of Contents.
∗
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
COPYRIGHT 1988, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
307–934
Rev. H
Supersedes D
and PCN E
Model 222–293
Shown
