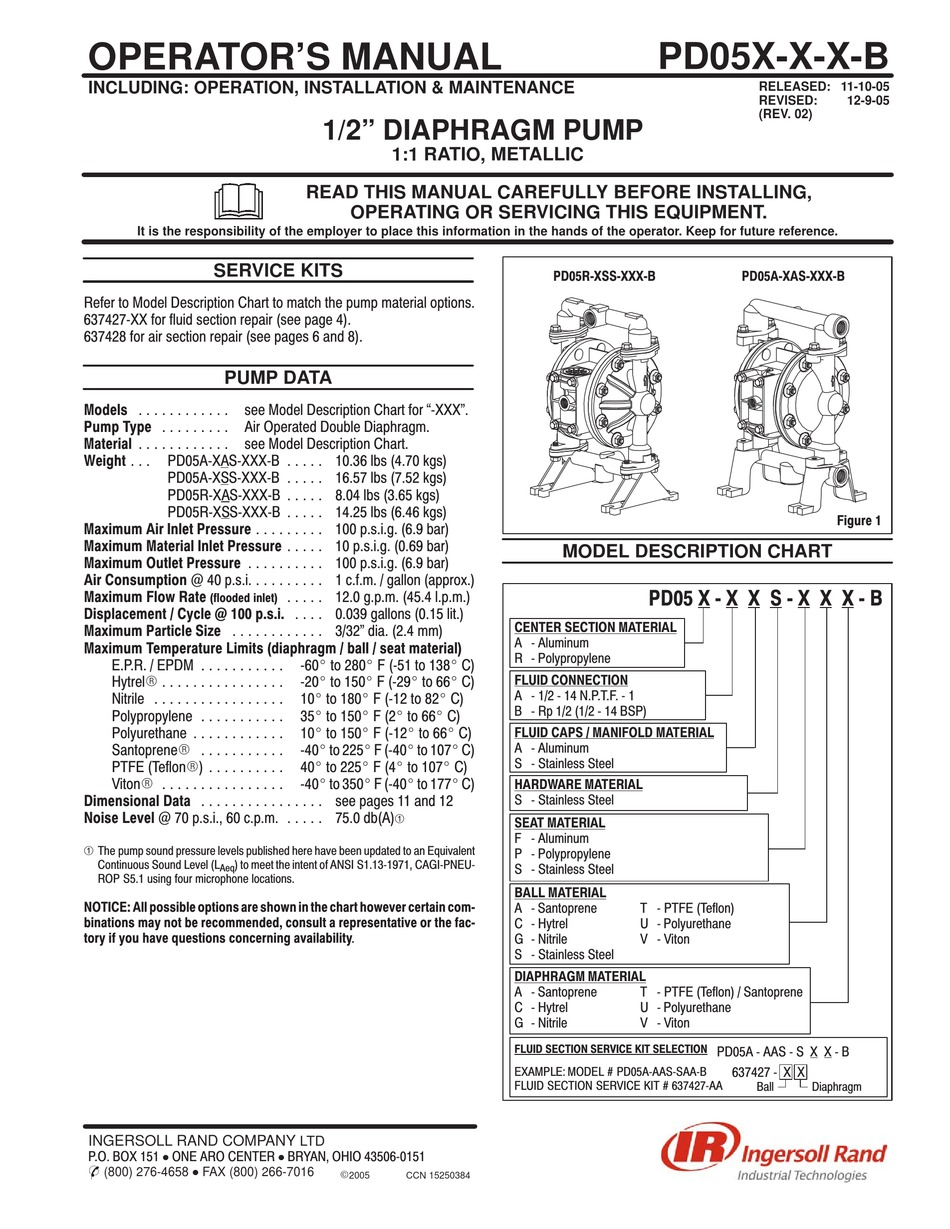

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material options.
637427 XX for fluid section repair (see page 4).
637428 for air section repair (see pages 6 and 8).
PUMP DATA
Models . . . . . . . . . . . . see Model Description Chart for  XXX".
Pump Type . . . . . . . . . Air Operated Double Diaphragm.
Material . . . . . . . . . . . . see Model Description Chart.
Weight . . . PD05A XAS XXX B
PD05A XSS XXX B
PD05R XAS XXX B
PD05R XSS XXX B
Maximum Air Inlet Pressure . . . . . . . . .
Maximum Material Inlet Pressure
Maximum Outlet Pressure . . . . . . . . . .
Air Consumption @ 40 p.s.i. . . . . . . . . .
Maximum Flow Rate
(flooded inlet)
Displacement / Cycle @ 100 p.s.i.
Maximum Particle Size . . . . . . . . . . . .
Maximum Temperature Limits (diaphragm / ball / seat material)
E.P.R. / EPDM . . . . . . . . . . .
HytrelR . . . . . . . . . . . . . . . .
Nitrile . . . . . . . . . . . . . . . . .
Polypropylene . . . . . . . . . . .
Polyurethane . . . . . . . . . . . .
SantopreneR . . . . . . . . . . .
PTFE (TeflonR) . . . . . . . . . .
VitonR . . . . . . . . . . . . . . . .
Dimensional Data . . . . . . . . . . . . . . . .
Noise Level @ 70 p.s.i., 60 c.p.m.
À The pump sound pressure levels published here have been updated to an Equivalent
Continuous Sound Level (L ) to meet the intent of ANSI S1.13 1971, CAGI PNEU
Aeq
ROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart however certain com
binations may not be recommended, consult a representative or the fac
tory if you have questions concerning availability.
INGERSOLL RAND COMPANY
P.O. BOX 151 ONE ARO CENTER
D
&
D
(800) 276-4658 FAX (800) 266-7016
1/2" DIAPHRAGM PUMP
1:1 RATIO, METALLIC
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
. . . . . 10.36 lbs (4.70 kgs)
. . . . . 16.57 lbs (7.52 kgs)
. . . . . 8.04 lbs (3.65 kgs)
. . . . . 14.25 lbs (6.46 kgs)
100 p.s.i.g. (6.9 bar)
. . . . . 10 p.s.i.g. (0.69 bar)
100 p.s.i.g. (6.9 bar)
1 c.f.m. / gallon (approx.)
. . . . . 12.0 g.p.m. (45.4 l.p.m.)
. . . . 0.039 gallons (0.15 lit.)
3/32" dia. (2.4 mm)
60_ to 280_ F ( 51 to 138_ C)
20_ to 150_ F ( 29_ to 66_ C)
10_ to 180_ F ( 12 to 82_ C)
35_ to 150_ F (2_ to 66_ C)
10_ to 150_ F ( 12_ to 66_ C)
40_ to 225_ F ( 40_ to 107_ C)
40_ to 225_ F (4_ to 107_ C)
40_ to 350_ F ( 40_ to 177_ C)
see pages 11 and 12
. . . . . 75.0 db(A)
À
LTD
BRYAN, OHIO 43506 0151
D
E
2005 CCN 15250384
PD05X-X-X-B
PD05R XSS XXX B
MODEL DESCRIPTION CHART
PD05 X X X S X X X B
CENTER SECTION MATERIAL
A Aluminum
R Polypropylene
FLUID CONNECTION
A 1/2 14 N.P.T.F. 1
B Rp 1/2 (1/2 14 BSP)
FLUID CAPS / MANIFOLD MATERIAL
A Aluminum
S Stainless Steel
HARDWARE MATERIAL
S Stainless Steel
SEAT MATERIAL
F Aluminum
P Polypropylene
S Stainless Steel
BALL MATERIAL
A Santoprene T PTFE (Teflon)
C Hytrel U Polyurethane
G Nitrile V Viton
S Stainless Steel
DIAPHRAGM MATERIAL
A Santoprene T PTFE (Teflon) / Santoprene
C Hytrel U Polyurethane
G Nitrile V Viton
FLUID SECTION SERVICE KIT SELECTION
EXAMPLE: MODEL # PD05A AAS SAA B
FLUID SECTION SERVICE KIT # 637427 AA
RELEASED: 11-10-05
REVISED: 12-9-05
(REV. 02)
PD05A XAS XXX B
Figure 1
PD05A AAS S X X B
637427 X X
Ball Diaphragm
