CE820 / CE920 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America...
Page 6
CE820 / CE920 User Manual * Features may have been added to the HDBaseT 2.0 KVM Extender since this manual was published. Please visit our website to download the most up-to- date version of the manual.
About this Manual This User Manual is provided to help you get the most from your CE820/ CE920 HDBaseT 2.0 KVM Extender. It covers all aspects of installation, configuration, and operation. An overview of the information found in the manual is provided below.
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International...
Setup is as easy as can be – simply connect the computer; run the Cat 5e/6/6a or ATEN 2L-2910 cable up to 100 meters to the remote unit of the CE820/CE920 and then plug the remote console into the remote unit of CE820/...
HDCP Compatible (for CE920) Long distance with superior video quality HDBaseT™ Standard mode up to 4K @ 100 m (Cat 6/6a or ATEN 2L- 2910 Cat 6 cable) HDBaseT™ Long-reach mode up to 1080P @ 150 m ...
Chapter 1. Introduction Requirements Consoles An HDMI monitor (CE820) or DisplayPort monitor (CE920) capable of the highest resolution you will be using on any computer in the installation. A USB keyboard A USB mouse Computers The following equipment must be installed on each computer that is to be connected to the system: ...
Page 14
1.8 m Local unit (CE920L) to remote unit (CE920R) 100 m* Remote Unit (CE920R) to monitor 1.8 m Note: The maximum transmission distance using a Cat 5e/6/6a or ATEN 2L-2910 cable is 100m and 150m when Long Reach Mode is enabled...

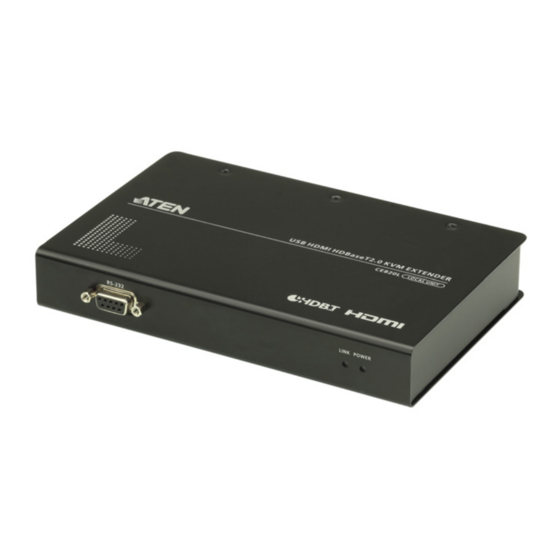

LED Display, page 15. Power Jack Receives the supplied power adapter. HDBaseT Out Receives a Cat 5e/6/6a cable or an ATEN 2L-2910 cable Port which connects to the CE820R unit. Ethernet Port Receives a Cat 5e/6/6a cable or an ATEN 2L-2910 cable which connects to the local computer.
LED Display, page 15. Power Jack Receives the supplied power adapter. HDBaseT In Port Receives a Cat 5e/6/6a cable or an ATEN 2L-2910 cable which connects to the CE820L unit. Ethernet Port Receives a Cat 5e/6/6a cable or an ATEN 2L-2910 cable which connects to a network switch.
LED Display, page 15. Power Jack Receives the supplied power adapter. HDBaseT Out Receives a Cat 5e/6/6a cable or an ATEN 2L-2910 cable Port which connects to the CE920R unit. Ethernet Port Receives a Cat 5e/6/6a cable or an ATEN 2L-2910 cable which connects to the local computer.
LED Display, page 15. Power Jack Receives the supplied power adapter. HDBaseT In Port Receives a Cat 5e/6/6a cable or an ATEN 2L-2910 cable which connects to the CE920L unit. Ethernet Port Receives a Cat 5e/6/6a cable or an ATEN 2L-2910 cable which connects to a network switch.
Stacking and Rack Mounting Stacking The CE820 / CE920 can be placed on any appropriate level surface that can safely support its weight plus the weight of its attached cables. To place or stack the CE820 / CE920, remove the backing material from the bottom of the...
CE820 / CE920 User Manual Installation Grounding To prevent damage to your installation it is important that all devices are properly grounded. 1. Use a grounding wire to ground both units by connecting one end of the wire to the grounding terminal, and the other end of the wire to a suitable grounded object.
In Port on the CE820L. Plug the other end of the cable into the HDMI port on the local computer. 4. Plug one end of a Cat 5e/6/6a or ATEN 2L-2910 cable into the HDBaseT Out Port on the CE820L, and the other end into the HDBaseT In Port on the CE820R.
Page 22
CE820 / CE920 User Manual 7. Plug the USB devices (mouse, keyboard, peripherals, etc.), into their respective USB Type-A ports on the CE820R. 8. Plug the microphone and speakers, into their respective audio ports on the CE820R. 9. To gain access to LAN or WAN, use an Ethernet cable to connect the Ethernet Port of the CE820L to the computer, and use another Ethernet cable to connect the Ethernet Port of the CE820R to an Ethernet switch.
Chapter 2. Hardware Setup CE920 Before you proceed with the setup, make sure that all the equipment to be connected is powered off. Follow the installation diagram and instruction below to install the CE920 unit. CE920L Rear View Local PC Internet/ CE920R Rear View 1.
Page 24
11. To use the Wake-up PC Pushbutton, use an RS-232 serial cable to connect the RS-232 Serial Port on the CE920L to the local computer. 12. To bypass RS-232 serial data through the CE920 units, connect the RS-232 Serial Port on the CE920L to the local computer using an RS-232 serial cable, as illustrated in step 11, and then connect a hardware/software controller to the RS-232 Serial Port on the CE920R.
Flashes orange The video display is normal but not secured with HDCP. There is no video activity. Note: The Video Out LED is only available on the remote unit of CE820/CE920. Long Reach Mode The Long Reach Mode switch on the rear of the CE820/CE920 provides long-reach connectivity up to 150 m, and resolutions up to 1080p.
Page 26
CE820 / CE920 User Manual This Page Intentionally Left Blank...
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. This product is for indoor use only. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result.
Page 28
CE820 / CE920 User Manual If the following conditions occur, unplug the device from the wall outlet and bring it to qualified service personnel for repair. The power cord or plug has become damaged or frayed. Liquid has been spilled into the device.
Appendix Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack.
CE820 / CE920 User Manual Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com For telephone support, see Telephone Support, page iii. North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation...
Wakeup button 1 x Pushbutton Video Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6) 1080P@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) Power DC 5 V:2.87 W:13 BTU...
Page 32
Wakeup button 1 x Pushbutton Video Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a or ATEN 2L-2910 Cat6) 1080P@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) Up to 4K x 2K @ 30Hz for DisplayPort v1.1 Power DC 5V:3.99 W:19 BTU...
What is covered by the Limited Hardware Warranty ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
