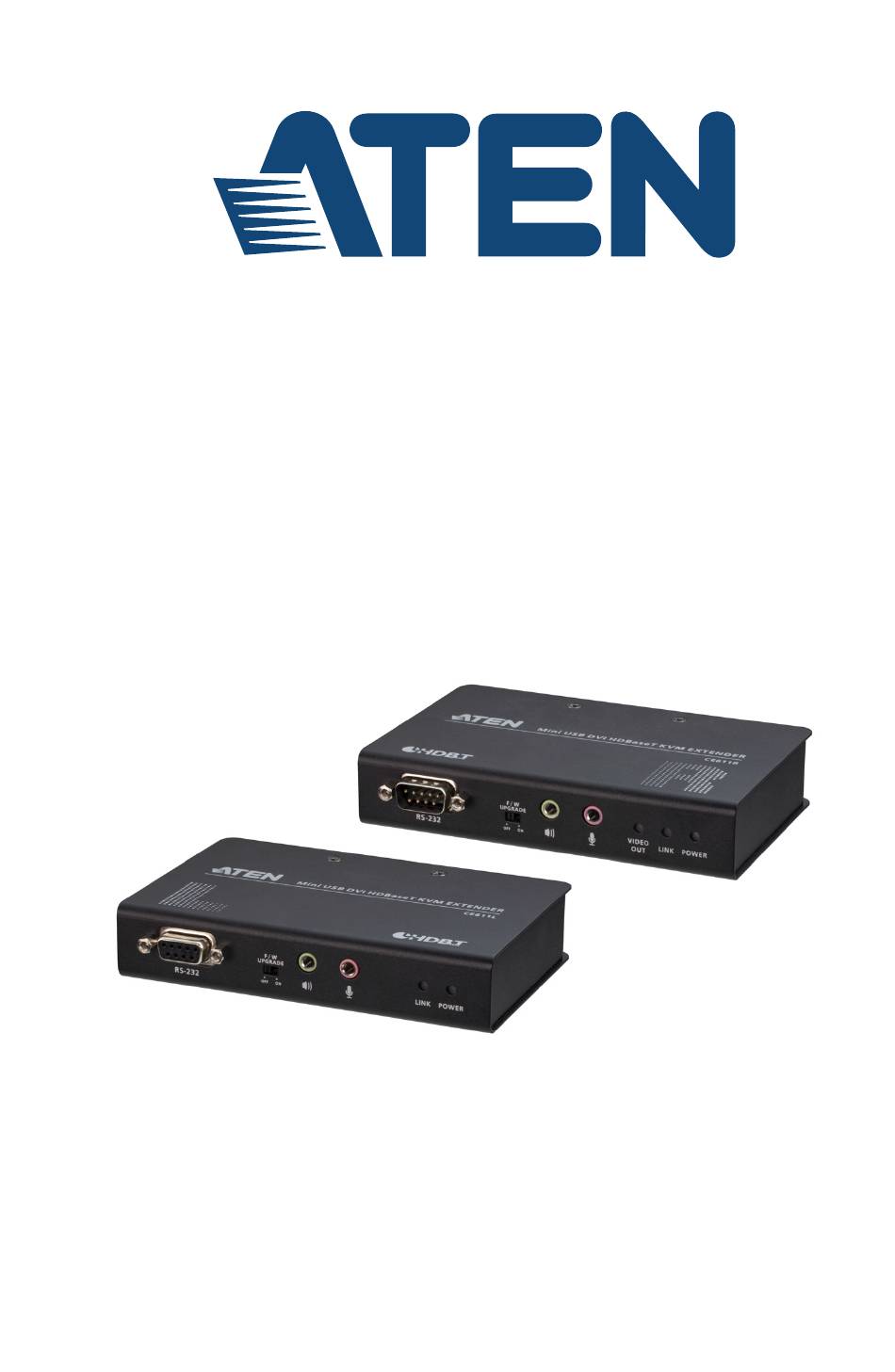

- Page 1 Mini USB DVI HDBaseT™ KVM Extender CE611 User Manual www.aten.com...
-
Page 2: Emc Information
CE611 User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: User Information
CE611 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988... -
Page 4: Package Contents
Copyright © 2019 ATEN® International Co., Ltd. Manual Date: 2019-03-25 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners. -
Page 5: Table Of Contents
CE611 User Manual Contents EMC Information ..........ii RoHS. -
Page 6: About This Manual
CE611 User Manual About this Manual This User Manual is provided to help you get the most from your CE611 Mini USB DVI HDBaseT™ KVM Extender. It covers all aspects of installation, configuration, and operation. An overview of the information found in the manual is provided below. -
Page 7: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International... - Page 8 CE611 User Manual This Page Intentionally Left Blank viii...
-
Page 9: Introduction

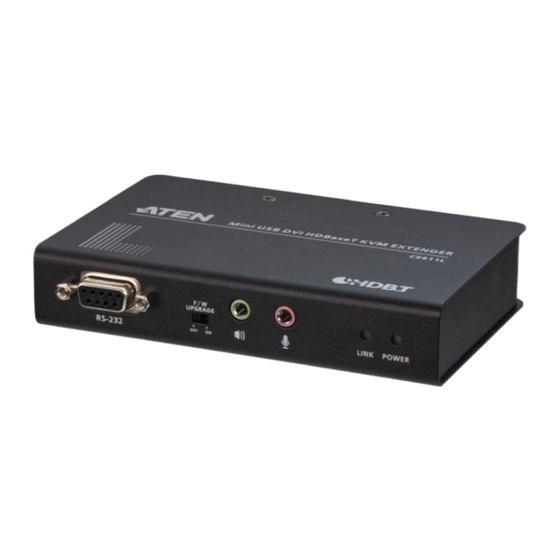

Overview The CE611 Mini USB DVI HDBaseT KVM Extender can extend DVI, RS-232 serial, and USB 2.0 signals up to 100 meters using a single Cat 5e/6 or ATEN 2L-2910 cable and HDBaseT™ technology. The Mini USB DVI HDBaseT KVM Extender is equipped with USB 2.0 connectors which allow you to extend signal transmission of USB 2.0 devices. -
Page 10: Features
Features Supports HDBaseT™ technology Extends DVI video, audio, USB, and RS-232 signals via a single Cat 6 / 6a or an ATEN 2L-2910 Cat 6 cable Enhanced bit error detection and correction to resist signal interference during high-quality video transmission Status detection and LED indication for HDBaseT™... -
Page 11: Requirements
ATEN HDBaseT™ Installation Guide. Maximum Cable Distances Connection Distance Computer to CE611L 1.8 m CE611L to CE611R 100 m* CE611R to the DVI-enabled monitor 10 m Note: The maximum transmission distance using a Cat 5e/6 or ATEN 2L-2910 cable is 100m. - Page 12 RS-232 Serial Port Receives an RS-232 serial cable which connects to a local computer. Firmware Upgrade This function is reserved for ATEN Technical Support. If you Switch would like upgrade the firmware, please contact your dealer. Audio Out Connects to a local computer using a speaker cable.
-
Page 13: Ce611R
Receives an RS-232 serial cable which connects to a hardware controller or a PC installed with a software controller. Firmware Upgrade This function is reserved for ATEN Technical Support. If you Switch would like upgrade the firmware, please contact your dealer. - Page 14 CE611 User Manual This Page Intentionally Left Blank...
-
Page 15: Hardware Setup
You must unplug the power cords of any computers that have the Keyboard Power On function. Installation Make sure that all equipment to be connected is powered off, and then follow the steps below to safely install the CE611 units. CE611L CE611L (Front) -
Page 16: Rack Mounting
Use a Cat 5e cable to display a video of 1080p @60Hz up to 100 m. Use a Cat 6 or ATEN 2L-2910 cable to display video of 1920 x 1200 / 1600 x 1200 @ 60Hz up to 100 m. -
Page 17: Appendix
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. This product is for indoor use only Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 18 CE611 User Manual If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
-
Page 19: Mounting
Appendix Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack. -
Page 20: Technical Support
CE611 User Manual Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com For telephone support, see Telephone Support, page iii. North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates Telephone Support... -
Page 21: Specifications
Up to 1600 x 1200 & 1920 x 1200@90m (Cat 5e) Up to 1600 x 1200 & 1920 x 1200@100m (Cat 6 / 6a or ATEN 2L-2910 Cat 6) Up to 1920 x 1080@100m (Cat 5e / 6 / 6a) Power Consumption DC5V: 2.494W... -
Page 22: Limited Warranty
What is covered by the Limited Hardware Warranty ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
