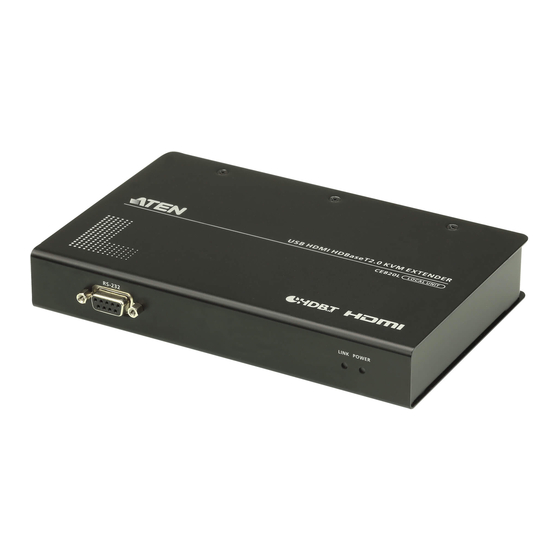

- Page 1 USB HDMI HDBaseT 2.0 KVM Extender CE820 User Manual www.aten.com...
-
Page 2: Emc Information
CE820 User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: User Information
Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988 1-949-428-1111 User Notice All information, documentation, and specifications contained in this manual are subject to change without prior notification by the manufacturer. The manufacturer makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties as to merchantability or fitness for any particular purpose. -
Page 4: Package Contents
CE820 User Manual Package Contents CE820 Package Contents 1 CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit) 1 CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit) 1 HDMI KVM Cable Set 2 Power Adapters 2 Mounting Kits 8 Foot Pads... -
Page 5: Table Of Contents
Components ..........4 CE820L (Local Unit) Front and Rear View ..... . 4 CE820R (Remote Unit) Front and Rear View . - Page 6 CE820 User Manual Technical Support......... . . 18 International .
-
Page 7: About This Manual
CE820 User Manual About this Manual This User Manual is provided to help you get the most from your system. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below. Chapter 1, Introduction, introduces you to the CE820 system. -
Page 8: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 9: Chapter 1 Introduction
Setup is as easy as can be – simply connect the computer; run the Cat 5e/6/6a ATEN 2L-2910 cable up to 100 meters to the Remote Unit; and plug the remote console into the Remote Unit. -
Page 10: Features
HDMI (3D, Deep Color, 1080P, 4K); HDCP 2.2 Compatible Long distance with superior video quality HDBaseT™ Standard mode up to 4K @ 100 m (Cat 6/6a/ATEN 2L- 2910 Cat 6 cable) HDBaseT™ Long-reach mode up to 1080P @ 150 m Long Reach mode switch –... -
Page 11: Requirements
HDMI KVM Cable that is provided with this package. For more information about using the correct Cat 5e/6/6a/ATEN 2L-2910 cable and setting up HDBaseT devices, you can download the ATEN HDBaseT Installation Guide: http://assets.aten.com/resource/epublication/ATEN_HDBaseT_InstallationGuide.pdf... -
Page 12: Components
Connect an RS-232 cable from the target computer to this port. LEDs The CE820L has two LEDs to indicate operating status Link and Power (see page 13 for more information). Power Jack The cable from the power adapter connects here. -
Page 13: Ce820R (Remote Unit) Front And Rear View
Power Jack The cable from the power adapter connects here. HDBaseT In Port The Cat 5e/6/6a/ATEN 2L-2910 cable that connects the Local and Remote Units plugs in here. Ethernet Port Connect a Cat 5e/6/6a/ATEN 2L-2910 cable from an Ethernet switch to this port to gain network access. - Page 14 HDMI signals up to 150m, at 1080p. For details, see Switch Long Reach Mode, page 14. Firmware This function is reserved for ATEN Technical Support. If you Upgrade Switch would like to do a firmware upgrade yourself, please contact your dealer.
-
Page 15: Chapter 2. Hardware Setup
Chapter 2 Hardware Setup 1. Important safety information regarding the placement of this device is provided on page 15. Please review it before proceeding. 2. Make sure that the power to all devices connected to the installation are turned off. You must unplug the power cords of any computers that have the Keyboard Power On function. -
Page 16: Rack Mounting
For convenience and flexibility, the CE820 can be mounted on system racks. To rack mount a unit do the following: 1. Using the screws provided in the Mounting Kit, screw the mounting bracket into the top or bottom of the unit as show in the diagram below: CE820L CE820L CE820R CE820R... -
Page 17: Installation
Chapter 2. Hardware Setup Installation Grounding To prevent damage to your installation it is important that all devices are properly grounded. 1. Use a grounding wire to ground both units by connecting one end of the wire to the grounding terminal, and the other end of the wire to a suitable grounded object. -
Page 18: Setting Up
2. Connect the USB connector of the supplied KVM cable set to the USB Type B Port on the CE820L. Plug the other end of the cable into a USB Type A port on the local computer. - Page 19 Chapter 2. Hardware Setup 13. If you want to extend the video up to 150 m with 1080p resolution, put the LONG REACH switch to ON.
-
Page 20: Installation Diagram
CE820 User Manual Installation Diagram CE820L Rear View Local PC Internet/ CE820R Rear View... -
Page 21: Chapter 3 Operation
Chapter 3 Operation Overview The Operation chapter describes how the LED indicators work and how to use HDBaseT Long Reach Mode. LED Display The CE820 local and remote Units have front panel LEDs to indicate their operating status, as shown in the tables, following: Indication Power Lights (Green) steadily to indicate that the system is receiving... -
Page 22: Long Reach Mode
CE820 User Manual Long Reach Mode The Long Reach mode switch on the rear of the CE820 provides long-reach connectivity – up to 150 m – for resolutions up to 1080p. To use this feature, on the rear of the local or remote unit, set the Long Reach switch to ON. LONG REACH UPGRADE... -
Page 23: Appendix
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. This product is for indoor use only. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 24 CE820 User Manual If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
-
Page 25: Mounting
Appendix Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack. -
Page 26: Technical Support
CE820 User Manual Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com For telephone support, Telephone Support, page iii North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates Telephone Support... -
Page 27: Specifications
Wakeup button 1 x Pushbutton Video Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6) 1080P@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) Power DC 5 V;... -
Page 28: Limited Warranty
ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
