- Page 1 XTLtouch™ International Series Installation Guide...
-
Page 3: Table Of Contents
TABLE OF CONTENTS About the XTLtouchINT ..1 Add a Custom Dealer Logo ..13 Add Dealer Info ......... 13 Install the XTLtouchINT ..2 Accessories ......13 Wall Mount (XTLtouch) ....2 Transformer ......... 13 Desk Stand (XTLtouchUSB) ..2 Batteries ..........13 Wall Mount ......3 Certifications ......14 Mount the Backplate ...... -
Page 4: About The Xtltouchint

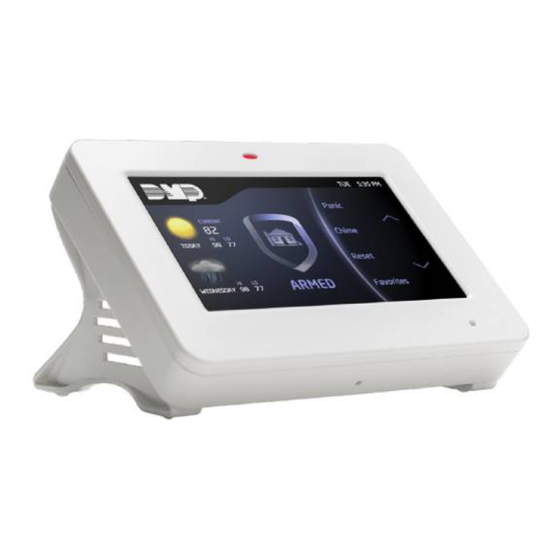

ABOUT THE XTLtouchINT™ The XTLtouchINT offers flexible features and functionality. It contains an XTLplus control panel with an integrated graphic touchscreen keypad, providing one device to control and operate a system. The XTLtouchINT has an LTE cellular communicator pre-installed for cellular use. The XTLtouchINT can be mounted to a wall or can be used for tabletop use. -
Page 5: Install The Xtltouchint
INSTALL THE XTLtouchINT Wall Mount (XTLtouchINT) For wall mount installations, use the included backplate to mount the XTLtouchINT to a wall. Note: Install the XTLtouchINT near a wall outlet for the plug-in power supply. The power supply should be located within 100 feet of the XTLtouchINT using 22 AWG wire. -
Page 6: Wall Mount
WALL MOUNT Mount the Backplate Press the tab and remove the backplate from the XTLtouchINT. See Figure 3. Backplate Figure 3: Removing the Backplate Digital Monitoring Products | XTLtouchINT Installation Guide... - Page 7 Use the level and the included #6 screws to mount the backplate to the wall. See Figure 4 for mounting hole locations. Tamper Level Figure 4: Mounting Hole Locations Digital Monitoring Products | XTLtouchINT Installation Guide...
-
Page 8: Wire For Power
Wire for Power See Figure 5 for wire routing instructions before wiring the XTLtouchINT for power. Connect the XTLtouchINT +DC terminal to the positive terminal on the power supply. Connect the XTLtouchINT -DC terminal to the negative terminal on the power supply. Plug the power supply into a 120 VAC 50 Hz dedicated outlet that’s not controlled by a switch. - Page 9 Mounted Backplate Power Supply Figure 5: Routing Wires DC terminals DC terminals Digital Monitoring Products | XTLtouchINT Installation Guide...
- Page 10 Figure 6: Securing the XTLtouchINT with the Set Screw Digital Monitoring Products | XTLtouchINT Installation Guide...
-
Page 11: Desk Stand
DESK STAND Install the Desk Stand Legs Insert one leg into the holes in the back of the XTLtouchINT. Slide the leg upwards until the leg firmly snaps into place. Repeat steps 1 and 2 to install the other leg. See Figure 7. Figure 7: Connecting the Desk Stand Legs Digital Monitoring Products | XTLtouchINT Installation Guide... -
Page 12: Power The Xtltouchint
Power the XTLtouchINT Plug the micro USB end of the cable into the back of the keypad. If desired, insert the cable into the strain relief to secure the XTLtouchINT to its power source. See Figure 8. Plug the other end of the cable into the transformer. Plug the power supply into a 120 VAC 50 Hz dedicated outlet not controlled by a switch. -
Page 13: Additional Information
ADDITIONAL INFORMATION SECONDARY POWER SUPPLY The XTLtouchINT’s 800 mAh rechargeable standby battery is used to provide four hours of battery power when DC power is not available. The battery is intended for back power only and should not operate the panel on a daily basis. If the battery is low or not plugged into the battery connector, a low battery condition is indicated by the panel. - Page 14 3.8 V 4800 mAh Rechargeable Battery (required for 24 hour standby) 3.8 V 800 mAh Rechargeable Battery Figure 9: Replacing the Battery Digital Monitoring Products | XTLtouchINT Installation Guide...
-
Page 15: Update Panel Firmware
Update Panel Firmware Log in to dmpdealeradmin.com. Navigate to a customer and select their account number. Click Remote Update located in the side menu. Click Update System. For more details, refer to Dealer Admin Help. Add a Custom Dealer Logo To add a custom dealer logo, remove the backplate. -
Page 16: Accessories
ACCESSORIES Transformer 372-500-W 12 VDC Nominal Power Supply (wall mount) 371-1000U-W Replacement 1 Amp USB Transformer and Cable (desk stand) Batteries XTLTOUCH4800/8 RPLCMNT 4800MAH BATT XTLTOUCH XTLTOUCH800/8 RPLCMNT 800MAH BATT XTLTOUCH Digital Monitoring Products | XTLtouchINT Installation Guide... -
Page 17: Certifications
CERTIFICATIONS Intertek (ETL) Listed EN 50130-5:2011 Alarm systems. Environmental test methods EN 50131-1:2006+A1:2009 Alarm systems. Intrusion and hold-up systems. System requirements. EN 50131-3:2009 Alarm systems. Intrusion and hold-up systems. Control and indicating equipment. EN 50131-5-3:2017 Alarm Systems Intrusion Systems. Requirements for Interconnections Equipment using Radio Frequency Techniques EN 50131-5-3:2017... -
Page 18: Fcc
Digital Monitoring Products | XTLtouchINT Installation Guide... - Page 19 Digital Monitoring Products | XTLtouchINT Installation Guide...
-
Page 20: Industry Canada
LT-1788INT 20342 © 2020 Digital Monitoring Products, Inc.
