DMP Electronics 1135INT Series Installation Manual

1135INT WIRELESS SIREN
Installation Guide

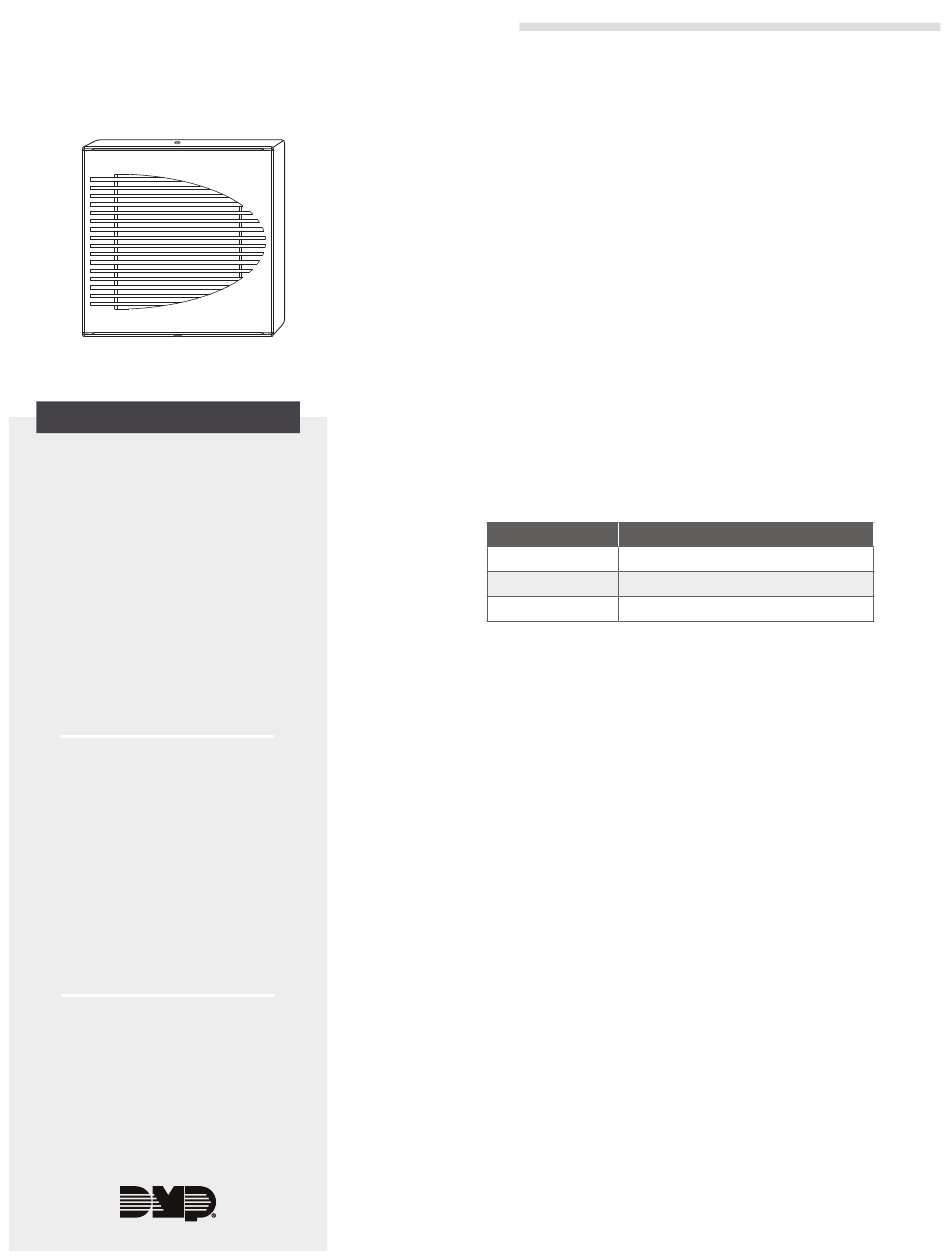

Figure 1: 1135INT Siren
GET STARTED
The 1135INT Series Wireless Siren
provides up to 110 decibels of
annunciation. It includes a wall
tamper, a cover tamper, and a
Survey LED.
Multiple sirens can be activated
simultaneously by the panel using
the Trip with Panel Bell option. This
option allows the siren to follow the
panel bell output including the bell
cutoff time.
In addition to these features,
the 1135INT Wireless Siren
communicates with the panel using
128-bit AES encryption.
Compatibility
• 1100XINT Wireless Receivers
Version 700 and Higher
• 1100DINT Wireless Receivers
Version 700 and Higher
• XT30INT Series Panels Version
693 and Higher
• XTLtouchINT/XTLplusINT Series
Panels Version 693 and Higher
• XR150INT/XR550INT Series
Panels Version 693 and Higher
What is Included?
• One 1135INT Wireless Siren
• Two 3.0 V Lithium CR123
Batteries
• Hardware Pack
1

PROGRAM THE PANEL

To program the 1135INT Series into the panel, select one of the
following methods: Choose Method 1 to make the siren a non-
standard output that follows the panel bell or Method 2 to make
the siren a standard output.
A house code must be programmed in the panel's SYSTEM
OPTIONS before programming wireless devices. Range is 1 - 50.
To enter panel programming, reset the panel and enter the
programming menu code at a keypad: For international XR Series
enter 6653 (PROG). For international XT and XTL Series, enter 665
(PRO).
After completing each of the following steps, press CMD to
advance to the next prompt. After you finish programming, go to
STOP and press CMD to save and exit the Programmer menu. For
more information, refer to the appropriate panel programming
guide.
PANEL MODEL
XR Series
XT Series
XTL Series
Table 1: Valid Output Numbers by Panel Model
Method 1: Non-Standard Output (Follow Panel)
Go to OUTPUT INFO (XR Series) or OUTPUT SETUP (XT and
1.
XTL Series).
At OUTPUT NO, enter the output number. Refer to Table 1.
2.
3. At OUTPUT NAME, enter a descriptive name for the siren.
4. At SERIAL#, enter the 8-digit device serial number.
At SUPRVSN TIME, enter the supervision time in minutes.
5.
6. Ensure TRIP WITH PANEL BELL is set to YES (default).
Go to BELL OPTIONS and set the BELL CUTOFF. Range is
7.
1 - 15 minutes.
Method 2: Standard Output (Standalone)
1. Go to OUTPUT INFO (XR Series) or OUTPUT SETUP (XT and
XTL Series).
At OUTPUT NO, enter the output number. Refer to Table 1.
2.
3. At OUTPUT NAME, enter a descriptive name for the siren.
At SERIAL#, enter the 8-digit device serial number.
4.
5. At SUPRVSN TIME, enter the supervision time in minutes.
6. At TRIP WITH PANEL BELL, select NO.
2

INSTALL THE BATTERIES

Observe polarity and install both CR123 batteries, For the battery
holder location, refer to Figure 2.
VALID OUTPUT NUMBERS
450-474 (slow) or 480-499 (fast)
31-34 (slow) or 41-44 (fast)
51-54 (slow) or 61-64 (fast)
