DMP Electronics 1128 Installation Manual

1128 WIRELESS GLASSBREAK DETECTOR
Installation Guide

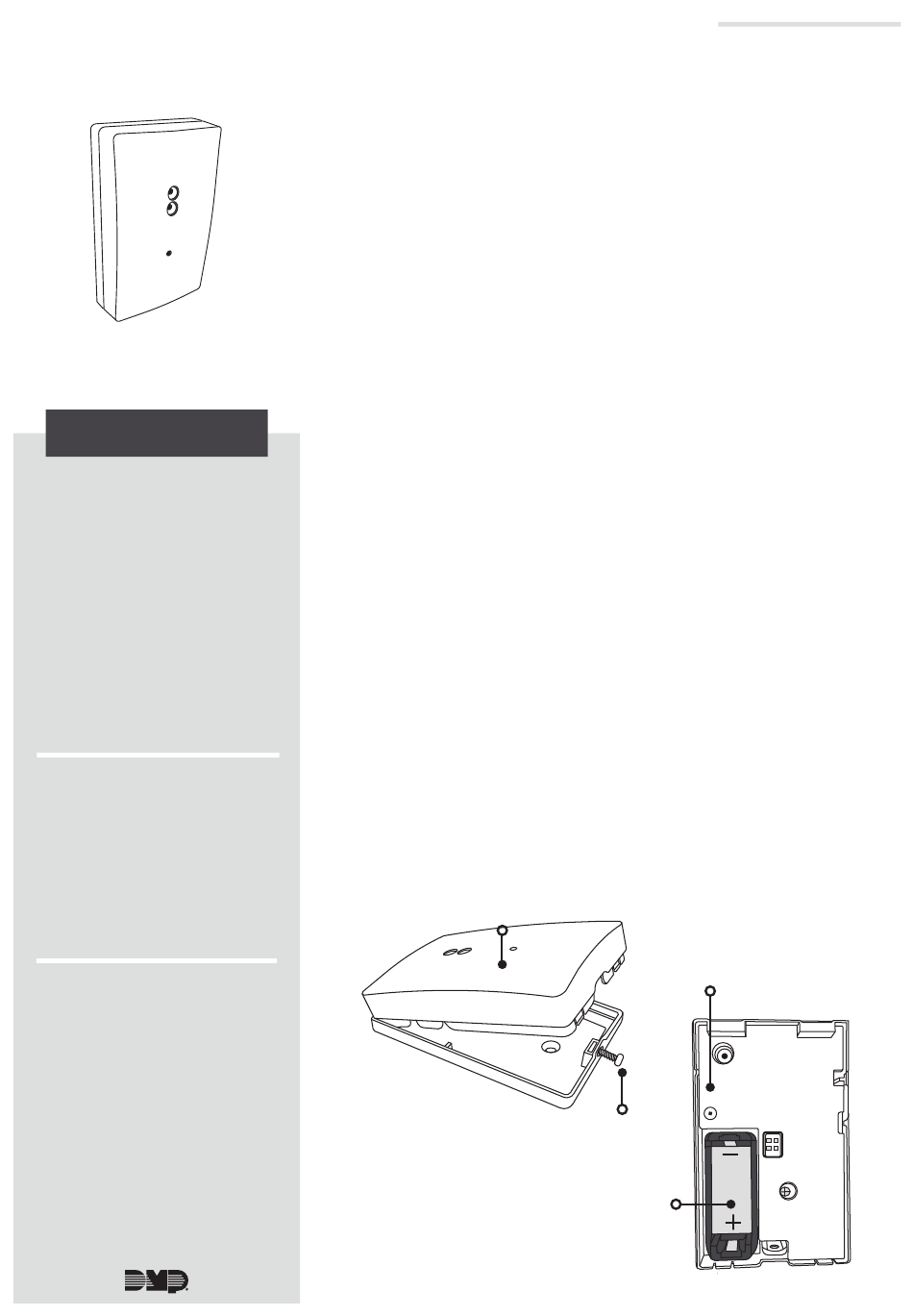

Figure 1: 1128 Wireless
Glassbreak Detector
DESCRIPTION
The 1128 Wireless Glassbreak
Detector is a fully-supervised,
low current shock and
glassbreak sensor that
provides detection coverage
up to 20 ft from framed glass
mounted in an outside wall.
You can mount the 1128 on
the ceiling or on an opposing
wall for maximum flexibility
and coverage. The 1128
operates using the supplied
3 V lithium battery.
Compatibility
All DMP 1100 Series
Wireless Receivers.
Glassbreak Walk Test is
available on 1128 Version
2.0.0.1 and higher and with
XT/XR Series Version 191
and higher. See last page
for compatibility details.
What is Included?
• One 1128 Wireless
Glassbreak Detector
• One 3 V lithium
CR123A battery
• Hardware Pack
1
PROGRAM THE PANEL
When programming the 1128 in the panel, refer to the panel
programming guide as needed.
1. At a keypad, enter 6653 (PROG) to access the
PROGRAMMER menu.
2. Press CMD until ZONE INFORMATION displays and
press a top row select key or area.
3. Enter the wireless ZONE NO and press CMD.
4. Enter the ZONE NAME and press CMD.
Select NT (night) the ZONE TYPE.
5.
Select the AREA NO and press CMD.
6.
7. At the NEXT ZN? prompt, select NO and press CMD
until WIRELESS? displays.
8. Select YES when WIRELESS? displays and press
CMD.
9. Enter the eight-digit SERIAL# and press CMD.
10. Enter the SUPRVSN TIME and press CMD.
At the NEXT ZN? prompt, select YES if you are
11.
finished programming the zone. Select NO if you
would like to access additional programming
options.
2
INSTALL THE BATTERY
Keep in mind, when setting up a wireless system, program
zones and connect the receiver before installing the included
CR123A battery in the transmitter.
1. Remove the holding screw at the lower end of the
1128 case and gently lift off the cover. See Figure 2.
2. Observing polarity, place the battery in the holder
and press into place. See Figure 3 for the battery
location.
LED
Figure 2: Open the 1128
Tamper
Holding
Screw
Battery
Holder
Figure 3: 1128 Battery Location
