  • Page 1 Thermal Imager Mini2 V2/Mini2Plus V2/MiniE User Manual Contact Us...
  • Page 2 Thermal Imager User Manual CONTENTS Introduction ......................1 Thermal Imager and HIKMICRO Viewer ....................1 Download HIKMICRO Viewer......................... 1 Connect Thermal Imager and HIKMICRO Viewer ................2 User Manual ............................2 Live View........................3 Live View ..............................3 2.1.1 Live View Interface ..........................4 2.1.2...

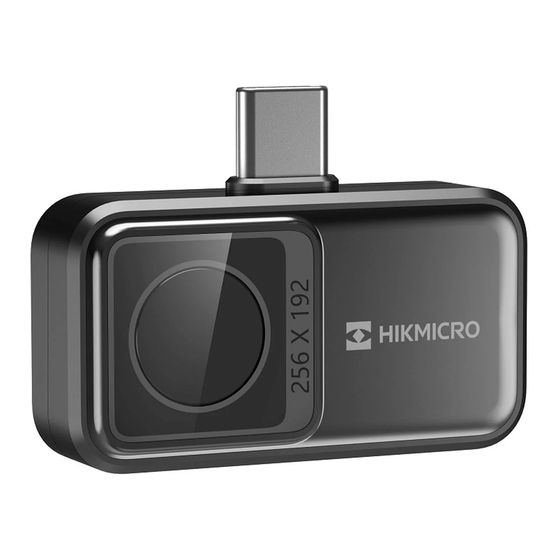

  • Page 3 Android or iOS systems through Type-C and Lightning connectors. The imager needs to work with the HIKMICRO Viewer (hereinafter refers to as the APP). Figure 1-1 Thermal Imager Appearance This manual describes and explains the features for multiple thermal imagers.
  • Page 4 Thermal Imager User Manual Connect Thermal Imager and HIKMICRO Viewer Figure 1-3 Connect Thermal Imager to the APP  The thermal imager in figure above is for demonstration ONLY.  If connected successfully, “Connected” will show on the home screen.
  • Page 5 Thermal Imager User Manual Live View Live View In Live View, you can adjust and calibrate thermal image, measure temperatures, change palettes, etc.
  • Page 6 Thermal Imager User Manual 2.1.1 Live View Interface Figure 2-1 Live View Interface...
  • Page 7 Thermal Imager User Manual Table 2-1 Live View Interface Icons Functions Description Enhance the object outlines for better SuperIR image display. View the digital camera image of your Digital Camera phone. The device will automatically implement Auto Flat Field Calibration (FFC) after you turn Calibration it on.
  • Page 8 Thermal Imager User Manual Figure 2-2 Thermal Imager with a Focus Ring Focusing adjustment is ONLY supported by the imager with a focus ring. Image Rotation to rotate live image by 90 degrees. SuperIR Switch on to get an enhanced thermal image. 2.1.3 Thermal Image Calibration For temperature measurement accuracy and image effect, it is...
  • Page 9 Thermal Imager User Manual 2.1.4 Select Palettes Palettes highlights the imaging details as the image displays different colors according to temperature range. to select appropriate palettes. Custom Palettes and predefined palettes are available. Figure 2-3 Different Palettes  NO MORE THAN 4 colors are supported to set in the Custom Palettes. ...
  • Page 10 Thermal Imager User Manual , the imager will shift to Auto Adjustment, and the display temperature range will be automatically adjusted. Manual Adjustment , the imager will shift to Manual Adjustment. It is a focus palette that you can swipe the temperature value up and down to adjust the range, focusing on the target in the set range.
  • Page 11 Thermal Imager User Manual Measure Temperature Measure temperature with tools. Available tools are Point, Line and Rectangle. 3.2.1 Add Point Measurement Tool 1. Tap to add point tools. Table 3-2 Point Measurement Tools Icon Function Description Center Point Display the real-time temperature of the center of the live image.
  • Page 12 Thermal Imager User Manual Tap the line on the pop-up window to remove it 3. Optional: Show/Hide Temperature Result Tap the line to show/hide the highest/lowest/average temperature Tap OK to confirm the settings 3.2.3 Add Rectangle Measurement Tool 1. Tap >...
  • Page 13 Thermal Imager User Manual 3. Slide to switch on the High Temp alarm or the Low Temp Alarm respectively. It does NOT support to enable High Temp alarm and Low Temp alarm at the same time. 4. Tap OK to confirm the settings.
  • Page 14 Thermal Imager User Manual Capture Snapshots and Record Videos Capture Snapshots If you need to save snapshots to your phone, please click Settings > General > Save Pictures to Phone. to capture thermal images and save them to the APP album and your phone.
  • Page 15 Thermal Imager User Manual  Tap the snapshot or video on the lower left corner on the Live View, then tap , and you can view all the snapshots and videos.  Tap in the home scree, and you can view all the snapshots and videos Edit Snapshots You can adjust the parameters of the snapshot to get more accurate...
  • Page 16 Thermal Imager User Manual Generate and Share PDF Report 1. Enter to the Album and select the snapshot. 2. Tap to edit the report information. File Name is a MUST. 3. Tap Next > to generate a PDF report. 4. Tap to share the report with the third party.
  • Page 17 Thermal Imager User Manual Update and Maintenance Update the Imager For better operation experience, it is recommended to update to the latest version in time. The imager update is as follows:  In the home screen, tap Device Upgrade > Check for Updates. ...
  • Page 18 DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKMICRO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES...
  • Page 19 OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKMICRO WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED. YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW.
  • Page 20 Thermal Imager User Manual Regulatory Information These clauses apply only to the products bearing the corresponding mark or information. FCC Compliance Statement Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 21 Thermal Imager User Manual Directive 2011/65/EU (RoHS). This product and - if applicable - the supplied accessories too are marked with "UKCA" and comply therefore with the following directives: Radio Equipment Regulations 2017, Electromagnetic Compatibility Regulations 2016, Electrical Equipment (Safety) Regulations 2016, the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012.
  • Page 22 Thermal Imager User Manual Accumulators Regulations 2009: This product contains a battery that cannot be disposed of as unsorted municipal waste United Kingdom. product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg).
  • Page 23 Thermal Imager User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. Transportation  Keep the device in original or similar packaging while transporting it.  Keep all wrappers after unpacking them for future use. In case of any failure occurred, you need to return the device to the factory with the original wrapper.
  • Page 24 UD38071B...
