5.7 Mounting recommendations

It is possible to place the router:
on a flat surface,
on a wall using four holes in corners and screws with diameter 3 mm,
on DIN rail with the included clip – see chapter 5.8.
It is recommended to follow these instructions:
For whip antennas it is recommended to observe a minimum distance of 6 cm from
cables and metal surfaces on every side in order to avoid interference. When using
an external antenna separate from the switchboard it is necessary to fit a lightening
conductor.
When mounting a router on sheet-steel we recommend using a "cable" antenna.
For all cables we recommend to bind the bunch, and for this we recommend:
– The length of the bunch (combination of power supply and data cables) should be a
maximum 1.5 m. If the length of data cables exceeds 1.5 m or if the cable is leading
towards the switchboard, we recommend installing surge protectors.
– Data cables must not have a reticular tension of
Sufficient space must be left between individual connectors for the handling of cables,
To ensure the correct function of the router, we recommend the use of an earth-bonding
distribution frame for the grounding of the power supply of the router, data cables and
antenna within the switchboard. Note: The dedicated grounding screw on the side of
the router can be used as grounding point, see Figure below.
LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: info@lucom.de — www.lucom.de

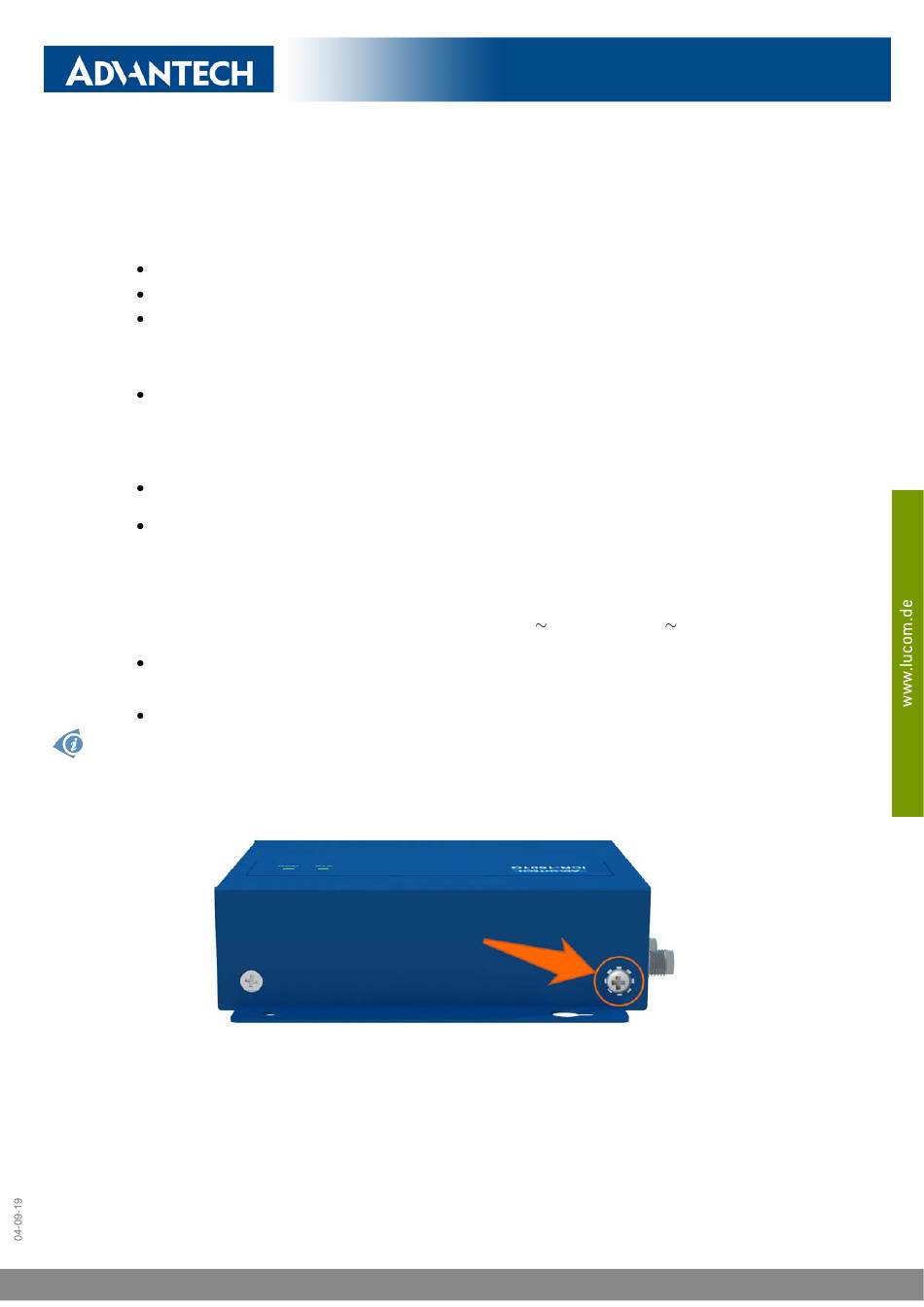

Figure 18: Grounding screw on side of the router
20
ICR-1601
230 V/50 Hz or 120 V/60 Hz.
