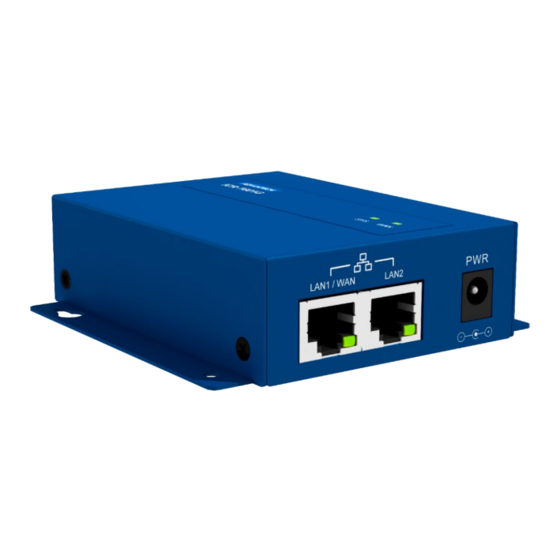

Advantech ICR-1601 User Manual
Lte industrial
Hide thumbs
Also See for ICR-1601:
- Configuration manual (269 pages) ,
- Start manual (8 pages) ,
- Configuration manual (273 pages)
Related Manuals for Advantech ICR-1601
Summary of Contents for Advantech ICR-1601
- Page 1 LTE Industrial Router ICR-1601 USER MANUAL LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: info@lucom.de — www.lucom.de...
- Page 2 Website www.advantech-bb.com c 2019 Advantech B+B SmartWorx s.r.o. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photography, recording, or any information storage and retrieval system without written consent. Information in this manual is subject to change without notice, and does not represent a commitment on the part of Advantech B+B SmartWorx.
- Page 3 Please see http://ep.advantech-bb.cz/devzone for more information. Advantech B+B SmartWorx s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic Document No. MAN-0038-EN, revision from May 10, 2019. Released in the Czech Republic. LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: info@lucom.de — www.lucom.de...
-
Page 4: Table Of Contents
ICR-1601 Contents 1 Safety Instructions 2 WEEE directive 3 Router Description 3.1 LTE Category 4 (Cat.4) ....... - Page 5 ICR-1601 7.2 Technical specification of user interfaces ..... . 7.3 Standards and regulations ......
- Page 6 ICR-1601 List of Figures Access to the Internet from LAN ......Backed up access to the Internet .
- Page 7 ICR-1601 List of Tables Contents of package ....... . .
- Page 8 ICR-1601 1. Safety Instructions Please, observe the following instructions: The router must be used in compliance with all applicable international and national laws and in compliance with any special restrictions regulating the utilization of the router in prescribed applications and environments.
-
Page 9: Weee Directive
ICR-1601 2. Product Disposal Instructions The WEEE (Waste Electrical and Electronic Equipment: 2012/19/EU) directive was in- troduced to ensure that electrical/electronic products are recycled using the best available recovery techniques in order to minimize impact on the environment. This product contains high quality materials and components which can be recycled. -
Page 10: Router Description
Category 4 (Cat.4) services on the cellular LTE network. 3.1 LTE Category 4 (Cat.4) LTE Category 4 (Cat.4) is the next step in 4G LTE device capability. Cat.4 rated ICR-1601 routers are capable of achieving better typical speeds in 4G coverage areas where the network is enabled with 20 MHz of contiguous spectrum. -
Page 11: Usage Of The Router
ICR-1601 Examples of possible applications mobile office telematics smart meters for utilities telemetric fleet management remote monitoring security systems vending and dispatcher machines 3.4 Usage of the Router The router is primarily intended for these four basic situations: I. Access to the Internet from LAN Figure 1: Access to the Internet from LAN LUCOM GmbH —... -
Page 12: Backed Up Access To The Internet
ICR-1601 II. Backed up access to the Internet (from LAN) Figure 2: Backed up access to the Internet III. Secure networks interconnection or using VPN Figure 3: Using a VPN tunnel LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: info@lucom.de — www.lucom.de... -
Page 13: Contents Of Package
ICR-1601 4. Contents of Package The standard set of router includes items listed in following table: Item# Description Figure Q’ty ICR-1601 router 1 pcs Cellular antenna 2 pcs WiFi antenna 1 pcs Power adapter (DC 5V/2A) 1 pcs DIN Rail bracket... -
Page 14: Router Design
ICR-1601 5. Router Design 5.1 Router Versions The ICR-1601 router is supplied in the following versions (see table below). All versions are available only in metal casing. Router versions ICR-1601 with GPS ICR-1601 with WiFi Table 1: Router versions 5.2 Order Codes The table below shows an overview of order codes. -
Page 15: Product Labels
ICR-1601 5.3 Product labels Product label is placed on the bottom of the router. On pictures below are product labels for both, GPS and WiFi versions. Figure 4: Product label for GPS version Figure 5: Product label for WiFi version... -
Page 16: Basic Dimensions Of The Router
ICR-1601 5.4 Basic Dimensions of the Router 5.4.1 Left view Figure 6: Left view 5.4.2 Bottom view Figure 7: Bottom view LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: info@lucom.de — www.lucom.de... -
Page 17: Description Of The Right Panel
ICR-1601 5.5 Description of the Right Panel The right panel is displayed on figure 8. Figure 8: Right panel The right panel contains: LAN1/WAN – RJ45 slot for LAN/WAN connection – see chapter 5.6.6, LAN2 – RJ45 slot for LAN connection – see chapter 5.6.6, PWR –... -
Page 18: Description Of The Left Panel
ICR-1601 5.6 Description of the Left Panel The left panel is displayed on figure and 10. Figure 9: GPS version Figure 10: WiFi version The left panel contains: MicroSD – slot for MicroSD memory card, SIM1 – slot for the first SIM card – see chapter 5.6.5, SIM2 –... -
Page 19: Status Indication
ICR-1601 5.6.1 Status Indication There are status LEDs indicators on the top cover to provide router status information. Router with the GPS module has two LEDs while the WiFi version has three LEDs. Each ETH port has one additional LED which provides information about status of the port. -
Page 20: Power Supply
ICR-1601 5.6.2 Power Supply There is a DC5V/2A power adapter in the package for you to easily connect DC power to this gateway. Picture of this power adapter is on figure 11. If you power the gateway with other DC Power Source, please make sure the DC Power voltage is in range from 5V to 18V DC. -
Page 21: Antenna Connector Ant, Div And Wifi/Gps
ICR-1601 5.6.3 Antenna Connector ANT, DIV and WiFi/GPS The main and diversity antennas are connected to the router using the SMA connector on the front panel. In the middle is located R-SMA connector for the WiFi resp. SMA connector for GPS antenna (based on the model). Only passive GPS antennas are supported. -
Page 22: Sim Card Reader
ICR-1601 5.6.4 SIM Card Reader Make sure that the router is powered off prior to inserting or replacing the SIM card. The two slots for SIM cards are located on the left panel of the router protected by a metal cover. -
Page 23: Microsd Card Reader
ICR-1601 5.6.5 MicroSD Card Reader Make sure that the router is powered off prior to inserting or replacing the microSD card. A microSD memory card can be inserted into the router and used for the log storage. Slot for one microSD memory card is located on the left panel of the router protected by a metal cover. -
Page 24: Ethernet Ports
ICR-1601 5.6.6 Ethernet Ports There are two RJ45 sockets for Fast Ethernet, LAN1 resp. LAN2 interfaces. Only the LAN1 interface can be used for as the WLAN interface. The connection of the RJ45 Ethernet socket is described in the table below. -
Page 25: Factory Reset
ICR-1601 5.6.7 Factory Reset It is possible to restore the default factory configuration of the router by pressing the Reset button on the left panel. It is necessery to hold down this button continuously at least for 6 seconds and then release it. After pressing this button, the default factory configuration will be restored and the router will reboot. -
Page 26: Mounting Recommendations
ICR-1601 5.7 Mounting recommendations It is possible to place the router: on a flat surface, on a wall using four holes in corners and screws with diameter 3 mm, on DIN rail with the included clip – see chapter 5.8. -
Page 27: The Din Rail Clip
ICR-1601 5.8 The DIN rail clip The DIN rail clip supports installation to the TS-32 (G rail), TS-35 (7,5 and 15 mm deep) and TS-15 DIN rails. On the picture below is described assembly of the two DIN rail clips to the router by four screews. -
Page 28: Removing From The Din Rail
ICR-1601 In order to remove the DIN rail clip, it is necessary to use a screewdriver as illustrated on following picture. Figure 21: Removing from the DIN rail LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: info@lucom.de — www.lucom.de... -
Page 29: First Use
Ethernet port ETH. These router behaviors can be changed via the web interface. This is described in detail in the Configuration manual for ICR-1601 [2]. 6.2.1 Configuration by web browser For status monitoring, configuration and administration of the router, a web interface is available, which can be accessed by entering the IP address of the router into the web browser. -
Page 30: Router Web Interface
A detailed description of the router settings in the Web interface can be found in the Configu- ration manual for ICR-1601 [2]. LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: info@lucom.de — www.lucom.de... -
Page 31: Technical Parameters
ICR-1601 7. Technical Parameters 7.1 Basic Parameters ICR-1601 Temperature range Operating -30 C to +70 C Storage -40 C to +85 C Humidity Operating 10 to 95 % relative humidity non condensing Storage 10 to 95 % relative humidity non condensing... -
Page 32: Standards And Regulations
ICR-1601 7.3 Standards and regulations The router complies with the following standards and regulations. Standards and regulations Radio ETSI EN 301 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.1, ETSI EN 301 908-13 V11.1.1, ETSI EN 303 413 V1.1.1, ETSI EN 300 328 V2.1.1 ETSI EN 301 489-1 V2.2.0, ETSI EN 301 489-19 V2.1.0,... -
Page 33: Technical Parameters Of Cellular Module
ICR-1601 7.5 Technical Parameters of Cellular Module Cellular module LTE parameters LTE FDD Cat.4 Bit rate: 150 Mbps (DL) / 50 Mbps (UL) Supported frequencies: B20 (800 MHz), B8 (900 MHz), B3 (1800 MHz), B1 (2100 MHz), B7 (2600 MHz) Transmit power: 23 2.7 dBm... -
Page 34: Technical Parameters Of Wifi
ICR-1601 7.6 Technical Parameters of WiFi WiFi Antenna connector R-SMA – 50 Supported WiFi band 2.4 GHz Standards 802.11n, 802.11g, 802.11b 2.4 GHz supported channels 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 Functions Multi-SSID, WMM Security WEP, WPA,WPA2, WPA-PSK, WPA2-PSK, 802.1x... -
Page 35: Recommended Literature
ICR-1601 8. Recommended Literature Advantech B+B SmartWorx: Start Guide for ICR-1601, Advantech B+B SmartWorx: ICR-1601 Configuration Manual. Product related documents and applications can be obtained on Engineering Portal at address. https://ep.advantech-bb.cz/ LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: info@lucom.de — www.lucom.de... -
Page 36: Customers Support
During cleaning of the router do not use aggressive chemicals, solvents and abrasive cleaners! Hereby, Advantech Co., Ltd. company declares that the radio equipment type ICR-1601 is in compliance with EU Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address: www.advantech-bb.cz/eudoc...
