5.6 Description of the Left Panel

The left panel is displayed on figure
The left panel contains:
MicroSD – slot for MicroSD memory card,
SIM1 – slot for the first SIM card – see chapter 5.6.5,
SIM2 – slot for the second SIM card – see chapter 5.6.4,
Reset – button for factory reset – see chapter 5.6.7,
ANT – SMA connector for cellular antenna – see chapter 5.6.3,
WiFi/GPS – R-SMA connector for WiFi or SMA connector for GPS antenna (based
on model) – see chapter 5.6.3,
DIV – SMA connector for diversity cellular antenna – see chapter 5.6.3.
LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: info@lucom.de — www.lucom.de
9 and 10.

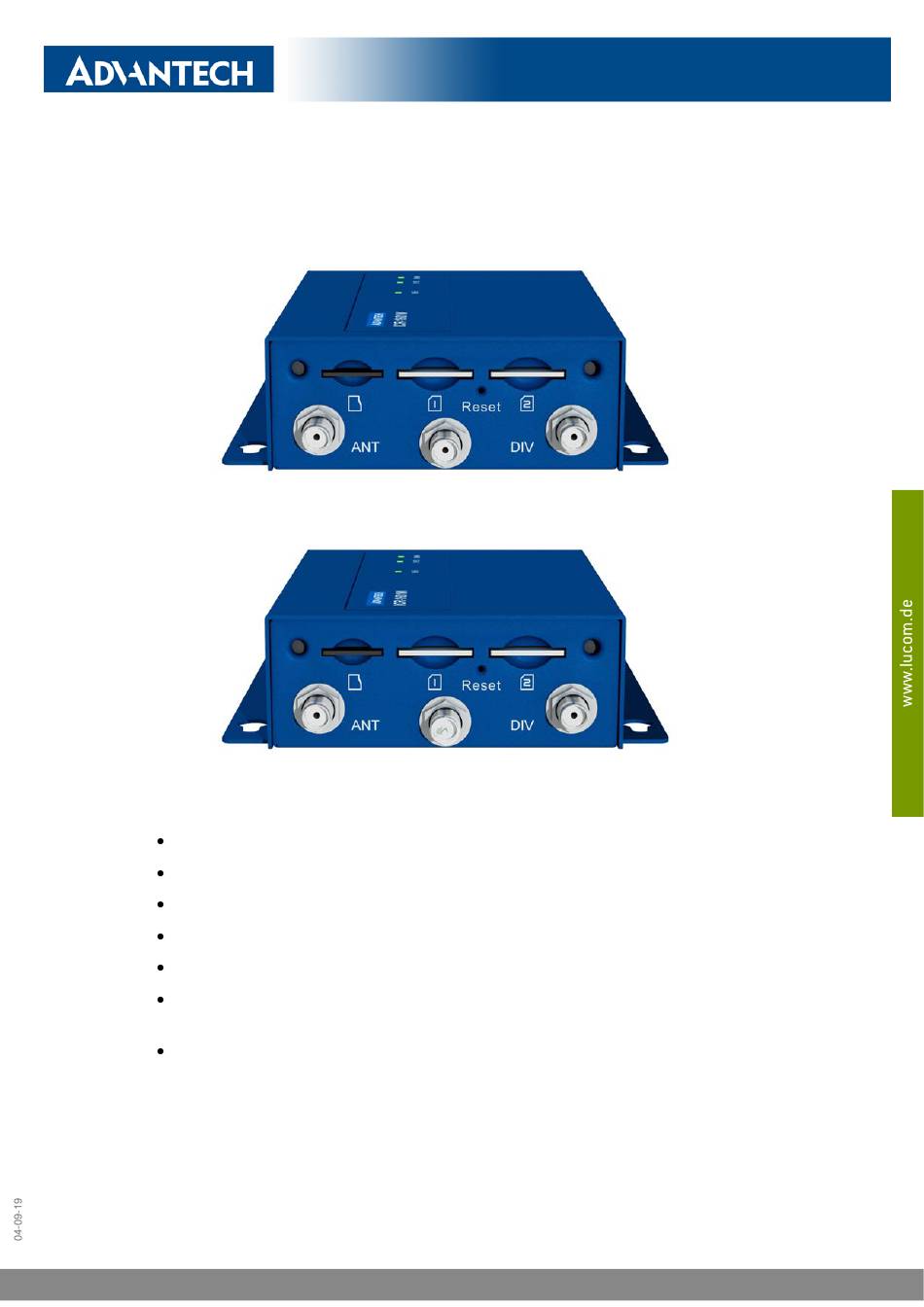

Figure 9: GPS version
Figure 10: WiFi version
