5.6.3 Antenna Connector ANT, DIV and WiFi/GPS

The main and diversity antennas are connected to the router using the SMA connector on
the front panel. In the middle is located R-SMA connector for the WiFi resp. SMA connector
for GPS antenna (based on the model). Only passive GPS antennas are supported.
The ANT connector is used to connect the main antenna to the router. To connect the
diversity antenna, the second antenna connector DIV is used.
The router can not operate without a main antenna connected through the port marked
as ANT !
An SMA connector is used for the connection of the antenna. The antenna is connected
by screwing this antenna to the SMA connector on the front panel of the router (see figure
below). Recommended tightening moment is 0.9 Nm.
A diversity antenna improves the radio capability of the router at low signal strength.
LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: info@lucom.de — www.lucom.de

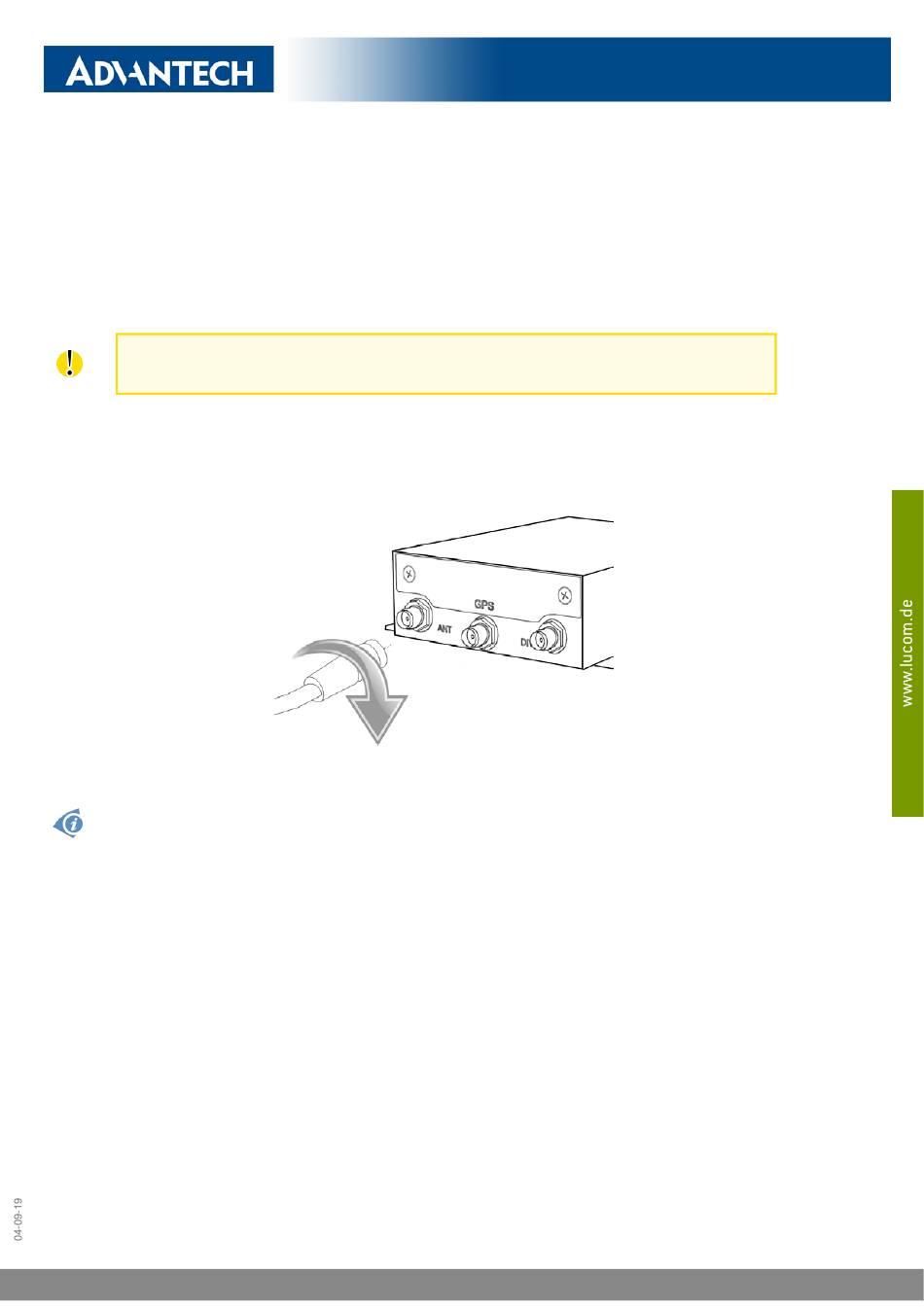

Figure 12: Connecting the antenna
