5.8 The DIN rail clip
The DIN rail clip supports installation to the TS-32 (G rail), TS-35 (7,5 and 15 mm deep)
and TS-15 DIN rails. On the picture below is described assembly of the two DIN rail clips to
the router by four screews.
Installation of the DIN rail clip to the DIN rail of type TS-35-7,5 is illustrated on the picture
bellow.
LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: info@lucom.de — www.lucom.de

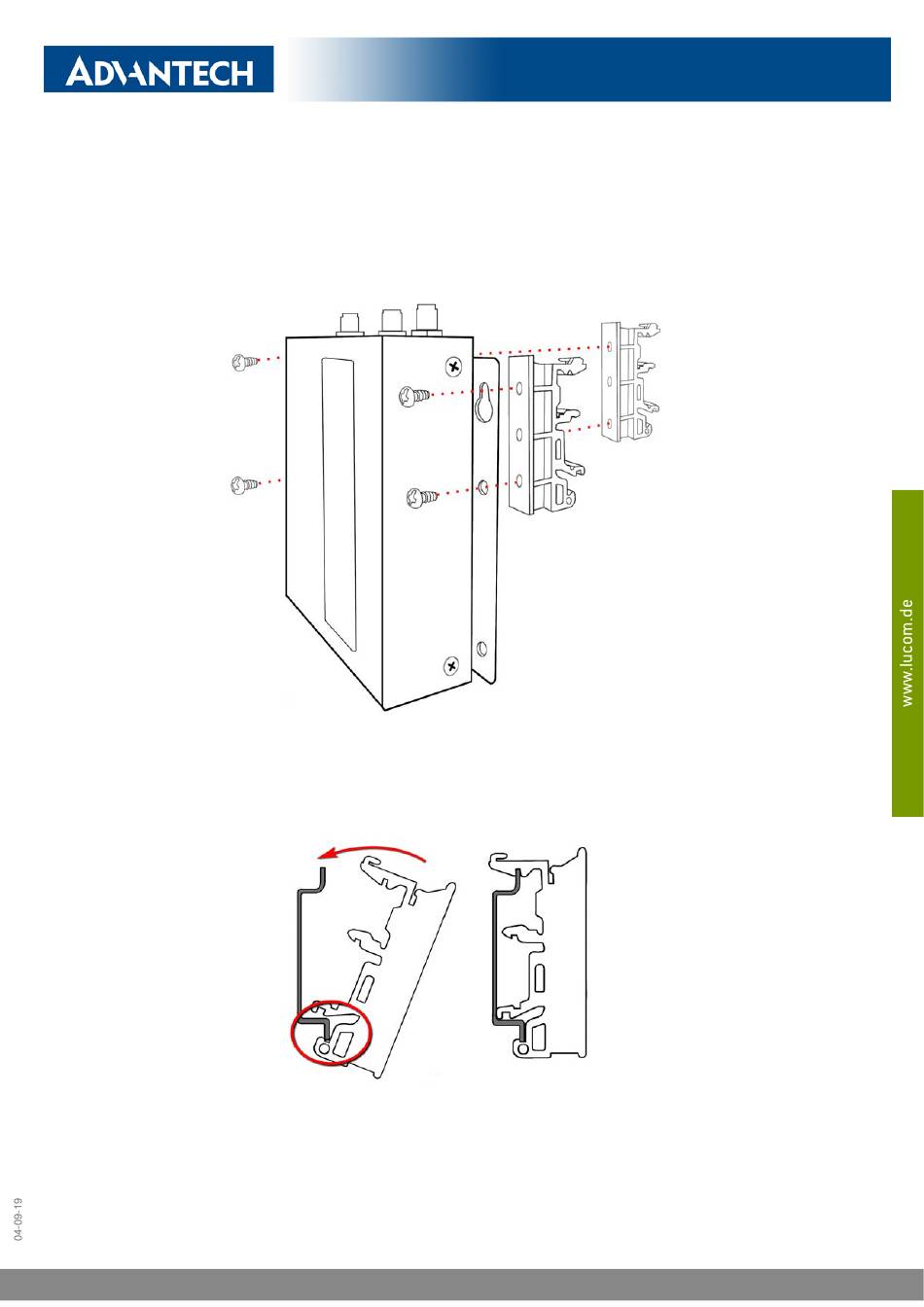

Figure 19: Installation of the DIN rail clips
Figure 20: Installation to the DIN rail
