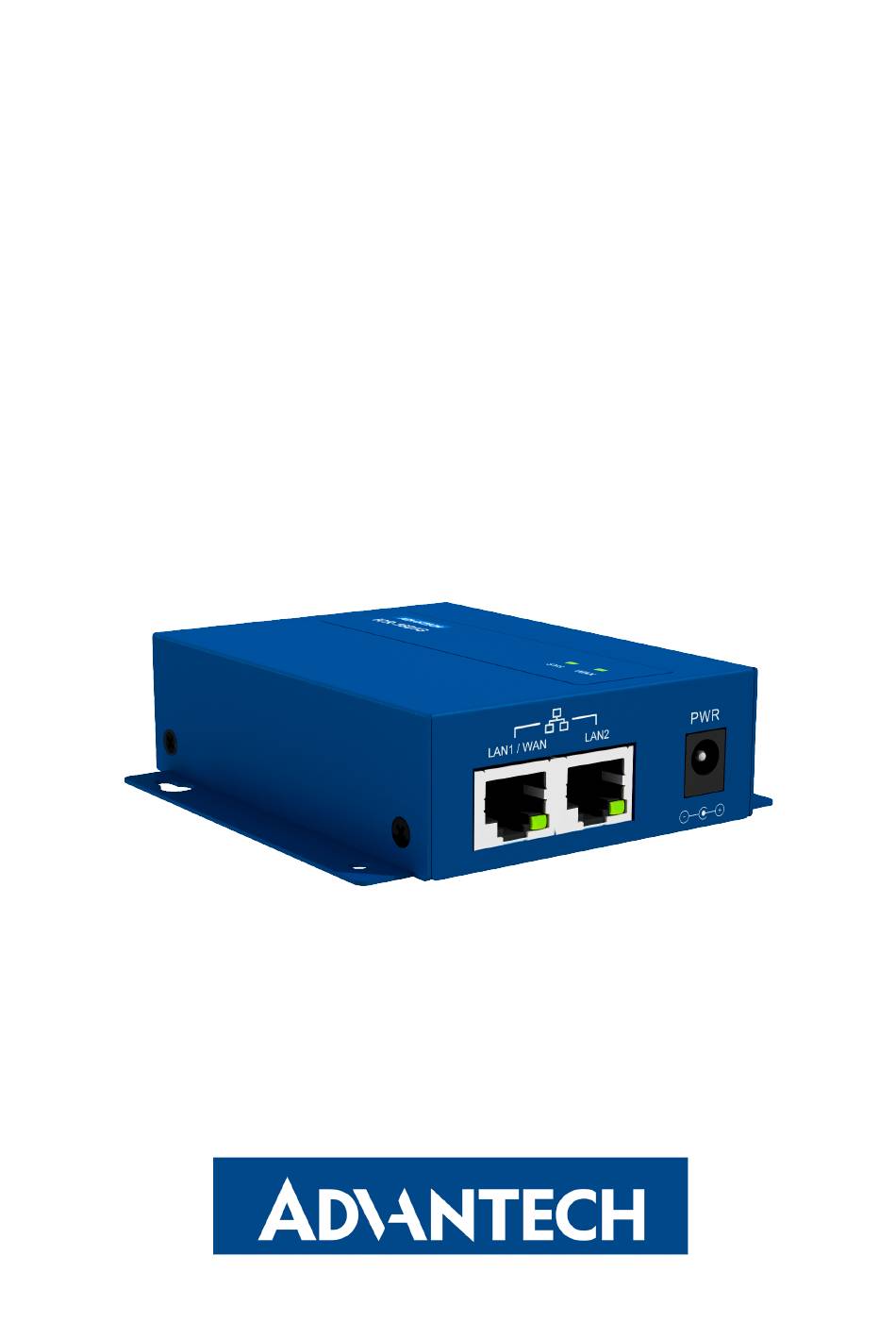

- Page 1 Start Guide ICR-1601...
-
Page 2: Start Guide
Start Guide Safety Instructions Please take care to following instructions: • Use the router in compliance with national and international law and compliance with any special or additional restrictions regulating the use of the router in various applications and environments. •... - Page 3 Start Guide Product Disposal Instructions The WEEE (Waste Electrical and Electronic Equipment: 2012/19/EU) direc- tive has been introduced to ensure that electrical/electronic products are recy- cled using the best available recovery techniques to minimize the environmental impact. This product contains high-quality materials and components which can be recycled.
-
Page 4: First Use
Start Guide First Use Before applying power to the router, connect all the components you need for your appli- cations. Do not run the router without an antenna connected to the main antenna connector. The energy from the transmission is effectively reflected by the open end and can damage the equipment. - Page 5 Devices manufactured before 2024 support a maximum input voltage of 18 VDC. If you’re unsure of your device’s production date, please consult your Advantech sales representative to confirm which hardware version you have.
- Page 6 Start Guide 4. Ethernet For an initial configuration made in a web browser, connect a PC by an Ethernet cable to the default LAN interface, use the LAN1 port; see the figure above. By default, this interface has the following configuration: Connector Purpose Default Setting...
- Page 7 All product-related manuals, documents, and software can be found and downloaded on the website at icr.advantech.com/download address. Hereby, Advantech Co., Ltd. company declares that the radio equipment type ICR-1601 complies with EU Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address: icr.advantech.com/eudoc...
