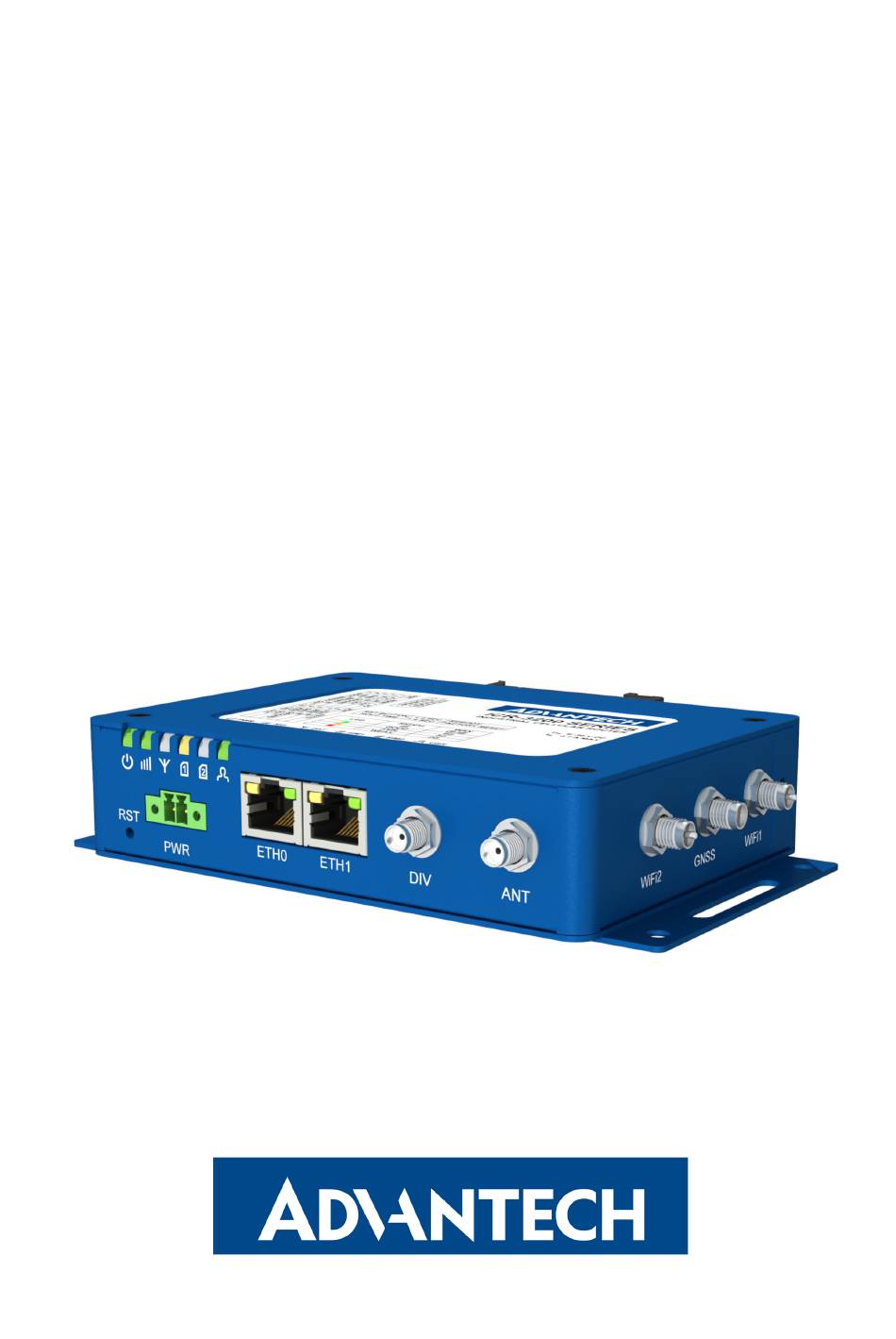

- Page 1 Start Guide ICR-3201, ICR-3211, ICR-3231 ICR-3232, ICR-3241...
- Page 2 Start Guide Safety Instructions Please take care to following instructions: Use the router in compliance with national and international law and in compliance with any special or additional restrictions regulating the use of the router in various applica- tions and environments. To avoid possible injury and/or damage to the device, observe the relevant provisions and standards.
- Page 3 flash drive medium. If you are interested in obtaining the source, please get in touch with us at: techSupport@advantech-bb.com Modifications and debugging of LGPL-linked executables: The device manufacturer hereby grants the right to use debugging techniques (e.g., de- compilation) and making customer modifications of any executable linked with an LGPL library...
- Page 4 ICR-3201 routers are not equipped with a cellular module, which means that SIM card slots and cellular antenna connectors are not available on the router.
- Page 5 Start Guide Disconnect the router from the power supply before handling the SIM card. 3. Power The router requires an external DC power supply. The DC voltage required is between +9 and +36 V DC. The router has built-in protection against reverse polarity without signaling. Connect the power supply cable to the PWR connector on the router’s front panel;...
- Page 6 Start Guide 4. Ethernet For an initial configuration made in a web browser, connect a PC by an Ethernet cable to the default LAN interface, use the ETH0 port; see the figure above. By default, this interface has the following configuration: Connector Purpose Default Setting...
- Page 7 We, Advantech Czech s.r.o., declare that the radio equipment type ICR-3211 (WiFi version), ICR-3211, and ICR-3231 comply with Directive Radio Equipment Regula- tions 2017 (S.I. 2017 No. 1206). Furthermore, ICR-3201 (non-WiFi version) com- plies with the Electromagnetic Compatibility Regulations 2016 (S.I. 2016 No. 1091 and S.I.
