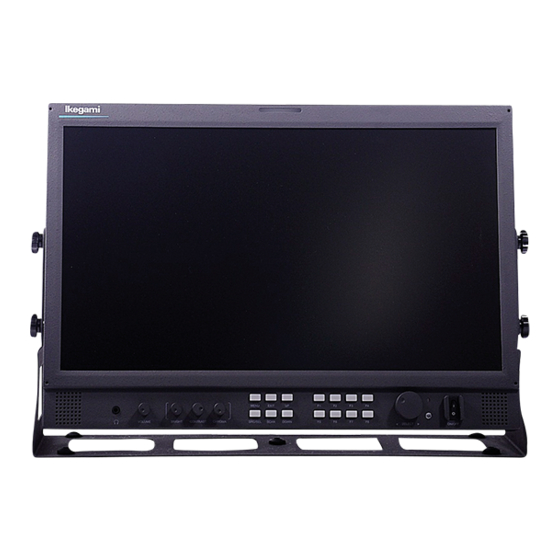

- Page 1 MODEL HLE-1853G MULTI FORMAT LCD COLOR MONITOR OPERATON MANUAL...
-
Page 2: Table Of Contents
Contents Getting Started Setting Caution Load System Default Product features Bklight Dimming Monitor View Misc Initial Setup Basic Information Advanced Input Output Connections Timecode Source Alias Connecting to BNC Signal Device System Info SDI input signal Format SDI output signal Format H Flip Connecting to HDMI Signal Device Test Pattern... -
Page 3: Caution
Caution ■ Caution It is highly recommended to read and understand the cautions listed below thoroughly before you start using the product. And if you are unclear with any parts of the cautions or have questions, please contact us. ■ Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. - Page 4 Caution (cont'd) Explanation of Safety Related Symbols ■ Manual contents are subject to change without notice ■...
-
Page 5: Product Features
Product Features Product Features ■ Integrated Converter Integrated active SDI-HDMI and HDMI-SDI converter allows the transparent conversion of HD to HDMI signal or conversion of HDMI back to HD format Multi-Format Signal ViewZ monitors are compatible with various sources including - HDMI (compatible with DVI) - SDI signals: 3G(425A/B), HD, SD - CVBS(composite) and YPbPr(component) -
Page 6: Monitor View
Monitor View ■ Exterior Information HLE-1853G monitor 443 x 308 (mm) Stand 443 x 318 (mm) Front Rear RS-485 IN RS-485 OUT V mount DC 12V Power in XLR Power in... -
Page 7: Initial Setup
If you want to exit the menu and restart, press exit button depending on where you are in menu tree Function key Factory default setting for programmable keys on the front of the monitor HLE-1853G UMD Type Marker Waveform... -
Page 8: Basic Information
Basic Information ■ Display information ■ Settings you have entered are displayed on the screen with graphs and texts. Audio Level Center Maker Tally Display Timecode Display Audio Level meter [ Left ] meter [ Right ] CH-1 CH-2 CH-3 CH-4 CH-5 CH-6... -
Page 9: Connecting To Bnc Signal Device
Connecting to Various Signals ■ ■ HDMI signal HDMI signal 3Gbps~270Mbps Signal Formats Signal Formats INPUT OUTPUT INPUT OUTPUT ○ ○ ○ ○ 1080 60P 1080 60P 425M(3G) 4 : 2 : 2 ○ ○ ○ ○ 1080 50p 1080 50p ○... -
Page 10: Composite Input Signal Format
■ Component Composite Component Input signal Composite Input signal 1.0Vpp (Y with Sync), 0.7Vpp (Pb,Pr) 1.0Vpp (with Sync) Input Signal Formats Input Signal Formats HLE-1853G HLE-1853G ○ 480 50i NTSC ○ ○ 480 60i ○ ○ 480 60p SECAM ○... -
Page 11: Video
VIDEO ■ ▶ Video ▶ Color model Color Temp Main - Select your preferred color temperature settings [ User, 9300K, 7500K, 6500K ] RED gain - adjusts R, G, B Gain GREEN gain - selectable level between [ 0min ~ 100max ] BLUE gain RED bias - adjusts R, G, B Bias or Offset... -
Page 12: Aspect Menu
Aspect ▶ Aspect ▶ ■ Scan Main Scan - This product supports various scan modes [ Zreoscan, Underscan, Overscan ] Zeroscan Underscan Overscan Zooms in/out of the image without Zooms in/out of the image without Zooms in/out of the image to 96% changing the aspect ratio. -
Page 13: Anamorphic
Aspect (cont'd) ▶ Aspect ▶ Anamorphic ■ Anamorphic Main - Select your preferred anamorphic type among 17 options 1. 1.37:1 10. 2.35:1 (cinema) 2. 1.50:1 11. 2.37:1 (3:2) 3. 1.55:1 12. 2.39:1 (14:9) (widescreen) 4. 1.60:1 13. 2.40:1 (16:10) (widescreen) 5. -
Page 14: A/V Scope
A/V Scope ▶ A/V Scope ▶ ■ Scope Position Main Scope Position - Used to change the position of scopes [ Right/Bottom, Right/Top, Left/Bottom, Left Top ] ▶ A/V Scope ▶ ■ Waveform Enable Main Waveform Enable - Used to turn on waveform on the screen [ On, Off ] ▶... -
Page 15: Setting
Setting ■ ▶ Setting ▶ OSD Main - Used to change options in on-screen display Language English OSD Blend used to change the transparency level of OSD [ 0 (opaque) ~ 10 (transparent) ] OSD Position used to change the position of OSD [ Left/Top, Center/Top, Right/Top, Left/Middle, Center/Middle, Right/Middle, Left/Bottom, Center/Bottom, Right/Bottom ] ■... -
Page 16: Advanced
Advanced ■ ▶ Advanced ▶ Input Output Input Output Main - Used to control input and output signal including embedded converter HDMI Output Source select output signal [ Disable, SDI, Display, HDMI/ADC ] Color Format select color space [ RGB, 4:2:2, 4:4:4 ] RGB Range Select color range of RGB color format [ 0-255, 16-235 ] YCbCr Range... -
Page 17: System Info
Advanced (cont'd) ■ ▶ Advanced ▶ System Info System Info Main - Used to control all additional updates Firmware Version displays current firmware version FPGA Version displays current FPGA version ■ ▶ Advanced ▶ H Flip H Flip Main - Used to reverse the display image horizontally [ On, Off ] *remark: OSD also flips which gives difficulty to read OSD menu ■... -
Page 18: Accessory
Specification ■ Specifications HLE-1853G Product Size 18.5 inch Resolution 1366 X 768 (16:9) Back light Type Color Depth 16.7M (8 Bit) Lcd spec viewing Angle 178°(H) / 178°(V) (Typ.) Luminance (Max.) 250 cd/m² Contrast Ratio 1000 : 1 Display Area... -
Page 19: Specification
OPERATION MANUAL © Nov. 2012 by Ikegami Electronics (Europe) GmbH □ All rights reserved. Reproduction or duplication, without permission of Ikegami Electronics (Europe) of edition or contents in whole in part, any manner, is prohibited. □ Specifications and design are subject to change without notice...
