User's Guide
TPS7A13EVM-057 Evaluation Module
This user's guide describes the operational use of the TPS7A13EVM-057 evaluation module (EVM) as a
reference design for engineering demonstration and evaluation of the TPS7A13 low-dropout linear regulator
(LDO). Included in this user's guide are setup and operating instructions, thermal and layout guidelines, a
printed-circuit board (PCB) layout, a schematic diagram, and a bill of materials (BOM).
Throughout this document, the terms evaluation board, evaluation module, and EVM are synonymous with the
TPS7A13EVM-057.
1
Trademarks..............................................................................................................................................................................2
2
Introduction.............................................................................................................................................................................3
3
Setup........................................................................................................................................................................................3
Operation...................................................................................................................................................5
3.4 Optional Load Transient Circuit Operation.........................................................................................................................
Layout...........................................................................................................................................................................9
Schematic.....................................................................................................................................................11
6 Bill of Materials.....................................................................................................................................................................
SBVU074 - NOVEMBER 2021
Submit Document Feedback
ABSTRACT

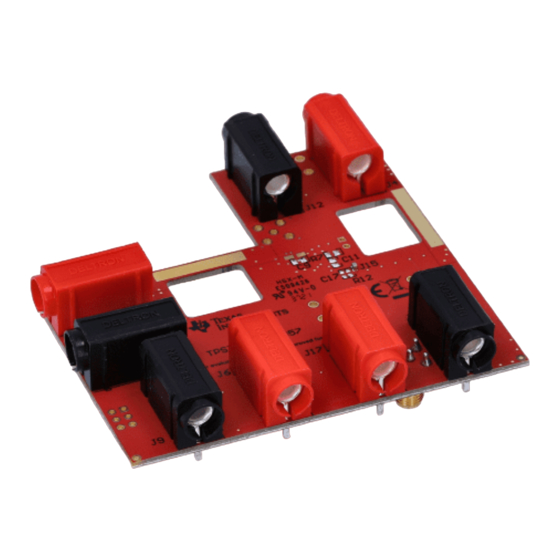

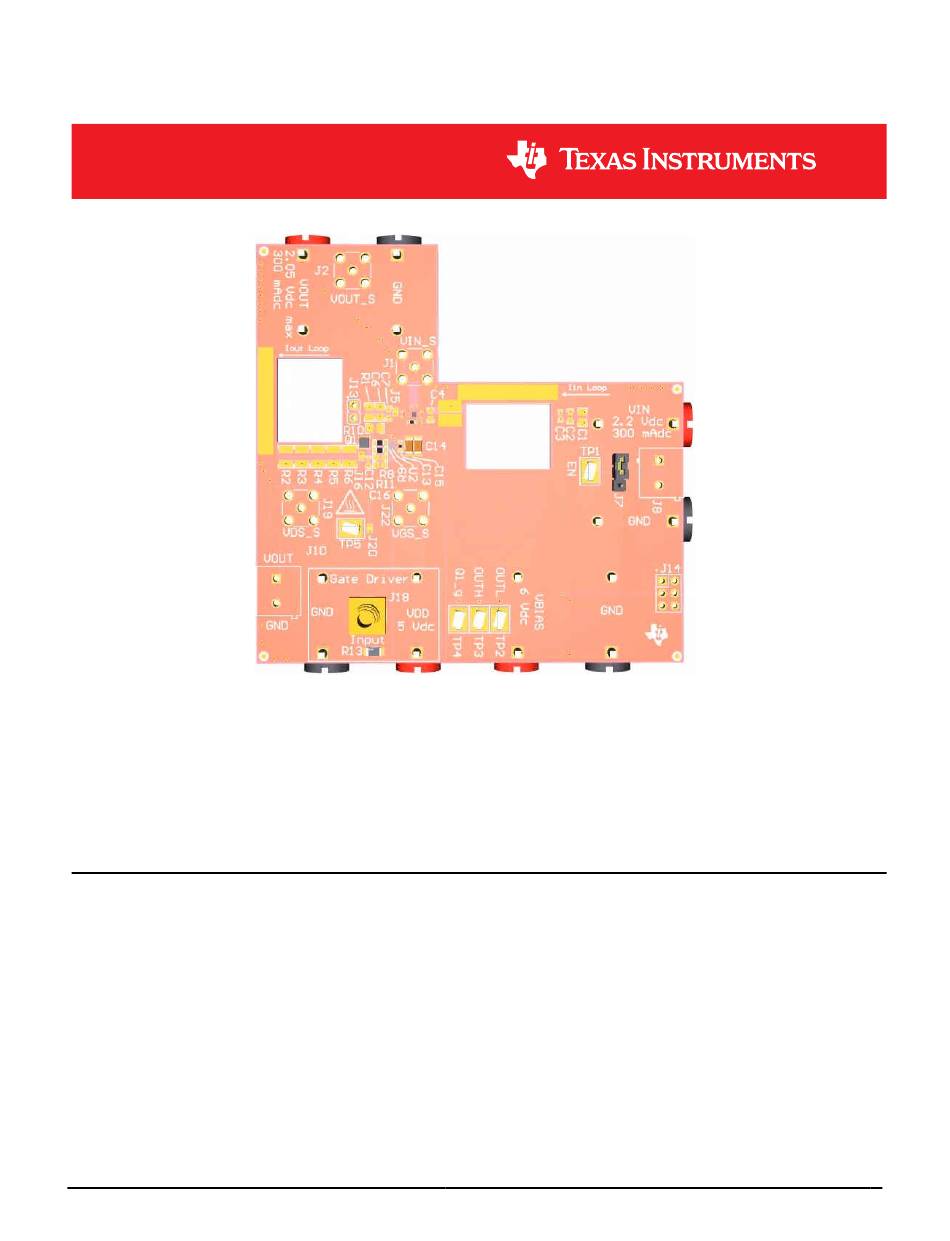

Figure 1-1. TPS7A13EVM-057 Evaluation Module
Table of Contents
Descriptions.........................................................................................................................3
Descriptions..........................................................................................3
Copyright © 2021 Texas Instruments Incorporated
Table of Contents
TPS7A13EVM-057 Evaluation Module
6
12
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments TPS7A13EVM-057
Summary of Contents for Texas Instruments TPS7A13EVM-057
-
Page 1: Table Of Contents
ABSTRACT Figure 1-1. TPS7A13EVM-057 Evaluation Module This user's guide describes the operational use of the TPS7A13EVM-057 evaluation module (EVM) as a reference design for engineering demonstration and evaluation of the TPS7A13 low-dropout linear regulator (LDO). Included in this user's guide are setup and operating instructions, thermal and layout guidelines, a printed-circuit board (PCB) layout, a schematic diagram, and a bill of materials (BOM). - Page 2 List of Figures Figure 1-1. TPS7A13EVM-057 Evaluation Module........................Figure 3-1. TPS7A13EVM-057 Turn On............................Figure 3-2. TPS7A13EVM-057 With Current Probes Attached....................Figure 3-3. TPS7A13EVM-057 Load Transient Results: 1-mA to 300-mA Load Step..............7 Figure 3-4. TPS7A13EVM-057 Load Transient Results: 300-mA to 1-mA Load Step..............8 Figure 4-1.
-
Page 3: Introduction
Introduction 2 Introduction The Texas Instruments' TPS7A13EVM-057 evaluation module (EVM) helps designers evaluate the operation and performance of the TPS7A13 LDO voltage regulator. As shown in Table 2-1, the TPS7A13EVM-057 contains one TPS7A13 LDO voltage regulator in the DSBGA package. An optional load transient circuit is also included to assist the user with high-speed load transient testing. - Page 4 EVM. 3.2.9 TP5 TP5 is the enable pin to enable the gate driver device. Tie this pin to GND to enable the gate driver. TPS7A13EVM-057 Evaluation Module SBVU074 – NOVEMBER 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
-
Page 5: Tps7A13 Ldo Operation
TPS7A13 LDO after VIN is applied. Figure 3-1 shows the result of the TPS7A13EVM-057 during turn on. The blue trace is the enable voltage, and the red trace is the output voltage. Figure 3-1. TPS7A13EVM-057 Turn On SBVU074 – NOVEMBER 2021... -
Page 6: Optional Load Transient Circuit Operation
Optional kelvin sense points are provided using the SMA connectors J1 (VIN) and J2 (VOUT). 3.4 Optional Load Transient Circuit Operation The TPS7A13EVM-057 evaluation module contains an optional high-performance load transient circuit to allow efficient testing of the TPS7A13 LDO load transient performance. To use the optional load transient circuit, install the correct components in accordance with the application. -
Page 7: Figure 3-3. Tps7A13Evm-057 Load Transient Results: 1-Ma To 300-Ma Load Step
The resulting test data shows a 1-mA to 300-mA load step on VOUT of the LDO, with only a 1-μF capacitor on the output of the LDO. Figure 3-3. TPS7A13EVM-057 Load Transient Results: 1-mA to 300-mA Load Step SBVU074 – NOVEMBER 2021... -
Page 8: Figure 3-4. Tps7A13Evm-057 Load Transient Results: 300-Ma To 1-Ma Load Step
Setup www.ti.com Figure 3-4. TPS7A13EVM-057 Load Transient Results: 300-mA to 1-mA Load Step TPS7A13EVM-057 Evaluation Module SBVU074 – NOVEMBER 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 9: Board Layout
Figure 4-6 show the board layout for the TPS7A13EVM-057 PCB. The TPS7A13EVM-057 dissipates power, which may cause some components to experience an increase in temperature. The TPS7A13 LDO, LMG1020YFFR gate driver, and pulsed resistors R2, R3, R4, R5, and R6 are most at risk of raising to a high junction temperature during normal operation. -
Page 10: Figure 4-5. Bottom Layer Routing
Board Layout www.ti.com Figure 4-6. Bottom Assembly Layer and Silk Figure 4-5. Bottom Layer Routing Screen TPS7A13EVM-057 Evaluation Module SBVU074 – NOVEMBER 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 11: Tps7A13 Evm Schematic
TPS7A13 EVM Schematic 5 TPS7A13 EVM Schematic Figure 5-1 shows a schematic for the TPS7A13EVM-057. Re vis ion His tory ECN # Approved Da te Approved by Notes VOUT BIAS SENSE BIAS SENSE Vout Ma x = 2.05V Vin Re comme nde d Ma x = 2.2V... -
Page 12: Bill Of Materials
TPS7A13 EVM Schematic www.ti.com 6 Bill of Materials Table 6-1 shows the bill of materials for the TPS7A13EVM-057. Table 6-1. Bill of Materials Designator Quantity Value Description PackageReference PartNumber Manufacturer Alternate Alternate PartNumber Manufacturer !PCB1 Printed Circuit Board LP057 C5, C8 1µF... - Page 13 RES, 0, 5%, 0.125 W, AEC-Q200 Grade ERJ-6GEY0R00V Panasonic 0, 0805 R11, R12 RES, 0, 1%, 0.1 W, AEC-Q200 Grade 0, RMCF0603ZT0R00 Stackpole 0603 Electronics Inc SBVU074 – NOVEMBER 2021 TPS7A13EVM-057 Evaluation Module Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
