- Page 1 Ordercode: D3588 D3589 D3590 D3591 D3494 D3595 D3592 D3593 Productname: Splash 8A Splash 10A Splash 12A Splash 15A Splash 8 Splash 10 Splash 12 Splash 15 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Connection with the mains ............................4 Return Procedure ................................4 Claims ....................................4 Features ....................................5 Panel Description Splash 8A/10A12A/15A ....................... 6 Panel Description Splash 8/10/12/15 ......................... 7 Connection Example 8A/10A/12A/15A ........................8 Connection Example 8/10/12/15 ..........................9 Floor monitor setup ..............................10 Connection Cables .................................11 Technical Specifications ..............................12... -
Page 3: Warning
Splash Series Active / Passive Warning FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 4 Splash Series Active / Passive Do not insert objects into air vents. Do not open this device. Risk: hazardous radiation exposure. Do not run the output of any amplifier channel, back into another channel’s input. Do not switch the system on and off in short intervals, as this would reduce the system’s life. ...
-
Page 5: Connection With The Mains
Splash Series Active / Passive Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE... -
Page 6: Features

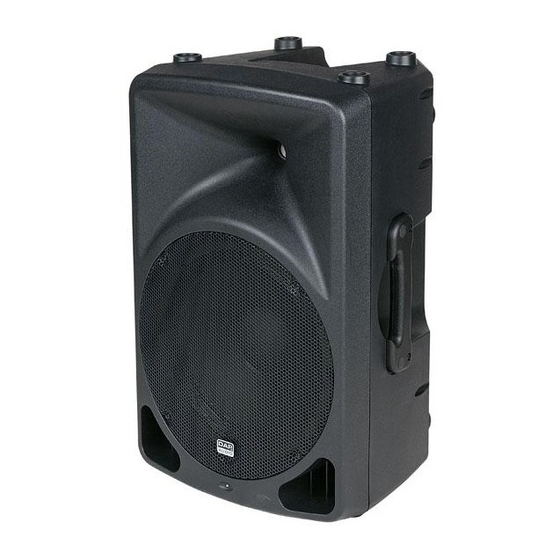

Splash Series Active / Passive Features The Splash series is a line of lightweight and easy to handle speakers. In this series, DAP Audio managed to combine good acoustics with state-of-the-art technology for a very affordable price. The robust housing features 3 grips for easy handling, transportation and a pole mount. The special shaped side and the excellent gain before feedback makes it also possible to use the Splash series as a stage monitor speaker. -
Page 7: Panel Description Splash 8A/10A12A/15A
Splash Series Active / Passive Panel Description Splash 8A/10A12A/15A Line/MIC input on combo connector. Input sensitivity – switch for Line or MIC. Link out. Main Volume control. Clip indicator. Power indicator. Countour on/off “Contour ON” preset is to equalize the mix for optimal music play back. -
Page 8: Panel Description Splash 8/10/12/15
Splash Series Active / Passive Panel Description Splash 8/10/12/15 INPUT: Receive the power coming from an external power amplifier (SPK +1/-1 connected; +2 -2 not connected) THRU: Direct LINK for connecting in parallel a second speaker cabinet (SPK +1/-1 connected; +2 -2 not connected). -
Page 9: Connection Example 8A/10A/12A/15A
Splash Series Active / Passive Connection Example 8A/10A/12A/15A Ordercode: D3588 – D3595... -
Page 10: Connection Example 8/10/12/15
Splash Series Active / Passive Connection Example 8/10/12/15 Ordercode: D3588 – D3595... -
Page 11: Floor Monitor Setup
Splash Series Active / Passive Floor monitor setup Ordercode: D3588 – D3595... -
Page 12: Connection Cables
Splash Series Active / Passive Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 13: Technical Specifications
Splash Series Active / Passive Technical Specifications Splash 8A System: Bi-Amp 2-Way Active Speaker Continuous power: Low 90W / High 30W Horn Coverage: 90° H x 45° V S/N Ratio: Low > 80dBu / Hi > 65dBu Indicators: Power & Signal/Limit Power supply: 100-240VAC, 50/60Hz External controls:... -
Page 14: Splash 12A
Splash Series Active / Passive Splash 12A System: Bi-Amp 2-Way Active Speaker Continuous power: Low 150W / High 50W Horn Coverage: 90° H x 45° V S/N Ratio: Low > 80dBu / Hi > 65dBu Indicators: Power & Signal/Limit Power supply: 110-120V-60Hz / 220-240V - 50/60Hz External controls: Volume / Sensitivity Switch / Contour Switch / Ground lift... -
Page 15: Splash 8
Splash Series Active / Passive Splash 8 System: Passive 2-Way Full-range Speaker Continuous power: 100W Peak power: 400W Horn Coverage: 90° H x 45° V SPL@1m: 113dB Max Frequency Response: 68Hz-20kHz (-6dB) Impedance 8Ω Crossover Frequency: 2200Hz Woofer: 8"Woofer,1.5"Voice Coil Driver: 1"... -
Page 16: Splash 12
Splash Series Active / Passive Splash 12 System: Passive 2-Way Full-range Speaker Continuous power: 200W Peak power: 400W Horn Coverage: 90° H x 45° V SPL@1m: 119 dB (Max.) Frequency Response: 55Hz - 20kHz (- 6dB) Impedance 8Ω Crossover Frequency: 3500Hz Woofer: 12"... -
Page 17: Frequency Response Diagram
Splash Series Active / Passive Frequency Response Diagram Splash 8A Splash 10A Splash 12A Splash 15A Ordercode: D3588 – D3595... - Page 18 Splash Series Active / Passive Splash 8A Splash 10A Splash 12A Splash 15A Ordercode: D3588 – D3595...
-
Page 19: Troubleshooting
Splash Series Active / Passive Troubleshooting This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps. - Page 20 ©2014 DAP Audio...
