GESTRA LRR 1-50 Original Installation & Operating Manual

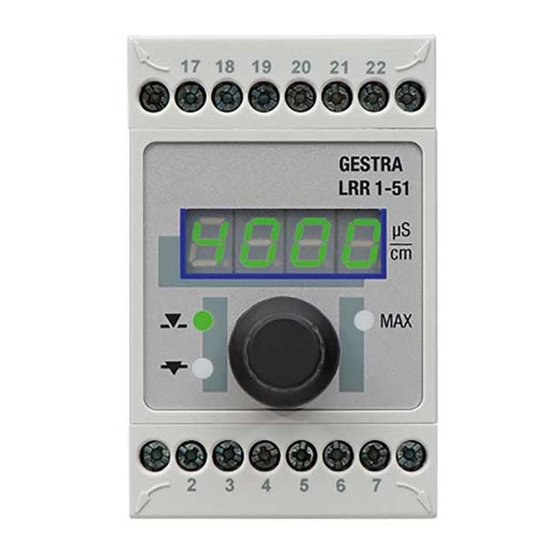

Conductivity controller
Hide thumbs
Also See for LRR 1-50:
- Installation & operating instructions manual (28 pages) ,
- Original installation & operating manual (36 pages)
Subscribe to Our Youtube Channel
Related Manuals for GESTRA LRR 1-50
Summary of Contents for GESTRA LRR 1-50
- Page 1 Conductivity Controller LRR 1-50 LRR 1-51 Original Installation & Operating Manual 819224-05 E n g l i s h...
-
Page 2: Table Of Contents
TRG 5-.. resistance thermometer ....................15 Connecting an LRG 16-9 conductivity electrode ..................15 Wiring diagram for LRGT 1.-.. conductivity transmitter ................16 Connecting the actual value output ......................16 Tools ..............................16 LRR 1-50, LRR 1-51 - Installation & Operating Manual - 819224-05... - Page 3 LRR 1-50 conductivity controller: Setting switchpoints and parameters ........... 22-23 LRR 1-51 conductivity controller: Setting switchpoints and parameters ..........24 Operation, alarm and testing Conductivity controllers LRR 1-50, LRR 1-51: Checking the displays and the function of the MAX output contact ............................25 Password protection ..........................26 Troubleshooting Indications, diagnosis and remedies ......................27...
-
Page 4: Important Notes
Conductivity controllers can be combined in a circuit with conductivity electrodes or transmitters as follows: LRR 1-50 conductivity controller with LRG 12-2, LRG 16-4, LRG 16-9, LRG 17-1 and LRG 19-1 conductivity electrodes; LRR 1-51 conductivity controller with LRGT 16-1, LRGT 16-2, LRGT 16-3, LRGT 16-4, LRGT 17-3 and LRGT 17-1 conductivity transmitters. -
Page 5: Function
MAX alarm is triggered and the continuous blowdown valve moves into OPERATING position. If malfunctions occur only in the LRR 1-50, LRR 1-51 conductivity controller, the MAX alarm is trig- gered, the continuous blowdown valve moves into OPERATING position and the equipment is restarted. -
Page 6: Safety Note
The name plate indicates the technical features of the equipment. Do not bring into ser- vice or operate any equipment that does not bear its own specific name plate. LRR 1-50, LRR 1-51 - Installation & Operating Manual - 819224-05... -
Page 7: Directives And Standards
VdTÜV Bulletin “Wasserüberwachung 100” (Water Monitoring 100) The LRR 1-50, LRR 1-51 conductivity controller, in combination with the LRG 1.-.. conductivity elec- trode and LRGT 1.-.. conductivity transmitter, has type approval in accordance with VdTÜV Bulletin “Wasserüberwachung 100”. The VdTÜV Bulletin “Wasserüberwachung 100” describes the require- ments for water monitoring equipment. -
Page 8: Technical Data
Pollution degree 2 for installation in control cabinet with protection rating IP 54, fully insulated IP rating Housing: IP 40 to EN 60529 Terminal strip: IP 20 to EN 60529 With panel adapter: IP 65 to EN 60529 Weight Approx. 0.2 kg LRR 1-50, LRR 1-51 - Installation & Operating Manual - 819224-05... -
Page 9: Lrr 1-50 Only
1 conductivity controller LRR 1-50 1 conductivity controller LRR 1-51 1 adhesive sign for ppm 1 adhesive sign for ppm 1 Installation & Operating Manual 1 Installation & Operating Manual LRR 1-50, LRR 1-51 - Installation & Operating Manual - 819224-05... -
Page 10: Name Plate/Identification
Name plate of LRR 1-51, bottom Fig. 1 Fuse, provided Connection on site of conductivity transmitter Power consumption Connection of actual value output Supply voltage Disposal note Type approval number LRR 1-50, LRR 1-51 - Installation & Operating Manual - 819224-05... -
Page 11: Installation
The advantage of using the adapter is that the status is visible and alarms can be tested without open- ing the control cabinet door. When installed, the adapter has a rating of IP65. Please refer to the panel adapter Installation & Operating Manual 850625-xx for further information. LRR 1-50, LRR 1-51 - Installation & Operating Manual - 819224-05... -
Page 12: Dimensions Of The Lrr 1-50, Lrr 1-51
Support rail TH 35, EN 60715 Installation in a control cabinet The LRR 1-50, LRR 1-51 conductivity controller is clipped onto a type TH 35, EN 60715 support rail in the control cabinet. Fig. 1 4 LRR 1-50, LRR 1-51 - Installation & Operating Manual - 819224-05... -
Page 13: In The Control Cabinet: Wiring The Conductivity Controller
Actual value output 4-20 mA MAX output contact LRG 1.-.. conductivity electrode (terminal 6/7: Supply voltage L2 resistance thermometer can be connected) Supply voltage N Central earthing point (CEP) in control cabinet LRR 1-50, LRR 1-51 - Installation & Operating Manual - 819224-05... -
Page 14: Wiring Diagram For Lrr 1-51 Conductivity Controller
0.5A provided on site Supply voltage L2 Actual value output 4-20 mA Supply voltage N LRGT 1.-.. conductivity transmitter, 4-20 mA, with earthing point Central earthing point (CEP) in control cabinet LRR 1-50, LRR 1-51 - Installation & Operating Manual - 819224-05... -
Page 15: Supply Voltage Connection
Connected inductive loads must therefore have interference suppression (RC combination) as per the manufacturer's specifications. If used as a conductivity limiter, the LRR 1-50, LRR 1-51 conductivity controller does not interlock auto- matically when the MAX limit is exceeded. -
Page 16: Wiring Diagram For Lrgt 1
(SELV). Attention Do not use unused terminals as support terminals. Tools Screwdriver size 3.5 x 100 mm, fully insulated to VDE 0680-1. LRR 1-50, LRR 1-51 - Installation & Operating Manual - 819224-05... -
Page 17: In The System: Wiring The Conductivity Electrode/Transmitter
This control cable is not UV-resistant and must be protected with a UV-resistant plastic tube or cable duct if the equipment is installed outdoors. To connect the LRR 1-50 conductivity controller, please remove the connector and wire the terminal strip as shown in the wiring diagram. Fig. 3 Connect the shield to the central earthing point (CEP) in the control cabinet. -
Page 18: Factory Settings
3 min then closes for 3 min) Damping FiLt: oFF Damping FiLt: oFF Password PW: oFF Password PW: oFF Code switch a : Code switch a : S1=OFF, S2=ON, S3=OFF, S4=OFF S1=OFF, S2=ON, S3=OFF, S4=OFF LRR 1-50, LRR 1-51 - Installation & Operating Manual - 819224-05... -
Page 19: Changing The Factory Settings
* Controller software version 311178.13 or later Attention Do not change the settings of switches S1 and S2 on code switch a! Tools Screwdriver size 3.5 x 100 mm, fully insulated to VDE 0680-1. LRR 1-50, LRR 1-51 - Installation & Operating Manual - 819224-05... -
Page 20: Operating The Conductivity Controller
Temperature sensor defective, temperature reading too low E.002 Error Temperature sensor defective, temperature reading too high E.005 Error Acquired reading defective, reading too low E.006 Error Acquired reading defective, reading too high LRR 1-50, LRR 1-51 - Installation & Operating Manual - 819224-05... -
Page 21: Bringing Into Service
Or after 30s, the actual value is displayed automatically. If password protection is enabled, you must enter the password before you can change parameters. For the password, see page 26. LRR 1-50, LRR 1-51 - Installation & Operating Manual - 819224-05... -
Page 22: Lrr 1-50 Conductivity Controller: Setting Switchpoints And Parameters
Select parameter Si, enter and save the desired time. Set the flushing interval between 0 and 24 hours. Select parameter Sd, enter and save the desired time. Set the flushing time between 1 and 4 minutes. LRR 1-50, LRR 1-51 - Installation & Operating Manual - 819224-05... - Page 23 New calibration value has been accepted and donE a corresponding CF value calculated. Press and hold the pushbutton (on rotary knob). CF value is outside the admissible range. PF.Er Previous calibration has been retained. LRR 1-50, LRR 1-51 - Installation & Operating Manual - 819224-05...
-
Page 24: Lrr 1-51 Conductivity Controller: Setting Switchpoints And Parameters
Select parameter Si, enter and save the desired time. Set the flushing interval between 0 and 24 hours. Select parameter Sd, enter and save the desired time. Set the flushing time between 1 and 4 minutes. LRR 1-50, LRR 1-51 - Installation & Operating Manual - 819224-05... -
Page 25: Operation, Alarm And Testing
Operation, alarm and testing Conductivity controllers LRR 1-50, LRR 1-51: Checking the displays and the function of the MAX output contact Operation Action Indication Function The actual value is shown on the 7-segment display. Valve output contact 19/17 closed, MAX output Actual value <... -
Page 26: Password Protection
Disabled password protection is re-enabled after 30 minutes with no activity (rotary knob). The password must be entered again. When the equipment is restarted, the parameters are password-protected, if password protection was previously enabled. LRR 1-50, LRR 1-51 - Installation & Operating Manual - 819224-05... -
Page 27: Troubleshooting
In the event of a malfunction in the conductivity controller, the MAX alarm is triggered and the equipment restarts. If the process is continually repeated, the equipment must be replaced. LRR 1-50, LRR 1-51 - Installation & Operating Manual - 819224-05... -
Page 28: Further Information
In the event of malfunctions or faults that cannot be remedied with the aid of this Installation & Operat- ing Manual, please contact our service centre or authorised agent in your country. LRR 1-50, LRR 1-51 - Installation & Operating Manual - 819224-05... - Page 29 For your notes LRR 1-50, LRR 1-51 - Installation & Operating Manual - 819224-05...
- Page 30 For your notes LRR 1-50, LRR 1-51 - Installation & Operating Manual - 819224-05...
- Page 31 For your notes LRR 1-50, LRR 1-51 - Installation & Operating Manual - 819224-05...
- Page 32 You can find our authorised agents around the world at: www.gestra.com GESTRA AG Münchener Straße 77 28215 Bremen Germany Tel. +49 421 3503-0 +49 421 3503-393 E-mail info@de.gestra.com Website www.gestra.com 819224-05/11-2021cm (808889-05) · GESTRA AG · Bremen · Printed in Germany...
