Sunny Health & Fitness SF-RW5941 User Manual

Multifunction spm magnetic rowing machine
Hide thumbs Also See for SF-RW5941:
Table of Contents

Advertisement

Quick Links

Download this manual

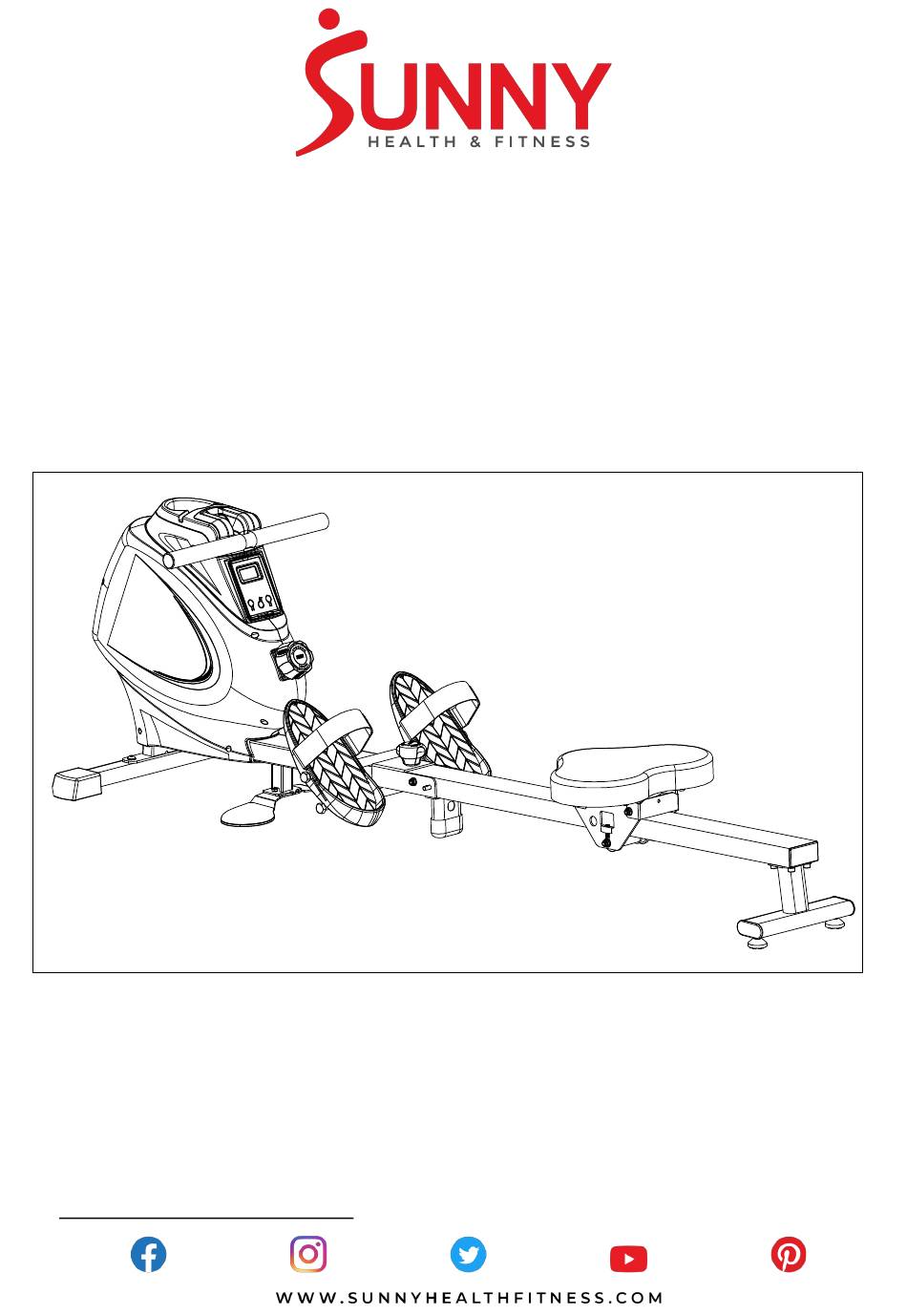

MULTIFUNCTION SPM MAGNETIC
ROWING MACHINE
SF-RW5941
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-RW5941 and is the answer not in the manual?

Questions and answers

Related Manuals for Sunny Health & Fitness SF-RW5941

Summary of Contents for Sunny Health & Fitness SF-RW5941

  • Page 1 MULTIFUNCTION SPM MAGNETIC ROWING MACHINE SF-RW5941 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.

  • Page 3: Exploded Diagram

    EXPLODED DIAGRAM 1...

  • Page 4: Hardware Package

    EXPLODED DIAGRAM 2 HARDWARE PACKAGE...

  • Page 5: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame 33L/R Pedal L/R Sliding Rail Pedal Strap Front Stabilizer Screw M8*15 Rear Stabilizer Left End Cap Handlebar Right End Cap Seat Screw ST4.2*20 Washer φ8*φ16*1.5 End Cap Spring Washer φ8 Round End Cap Bolt M8*20...
  • Page 6 Description Spec. Description Spec. Water Bottle Holder Battery Screw ST4.2*15 Bolt M5*15 Clip Spanner S10, 13, 14, 15 Left Foot Pad Spanner S10, 13, 17, 19 Right Foot Pad Allen Wrench Screw ST4.2*25 Bolt M6*15 Cover Fixed Column Left Anti-slip Mat Computer Right Anti-slip Mat Computer Wire A...
  • Page 7 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: Attach the Front Stabilizer (No. 3) to the Main Frame (No. 1) using 2 Screws (No.
  • Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: Slide the Seat (No. 6) into the Sliding Rail (No. 2). STEP 4: Attach the Rear Stabilizer (No. 4) to the Sliding Rail (No.
  • Page 9 ADJUSTMENTS & USAGE GUIDE CAUTION! Moving parts, such as the seat, can cut and crush. Keep hands clear of the sliding rail during use! PEDAL STRAP ADJUSTMENT The pedal strap is adjustable and can be personalized to fit the user’s foot size. MOVING THE ROWER To move the rower, lift the Rear Stabilizer (No.

  • Page 10: Battery Installation And Replacement

    BATTERY INSTALLATION & REPLACEMENT BATTERY INSTALLATION: 1. Press the buckle on the bottom of Computer (No. 70), then remove Computer (No. 70) from Main Frame (No. 1). Disconnect the Sensor Wires A & B (No. 54A & No. 54B) and the Computer Wires A &...

  • Page 11: Storage Guide

    STORAGE GUIDE Figure A CAUTION! CAUTION! Use caution when you The Seat (No. 6) will vertically fold the Sliding glide down when folding Rail (No. 2) as your head touch Rear the Sliding Rail (No. 2)! Stabilizer (No. 4). Figure B When not in use, you can save space by folding the Sliding Rail (No.

  • Page 12: Using The Machine

    USING THE MACHINE The Multifunction SPM Magnetic Rowing Machine lets you work out in multiple ways. You can use it as a traditional rowing machine or use it to do upper body strength exercises. When using it as a rowing machine, make sure to put your feet in the Pedals (No. 33L/R) and use the straps.

  • Page 13: Exercise Computer

    EXERCISE COMPUTER FUNCTION KEYS: MODE: To select your specification mode and/or turn on computer. SET: To set a value of Time, Count, or Calories (when not in Scan mode). RESET: Press to reset Time, Count, or Calories. Press and hold for about 3 seconds to reset all values, except Total Count.
