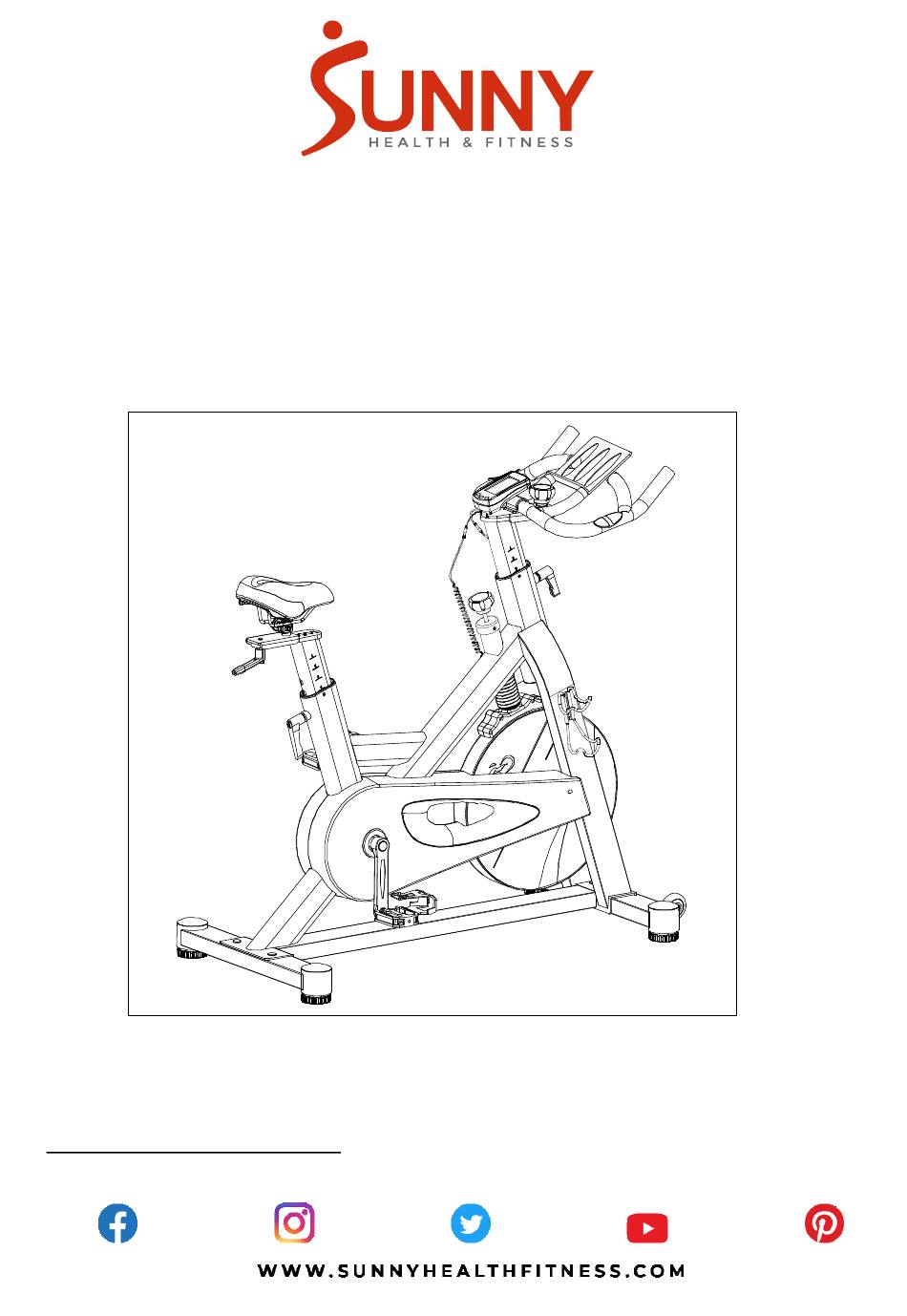

EVOLUTION PRO II MAGNETIC BELT
DRIVE INDOOR CYCLING BIKE
SF-B1986
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVOLUTION PRO II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sunny Health & Fitness EVOLUTION PRO II

  • Page 1 EVOLUTION PRO II MAGNETIC BELT DRIVE INDOOR CYCLING BIKE SF-B1986 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.
  • Page 3: Exploded Diagram

    EXPLODED DIAGRAM...
  • Page 4: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Self-tapping Screw M4.2x10 Front Stabilizer 40x80x2T Hex Bolt M6x35 Rear Stabilizer 40x80x2T Idle Wheel Fixture Handlebar Post 40x80x2T Nylon Nut M10x9T Seat Post 40x80x2T Steel Sleeve Φ25.1x32x10T Handlebar Φ25.4x2T Steel Bearing 6005-2RS Seat Column C-ring...
  • Page 5: Hardware Package

    HARDWARE PACKAGE #23 M10X28 1PC #22 M10 1PC #35 M10 4PCS #24 M10 #36 M10x55 4PCS #25 d19.5xФ38x2T 1PC #37 d10xФ19x1.5T 4PCS #46 d10xФ29x2T 2PCS # 89 S14 S17 1PC # 90 S13 S15 1PC #93 S14 S17 S19 1PC #103 S4 1PC Ordering Replacement Parts (U.S.
  • Page 6 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: #35 M10 4PCS #35 M10 4PCS #89 S14 S17 1PC Attach Rear Stabilizer (No. 3) to Main #36 M10x55 4PCS #36 M10x55 4PCS Frame (No.
  • Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 4: #46 d10xФ29x2T 1PC #90 S13 S15 1PC Loosen 2 Nuts (No. 9A) on Seat (No. 9), and #22 M10x20 1PC then attach Seat Column (No.
  • Page 8: Battery Installation And Replacement

    BATTERY INSTALLATION AND REPLACEMENT BATTERY INSTALLATION: 1. Take out 2 AAA batteries from the Computer (No. 91) box. 2. Press the buckle of battery cover on the back of the Computer (No. 91), then remove battery cover. 3. Install 2 AAA batteries into the battery case on the back of the Computer (No. 91). Pay attention to the battery + and –...
  • Page 9: Exercise Computer

    EXERCISE COMPUTER FUNCTION BUTTONS MODE: Press to select the function displayed or enter value during setting mode. Press and hold for 2 seconds to enter the RACE MODE interface during stop mode. SET: To set up the target value of TARGET, TIME, DIST, and CAL. Press the button and hold for 2 seconds to speed up the increment during stop mode.
  • Page 10: Race Mode

    1. TARGET: the preset CADENCE. 2. In STOP mode, press SET key to enter the TARGET setting in stop mode. Press SET to increase the CADENCE five at a time. The setting change is 15 →20→ ……110→115→120→15→20 →……→115→120→ 15 →20→ …… 3.
  • Page 11: Pedal Strap Adjustment

    ADJUSTMENTS & USAGE GUIDE SEAT ADJUSTMENT SEAT ADJUSTMENT HANDLEBAR ADJUSTMENT Loosen the Spring Knob (No. 21) Loosen the L-shaped Knob (No. 22) Loosen the Spring Knob (No. 21) to to raise or lower the Seat Post (No. move seat forward raise or lower the handlebar to the 5) to the desired position.
  • Page 12 SPD TECHNICAL SERVICE INSTRUCTIONS Caution! Before use, read these instructions carefully.  Practice engaging and disengaging from the pedals several times in a stationary position before riding.  Before using, lubricate the concave area of the clip.  Keep the cleat and pedal clean to ensure proper usage. ...
  • Page 13: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS This is general information for daily, weekly and monthly maintenance to be performed on your bike. DAILY MAINTENANCE MONTHLY MAINTENANCE After each exercise session, wipe down all 1. Check if all hardware is secure, such as: the equipment: seat, frame, and handlebars. water bottle holder, flywheel nuts, belt/chain Pay special attention to the seat post, guard bolts, brake caliper lock nuts, and...
