2.

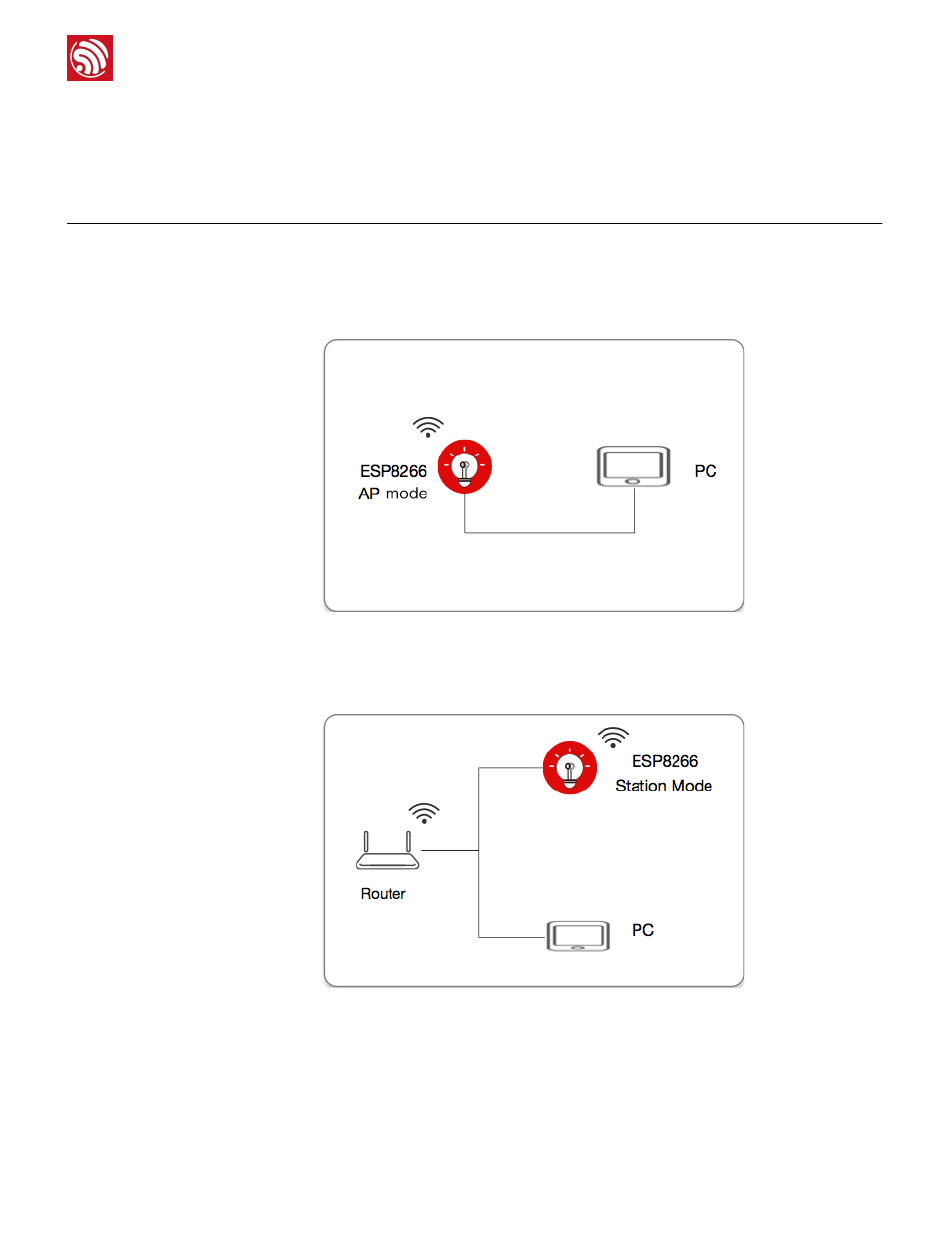

The architecture of the ping test demonstration is as follows:
When the ESP8266 runs in SoftAP mode, the architecture of the ping test
•
demonstration is as Figure 2-1 shows.
When the ESP8266 runs in Station mode, the architecture of the ping test
•
demonstration is as Figure 2-2 shows.
Espressif
Architecture of the
#
Figure 2-1. ESP8266 Running in SoftAP Mode
#
Figure 2-2. ESP8266 Running in Station Mode
# /# 2 19

2. Architecture of the Demonstration

Demonstration
2016.09
