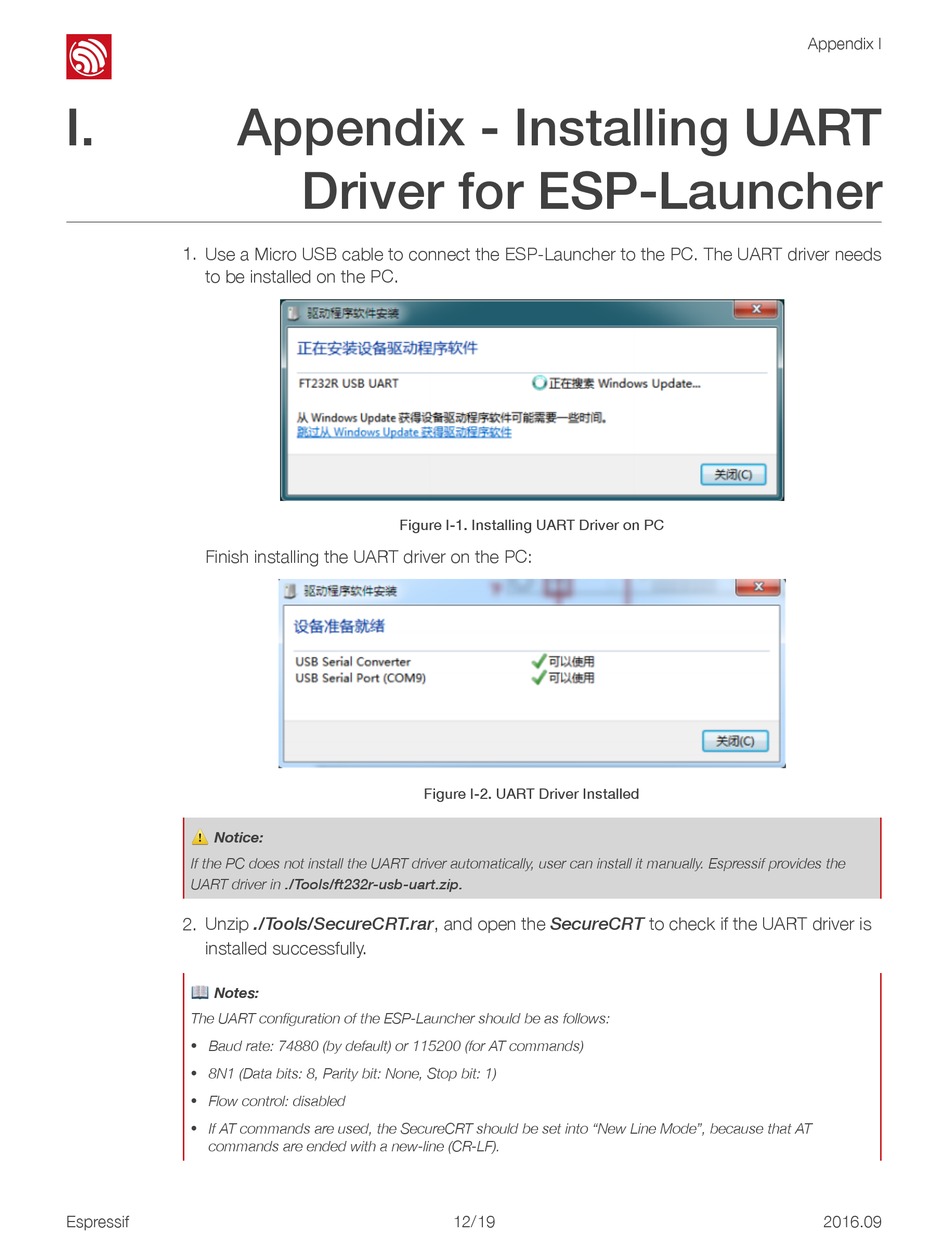

I. Appendix - Installing UART
1. Use a Micro USB cable to connect the ESP-Launcher to the PC. The UART driver needs
to be installed on the PC.
Finish installing the UART driver on the PC:
⚠ Notice:
If the PC does not install the UART driver automatically, user can install it manually. Espressif provides the
UART driver in ./Tools/ft232r-usb-uart.zip.
2. Unzip ./Tools/SecureCRT.rar, and open the SecureCRT to check if the UART driver is
installed successfully.
�� Notes:
The UART configuration of the ESP-Launcher should be as follows:
• Baud rate: 74880 (by default) or 115200 (for AT commands)
• 8N1 (Data bits: 8, Parity bit: None, Stop bit: 1)
• Flow control: disabled
• If AT commands are used, the SecureCRT should be set into "New Line Mode", because that AT
commands are ended with a new-line (CR-LF).
Espressif
Driver for ESP-Launcher
#
Figure Ⅰ-1. Installing UART Driver on PC
#
Figure Ⅰ-2. UART Driver Installed
