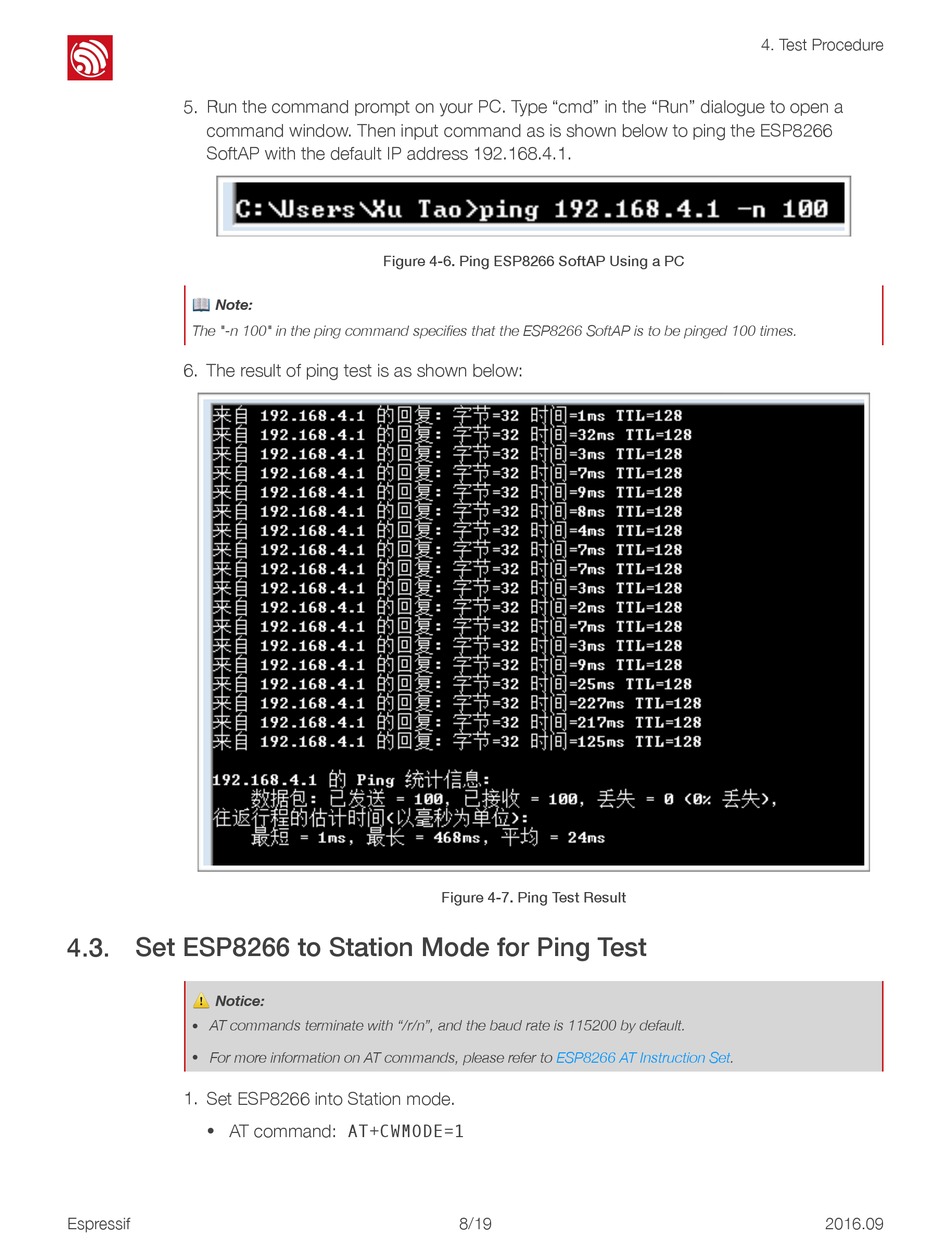

5. Run the command prompt on your PC. Type "cmd" in the "Run" dialogue to open a
command window. Then input command as is shown below to ping the ESP8266
SoftAP with the default IP address 192.168.4.1.
#
�� Note:
The "-n 100" in the ping command specifies that the ESP8266 SoftAP is to be pinged 100 times.
6. The result of ping test is as shown below:
#

4.3. Set ESP8266 to Station Mode for Ping Test

⚠ Notice:
AT commands terminate with "/r/n", and the baud rate is 115200 by default.
•
For more information on AT commands, please refer to
•
1. Set ESP8266 into Station mode.
AT command: AT+CWMODE=1
•
Espressif
Figure 4-6. Ping ESP8266 SoftAP Using a PC
Figure 4-7. Ping Test Result
ESP8266 AT Instruction
# /# 8 19
4. Test Procedure
Set.
2016.09
