Result:
•
2. Connect PC to a router. Suppose the SSID of the target router is "Smart1ap", and the
password is "espressif0-1".
3. Power up the ESP-Launcher, and connect ESP8266 to the same router by using the
following AT command.
AT command: AT+CWJAP_DEF="Smart1ap","espressif0-1"
•
Result:
•
�� Note:
Printed message "WIFI GOT IP" means that ESP8266 has established connection with the router
successfully and has been allocated an IP address.
4. Query the IP address of ESP8266.
AT command: AT+CIFSR
•
Result:
•
Espressif
#

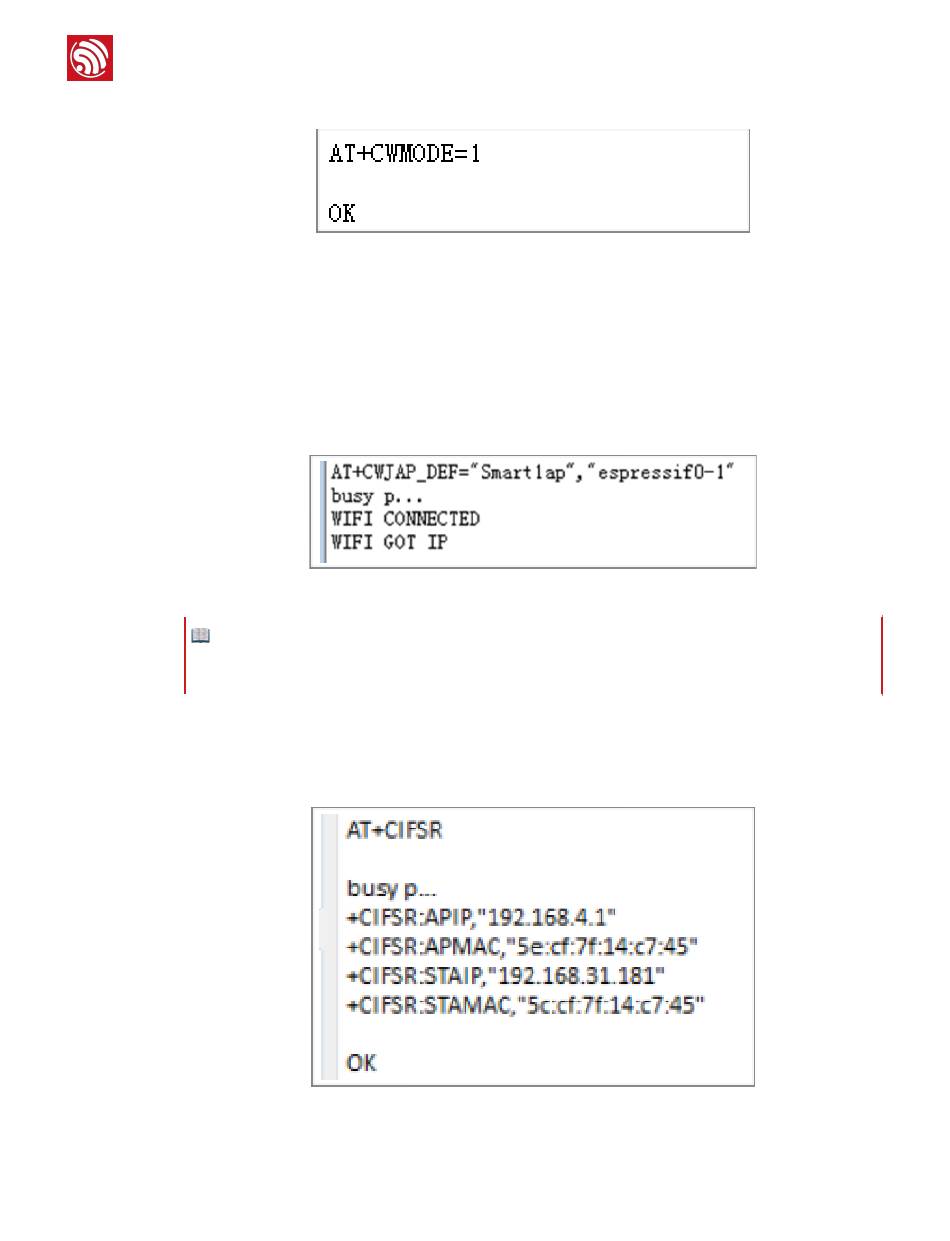

Figure 4-8. Setting ESP8266 into Station Mode
#
Figure 4-9. Connecting ESP8266 to the Router
#
Figure 4-10. Querying the IP Address of ESP8266
