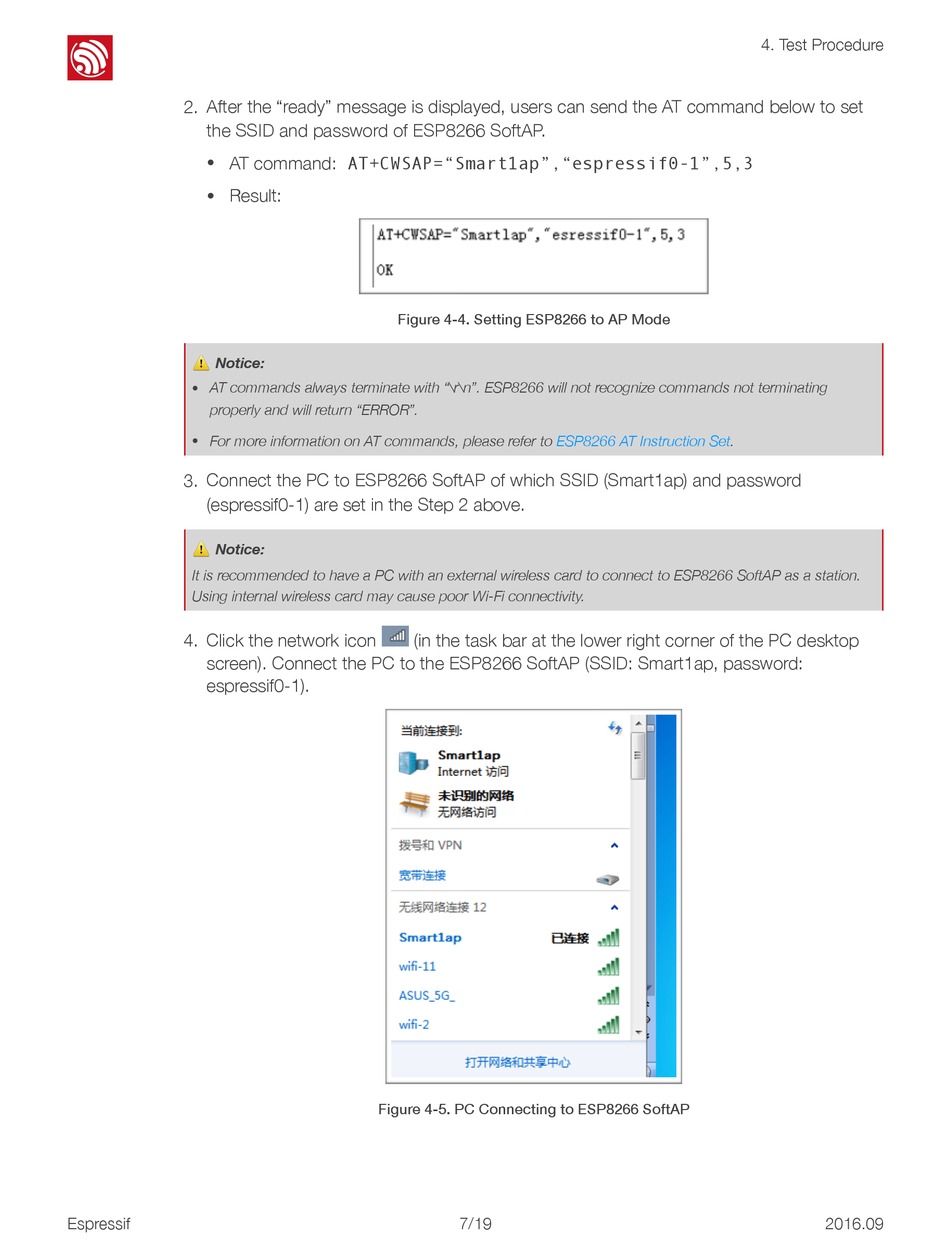

2. After the "ready" message is displayed, users can send the AT command below to set
the SSID and password of ESP8266 SoftAP.
AT command: AT+CWSAP="Smart1ap","espressif0-1",5,3
•
Result:
•
⚠ Notice:
AT commands always terminate with "\r\n". ESP8266 will not recognize commands not terminating
•
properly and will return "ERROR".
For more information on AT commands, please refer to
•
3. Connect the PC to ESP8266 SoftAP of which SSID (Smart1ap) and password
(espressif0-1) are set in the Step 2 above.
⚠ Notice:
It is recommended to have a PC with an external wireless card to connect to ESP8266 SoftAP as a station.
Using internal wireless card may cause poor Wi-Fi connectivity.
4. Click the network icon #
screen). Connect the PC to the ESP8266 SoftAP (SSID: Smart1ap, password:
espressif0-1).
Espressif
#
Figure 4-4. Setting ESP8266 to AP Mode
(in the task bar at the lower right corner of the PC desktop
#
Figure 4-5. PC Connecting to ESP8266 SoftAP
# /# 7 19
ESP8266 AT Instruction Set.
4. Test Procedure
2016.09
