STROMPI 3 CASE
RB-StromPi3-Case
1. GENERAL INFORMATION
Dear costumer,
Thank you for buying our product. The structure and functions of the
StromPi3 are explained in the following chapters. We show you which
settings must be adjusted that the Raspberry Pi will work with the Strom-
Pi perfectly.
If you get any difficulties with the usage with the device, do not hesitate
to conact us.

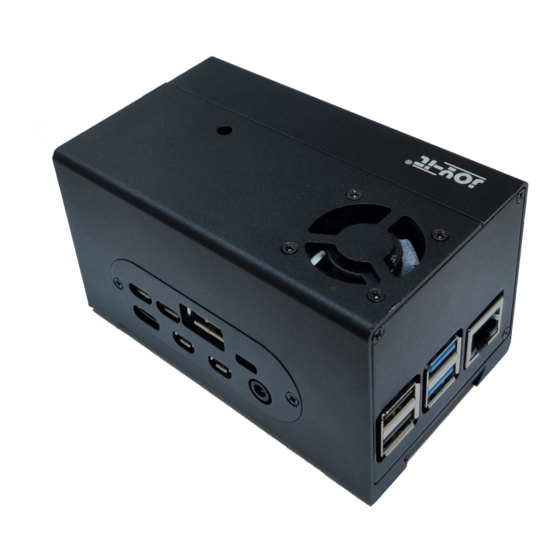

This high-quality aluminium case offers space for your Raspberry Pi incl.
StromPi 3 and Battery Hat (-XL also). A removable cover above the GPIO bar
keeps it easily accessible.
The RB-StromPi3-PCB allows the use of the power button function. In additi-
on, the fan can be operated with this board and optionally controlled.
www.joy-it.net
Pascalstr. 8 47506 Neukirchen-Vluyn
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Joy-it RB-StromPi3-Case
Summary of Contents for Joy-it RB-StromPi3-Case

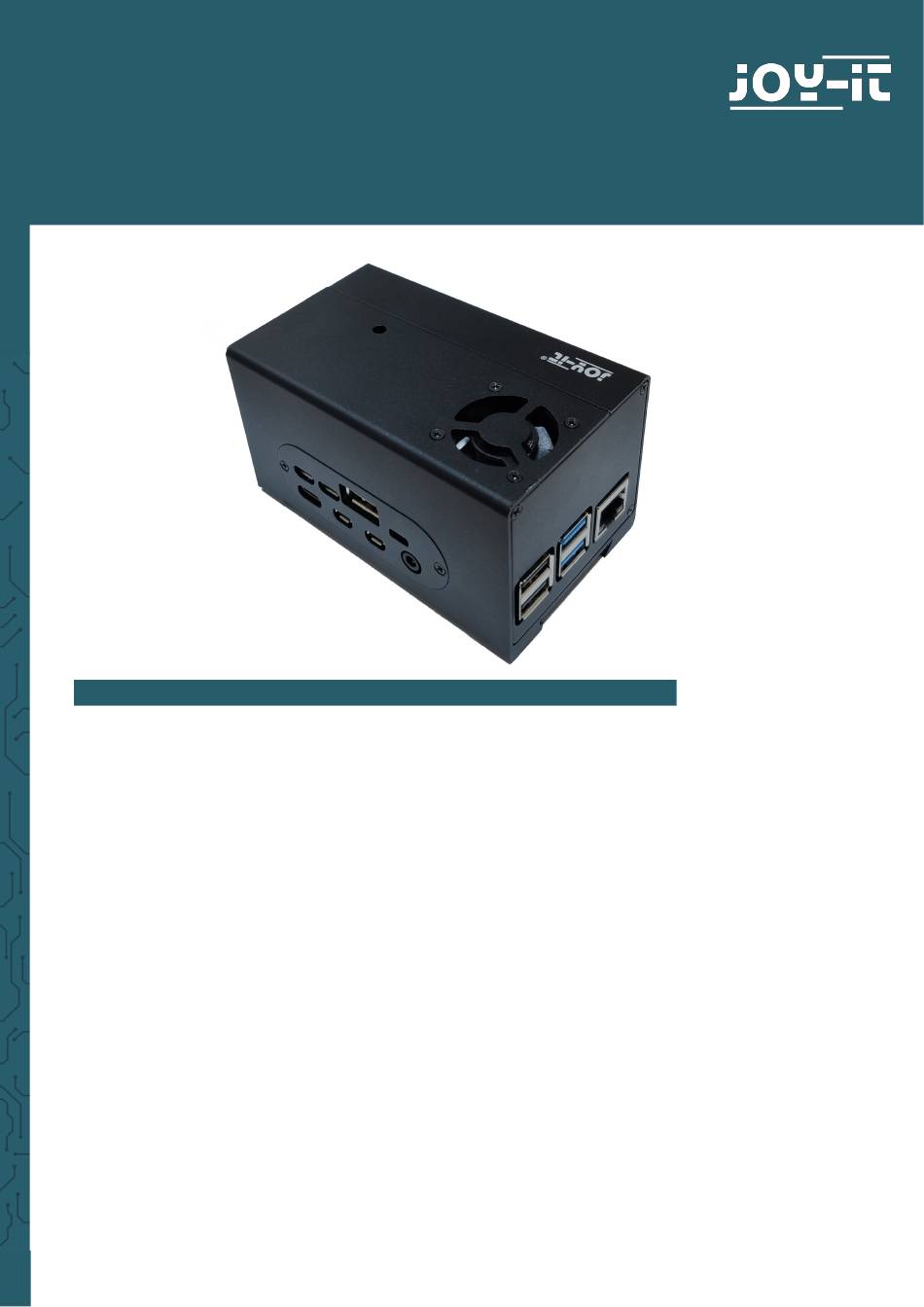

- Page 1 STROMPI 3 CASE RB-StromPi3-Case 1. GENERAL INFORMATION Dear costumer, Thank you for buying our product. The structure and functions of the StromPi3 are explained in the following chapters. We show you which settings must be adjusted that the Raspberry Pi will work with the Strom- Pi perfectly.
- Page 2 If you want to use a Raspberry Pi 4, you can leave the side panel for the HDMI and power connections installed. In both cases the fan must also be removed first. Now screw the spacers with the nuts to your Raspberry Pi. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
- Page 3 Now place your StromPi on the Raspberry Pi and connect the cable for the wide-range power supply. Please note that, depending on the cable you use for this, you will have to insert it already through the hole provided in the back panel. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
- Page 4 It does not matter which cable is plugged to which pin. If you use the smaller 1000mAh Battery-HAT, you have to stick the supp- lied foam spacer on the board from below. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
- Page 5 CPU temperature of the Raspberry Pi. To do this, set the jumper on the right side to either 5V or PWM. A Python script for PWM fan control can be found at the end of this manu- www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
- Page 6 Screw the fan to the case with the long black screws. Make sure that no cable gets to the blades of the fan. Now fix the Raspberry Pi with the thicker black screws from the bottom of the case. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
- Page 7 Next, screw on the back cover for the wide-range input. Now insert the cover for the GPIO ports. Install the front cover for the USB and Ethernet ports. Note that the Pi3 and Pi4 require different covers. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
- Page 8 For mounting on a DIN rail, first hook the lower side and then press the upper part. You can still move the housing on the DIN rail. To fix it on the rail, tighten the grub screws with the Allen key provided. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
- Page 9 = pDiff + iDiff + fanSpeed > 100: fanSpeed = elif fanSpeed < 35: fanSpeed = > 100: elif < -100: -100 #print(str(actTemp) + "C, " + str(fanSpeed)) led.value = fanSpeed / # PWM Output sleep(1) www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
- Page 10 Here you can add the script to the autostart. The following command must be inserted before the exit 0 command. python3 /home/pi/Skriptname.py & If you have not saved the script in the /home/pi/ directory, you will need to change the path accordingly. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
-
