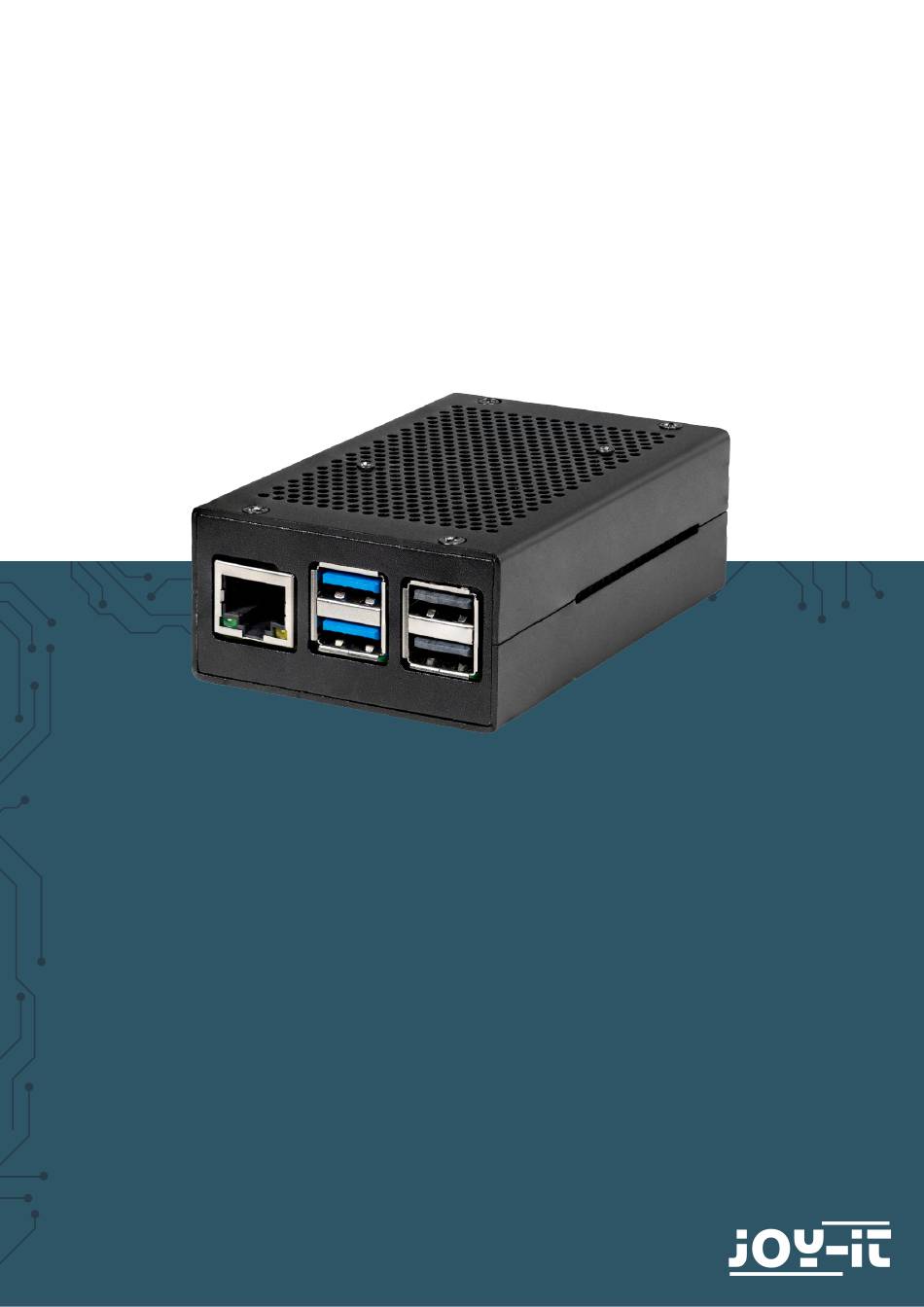

- Page 1 RASPBERRY PI 5 ALUMINUM CASE RB-CaseP5-061B Joy-IT powered by SIMAC Electronics GmbH - Pascalstr. 8 - D-47506 Neukirchen-Vluyn - www.joy-it.net...
-
Page 2: General Information
1. GENERAL INFORMATION Dear customer, thank you for choosing our product. In the following, we will show you what you need to bear in mind during commissioning and use. Should you encounter any unexpected problems during use, please do not hesitate to contact us. 2. - Page 3 Now insert the two enclosed covers into the housing. Make sure that you place the covers on the correct side: Then turn the housing over and fasten the two covers at the points marked below using the screws provided:...
- Page 4 You can now connect the active cooler installed in the housing as standard or simply remove it from the housing. If you want to use the fan, connect the fan cable to the fan connection marked below on your Raspberry Pi 5:...
- Page 5 If you do not want to use the fan, you can remove the screws marked below and thus remove the fan: Now turn the housing over and place the cover on the two panels and mount it at the points marked below using the enclosed screws. Your housing is now fully assembled and ready for use!
-
Page 6: Other Information
SIMAC Electronics GmbH, Pascalstr. 8, D-47506 Neukirchen-Vluyn RETURN OPTION IN YOUR AREA: We will send you a parcel stamp with which you can return the device to us free of charge. To do so, please contact us by e-mail at Service@joy-it.net or by telephone. PACKAGING INFORMATION: Please pack your old appliance securely for transportation.
