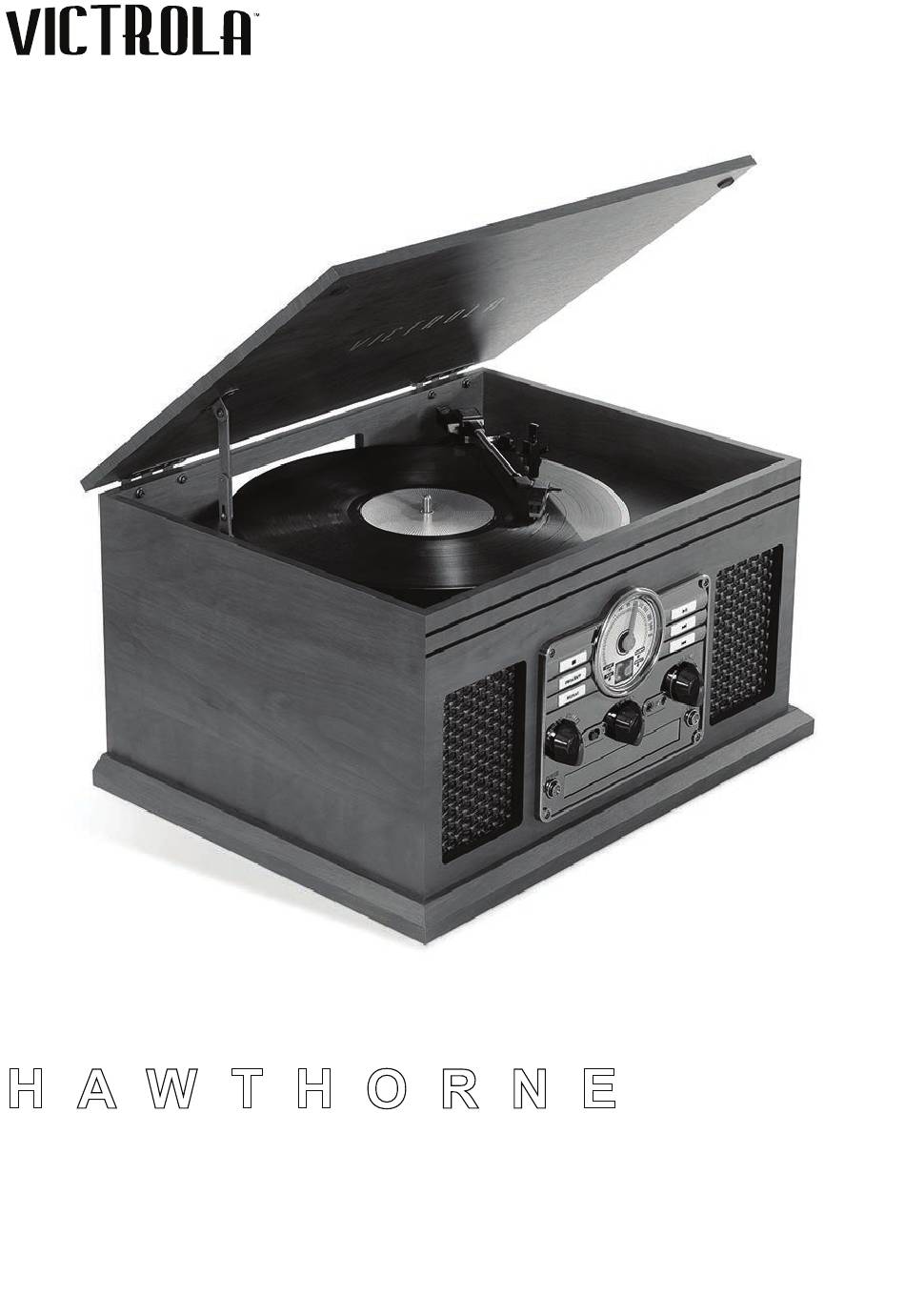

- Page 1 T H E H A W T H O R N E MODEL: VTA-205B INSTRUCTION MANUAL PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USE AND KEEP IT FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
Important Safety Instructions ......................... 3 Product Overview ............................4 Setup / Basic Operation..........................7 Listening to a Vinyl Record ..........................7 Listening to a CD ............................8 Listening to the FM Radio..........................9 Listening to an External Audio Device (AUX Mode) ..................9 Listening to an External Audio Device (Bluetooth Mode) ................ -
Page 3: Important Safety Instructions
Important Safety Instructions WARNING: To prevent electric shock, do not use this (polarized) plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure WARNING: Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to laser beam. -
Page 4: Product Overview
This equipment is a Class or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth. 17. The mains plug is used as disconnect device, the disconnect device shall remain readily operable. 18. - Page 5 9. LED DISPLAY 10. TUNING DIAL POINTER 11. STEREO SPEAKERS 12. STOP Press to stop playback or cancel the program setting. 13. PLAY/PAUSE Press to start playback, press again to pause. (Note: This button only works in CD, Bluetooth mode.) 14.
- Page 6 Rear View FM Wire Antenna While tuned to a station in FM mode, extend the wire and reposition to adjust for best reception. Line Out Jacks For amplifier device with RCA auxiliary input sockets, insert the white and red plugs on the RCA cable into the unit.
-
Page 7: Setup / Basic Operation
Setup / Basic Operation Setup 1. Remove white protective needle cover by gently pulling towards front of unit. 2. Remove any packaging materials from the unit. 3. Connect the AC power cord to a wall outlet. Note: -It is strongly recommended that this product should be operated only from the type of power source indicated on the marking label. -
Page 8: Listening To A Cd
Important: - Closing the top cover will help prevent dust from settling on the turntable. - Always relock the tone arm clip before transporting the unit. - Do not place anything on top of the turntable cover, especially while playing a record. Listening to a CD 1. -
Page 9: Listening To The Fm Radio
Programmed Playback Up to 20 tracks can be programmed to play in the desired order. Notes: - Programmed playback works with CD discs only. 1. Select “CD” mode, then load a CD. 2. While the CD is stopped, press the PROGRAM button. 3. -
Page 10: Listening To An External Audio Device (Bluetooth Mode)
3. Turn ON the Bluetooth function on your external device. NOTE: The effective distance between your external device and this apparatus is 10 meters (33ft). 4. Wait for “Victrola Hawthorne” to appear on the paired devices list of your external device and press “Victrola Hawthorne”. -
Page 11: Maintenance / Proper Handling
Maintenance / Proper Handling Compact Disc Handling Always place the disc on the disc tray with the label side facing upward (compact discs can be played/recorded • only on one side) To remove a disc from its storage case, press down on the center of the case and lift the disc •... -
Page 12: Specifications
Specifications GENERAL Power Requirements AC 120 V~ 60 Hz Power Consumption x 255 x 340mm | 18 x 10 x 13.4in ( Dimensions (W x H x D) approx.) Weight . | 16 lbs (approx.) AMPLIFIER Output Power 5 W + 5 W Frequency Response 60 to 20,000 Hz SPEAKER SYSTEM... -
Page 13: Troubleshooting Guide
Troubleshooting Guide Symptom Possible Cause Solution Unit will not power on. Unit is unplugged. Connect the unit to the AC • • • power supply. No sound output from The volume level is set too low. Adjust the volume. • •... - Page 14 • • successful again. For further assistance with your product, call Victrola at TOLL FREE# 1-877-ITECH-97 (1-877-483-2497). Please note: As a result of continual improvements, the design and specifications of this product are subject to change without notice. Made in China.
-
Page 15: Fcc Statement And Other Warnings
FCC WARNING Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. - Page 16 God or attempted repair by an unauthorized service agent. To obtain service, the purchaser MUST present an original sales receipt / proof of purchase. Please contact us at www.victrola.com to request an RMA (Return Material Authorization) number to return products for service or replacement. Returns without an RMA number on the package will be refused and returned to sender.
