Victrola VTA-370B Instruction Manual

7-in-1 turntable
Hide thumbs
Table of Contents

Advertisement

Quick Links

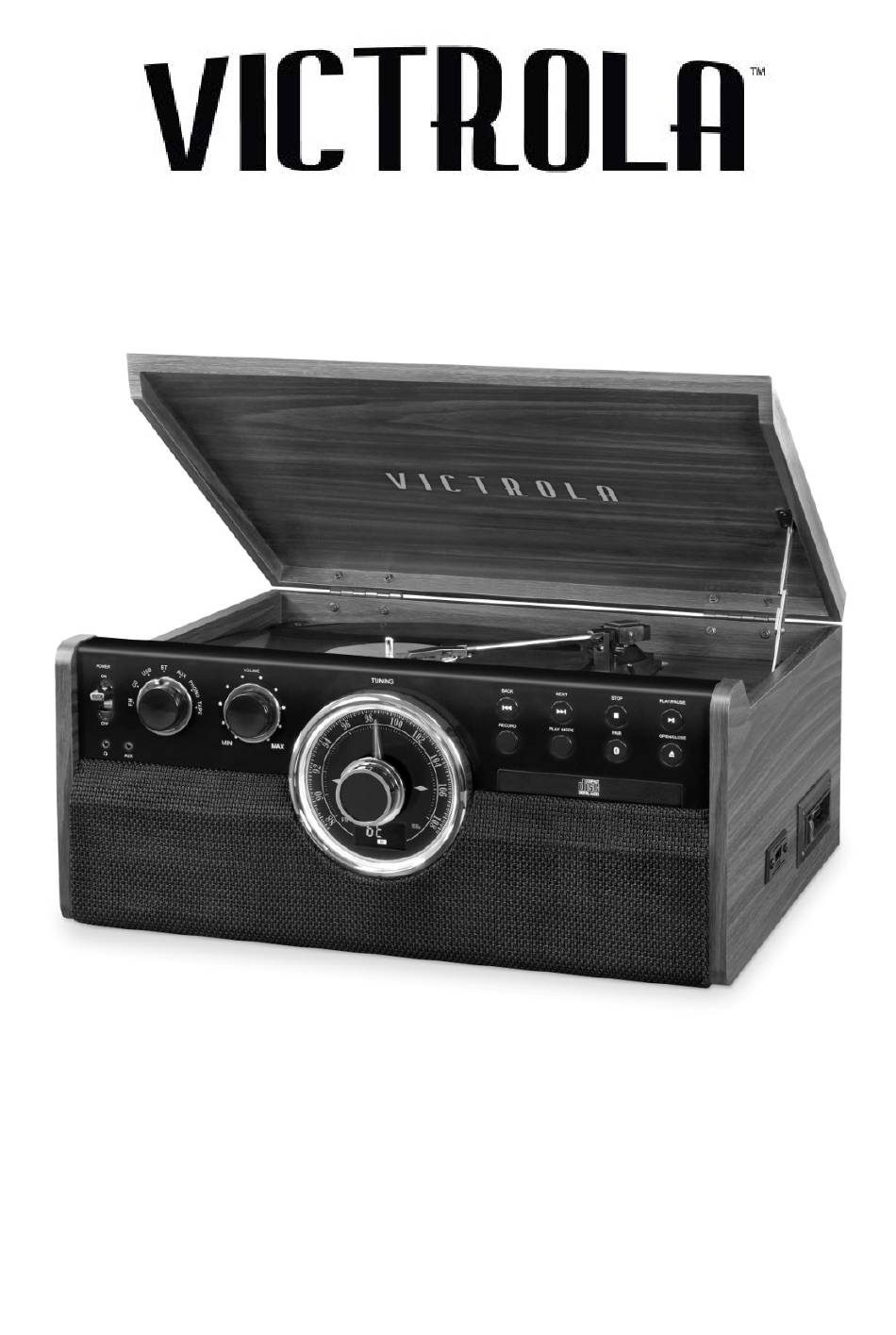

MODEL: VTA-370B
7-IN-1 TURNTABLE
Instruction Manual
PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY
BEFORE USE AND KEEP IT FOR FUTURE REFERENCE.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTA-370B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Victrola VTA-370B

Summary of Contents for Victrola VTA-370B

  • Page 1 MODEL: VTA-370B 7-IN-1 TURNTABLE Instruction Manual PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USE AND KEEP IT FOR FUTURE REFERENCE.

  • Page 2: Table Of Contents

    Important Safety Instructions ..................3 Product Overview ...................... 5 Setup / Basic Operation ..................... 8 Listening to the FM Radio ..................8 Listening to a CD/CD-MP3/WMA................8 Listening to an External Audio Device (BT Mode) ..........10 Listening to an External Audio Device (AUX Mode) ..........10 Listening to a Vinyl Record..................

  • Page 3: Important Safety Instructions

    CAUTION: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. WARNING: To prevent electric shock, do not use this (polarized) plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure. WARNING: Invisible laser radiation when open and interlock failed or defeated.
  • Page 4 -This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. -Warning: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside.

  • Page 5: Product Overview

    Product Overview Front View POWER Toggle to turn the unit on or off. 3.5mm AUX IN JACK: Connect your external source to the AUX IN jack. 3.5mm HEADPHONE JACK STEREO SPEAKERS DISC TRAY OPEN/CLOSE : In CD mode, use to open and close the disc tray. PLAY/PAUSE : Press to start playback, press again to pause.
  • Page 6 Left Side View 18. CASSETTE FF & EJECT: Press halfway to fast forward, press all the way to end and eject the tape. 19. USB Port Rear View 20. LINE OUT Jacks For amplifier device with RCA auxiliary input sockets, insert the white and red plugs on the RCA cable into the unit.
  • Page 7 Parts of the Turntable Turntable. Safety Screw (for transport) Before using the unit, turn the screw clockwise using a coin or screwdriver. Important: When you transport the unit, turn the screw counter-clockwise to secure the turntable. Speed Selector. Tone Arm holder. Before use, completely loosen the twist Tone Arm: tie on the tone arm and uplift tone arm.

  • Page 8: Setup / Basic Operation

    Setup / Basic Operation Setup 1. Remove white protective needle cover by gently pulling towards front of unit. 2. Remove any packaging materials from the unit. 3. Connect the AC power cord to a wall outlet. Note: -It is strongly recommended that this product should be operated only from the type of power source indicated on the marking label.
  • Page 9 6. To temporarily pause playback, press the PLAY/PAUSE button ( ). Press again to resume. 7. To return to the previous or skip tracks, press the corresponding button ( ). Pressing once will restart the current track. Pressing twice in succession will return to the beginning of the previous track.

  • Page 10: Listening To An External Audio Device (Bt Mode)

    NOTE: The effective distance between your external device and this apparatus is 10 meters (33ft). 4. Wait a moment for “VTA-370B”to appear on the devices list. Press “VTA-370B”to connect to the unit. If a window asks you for a password, fill in “0000” then press “OK” on your external device.

  • Page 11: Listening To A Vinyl Record

    Listening to a Vinyl Record 1. Rotate to select “PHONO” function. The LED Display will display “PHON”. 2. Gently open the top cover. Note: Be careful not to pinch your finger when opening/closing the top cover. 3. Place a vinyl record on the turntable. When playing a 45 RPM record, use the included adaptor. 4.
  • Page 12 Repeat/Shuffle Playback Each time the PLAY MODE button is pressed, the repeat mode will cycle through the following options: REPEAT 1(Repeat one track) The “REPEAT 1” icon will appear on the display and the current track will be played repeatedly. If you press the ( ) button to select another track, the track you select will be played repeatedly.
  • Page 13 RECORDING Before Recording Audio from the PHONO, TAPE, CD, AUX, or BLUETOOTH sources can be recorded on the USB memory. Note: All sources record to USB, the format is MP3. Record from BT/AUX/PHONE/TAPE 1) First Insert a USB memory stick into the USB port. 2) Pick the source of music and rotate the selector knob (BT/AUX/PHONO/TAPE) a) If using a record, put the vinyl on the turntable.
  • Page 14 Press STOP button to cancel the recording and the number of tracks will appear on the display. Note: When CD audio is recording to USB, the CD can be recorded while CD is stopped OR while playing. Recording volume is preset and cannot be adjusted. The listening volume does not affect the recording.

  • Page 15: Maintenance/Proper Handling

    Maintenance / Proper Handling Compact Disc Handling Always place the disc on the disc tray with the label side facing upward (compact discs can be played/recorded • only on one side) To remove a disc from its storage case, press down on the center of the case and lift the disc •...

  • Page 16: Specifications

    Specifications GENERAL Power Requirements AC 120 V~60 Hz Power Consumption x 15 in x 7.87in Dimensions (W x H x D) 18.9in (approx.) x 380mm x 200mm 480mm (approx.) Weight 18.15 lbs (approx.) 8.25 (approx.) AMPLIFIER Output Power 5 W + 5 W Frequency Response 60 to 20,000 Hz SPEAKER SYSTEM...

  • Page 17: Troubleshooting Guide

    Troubleshooting Guide Symptom Possible Cause Solution Unit will not Unit is unplugged. Connect the unit to • • • power on. the AC power supply. No sound output The volume level is set too low. Adjust the volume. • • •...
  • Page 18 No sound output The unit is not on AUX mode. Ensure the unit is • • • with external audio switched to AUX device plugged mode. into AUX in jack. No sound. The unit is not switch to Bluetooth mode. Ensure the unit is •...

  • Page 19: Fcc Statement

    FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 20 To obtain service, the purchaser MUST present an original sales receipt / proof of purchase. Please contact us at www.victrola.com to request an RMA (Return Material Authorization) number to return products for service or replacement. Returns without an RMA number on the package will be refused and returned to sender.
