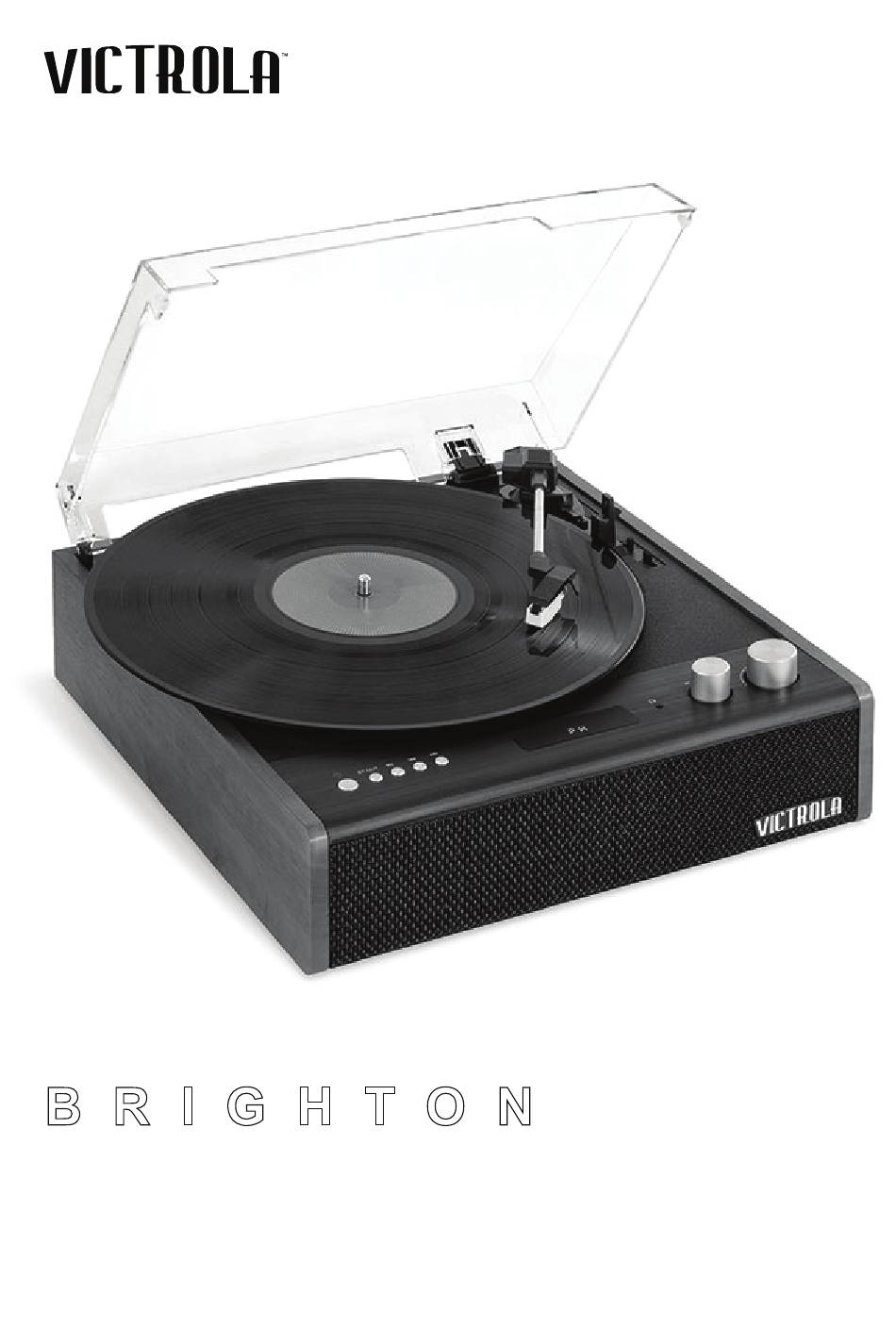

T H E
B R I G H T O N
MODEL: VTA-71
INSTRUCTION MANUAL
PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USE
AND KEEP IT FOR FUTURE REFERENCE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THE BRIGHTON and is the answer not in the manual?

Questions and answers

Related Manuals for Victrola THE BRIGHTON

Summary of Contents for Victrola THE BRIGHTON

  • Page 1 T H E B R I G H T O N MODEL: VTA-71 INSTRUCTION MANUAL PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USE AND KEEP IT FOR FUTURE REFERENCE.

  • Page 2: Table Of Contents

    CONTENTS Safety Instructions................Product Overview................Setup/Basic Operation..............Vinyl Record Operation..............Bluetooth Operation................ Bluetooth-Out Operation..............7 Maintenance/Proper Handling............Troubleshooting Guide..............Specifications.................. FCC Statement and other warnings..........

  • Page 3: Safety Instructions

    -This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’ s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. -Warning: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts insides.
  • Page 4 9. Do not defeat the safety purpose of the polarized or grounding plug. A polarized Safety Instructions plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety.

  • Page 5: Product Overview

    PRODUCT OVERVIEW Front View PHONO BT OUT 2 3 4 5 1. POWER: Press to turn the unit ON or OFF. 2. BT OUT: Press to activate the Bluetooth output function. 3. PLAY/PAUSE ( Press to start playback, press again to pause. Long press the button for 3 seconds to disconnect the Bluetooth pairing.
  • Page 6 10. LINE OUT jacks For amplifier device with RCA auxiliary input sockets, insert the white and red plugs on the RCA cable into the unit. Insert the opposite end into the amplifier device. Be sure to connect the white plug to the white jack and the red plug to the red jack.

  • Page 7: Setup/Basic Operation

    SETUP/BASIC OPERATION Setup 1. Remove white protective needle cover by gently pulling towards front of unit. 2. Remove any packaging materials from the unit. Connect the power adapter to the DC Input jack to power on the unit. Note: - It is strongly recommended that this product should be operated only from the type of power source indicated on the marking label.

  • Page 8: Vinyl Record Operation

    VINYL RECORD OPERATION 1. Turn the unit ON by pressing the POWER button. 2. Turn the BT/PHONO KNOB to enter the PHONO mode. 3. Gently open the dust cover. 4. Put the record on the turntable. Select the speed. When playing a 45 RPM record, use the included 45 adaptor.

  • Page 9: Bluetooth Operation

    1. Turn the BT/PHONO KNOB to select BT mode. The “bt” will flash on the Display Screen. 2. Turn your external devices’ Bluetooth Setting ON. Wait a moment, then look for the Bluetooth Pairing name “Victrola Brighton” NOTE: The effective distance between your external device and this unit is 10 meters (33ft).

  • Page 10: Maintenance/Proper Handling

    MAINTENANCE/PROPER HANDLING Handling Vinyl Records • Do not touch the record’s grooves. Only handle records by the edges or the label with clean hands. Touching the record surface will cause your record’s quality to deteriorate. • To clean a record, use a soft anti-static cloth to gently wipe the record surface •...

  • Page 11: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Possible Cause Solution Symptom • Unit will not power on • Unit is unplugged. • Connect the DC power adapter to the jack. • The volume level is set • No sound output from • Adjust the volume. too low.
  • Page 12 Solution Possible Cause Symptom • No sound • Ensure the unit is • The unit is not switched to Bluetooth mode. switched to BT mode. • Your device’s and/or • Move your Bluetooth your unit’s volume is not device closer to unit. turn up.

  • Page 13: Specifications

    SPECIFICATIONS GENERAL Power adapter ----------------------- DC 5V/1A Power Consumption --------------- 5W Power Output ------------------------ 2 × 2W Size------------------------------------- 12.7" (322mm) W × 12.3" (312mm) D × 5.2" (131mm) H Weight --------------------------------- 4.5 lbs (2kg) RECORD PLAYER Speeds -------------------------------- 33-1/3 RPM, 45 RPM and 78 RPM BLUETOOTH Bluetooth Version------------------- V4.0 Bluetooth Profiles ------------------- A2DP, AVRCP...

  • Page 14: Fcc Statement And Other Warnings

    FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 15 WARRANTY Victrola is a registered trademark of Innovative Technology Electronics LLC. Innovative Technology Electronics LLC. (IT) warrants the product to be free from "Defects" in materials under normal use for a period of "One Year" from the date of the original purchase. The Warranty is "Not" transferable. IT agrees, within the initial "One Year"...
