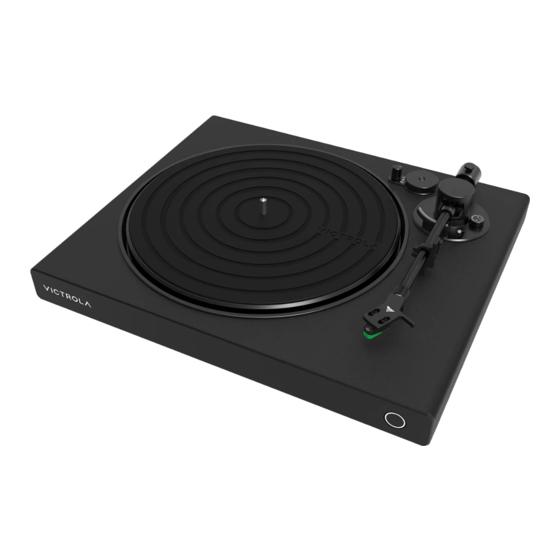

- Page 1 Q U I C K S T A R T G U I D E HI-RES V P T-15 0 0 V P T- 2 5 0 0...
- Page 2 CAREFULLY REMOVE THE SET THE SLIPMAT ASIDE TAPED GUIDE STRING AND PL ACE THE PL AT TER AND USE THE STRING TO ONTO THE TURNTABLE. STRETCH THE BELT OVER THE MOTOR SPINDLE. ROTATE THE PL AT TER UNTIL THE HOLE WITH THE ONCE THE BELT IS GUIDE STRING IS DIRECTLY INSTALLED AROUND THE...
- Page 3 INSERT THE HEADSHELL ORTOFON 2M SERIES: INTO THE TONEARM ( VPT-2500) AND TIGHTEN THE PUSH THE ST YLUS TONEARM COLL AR COVER TAB DOWN / COUNTER-CLOCK WISE FORWARD AND GENTLY UNTIL THE HE ADSHELL SLIDE THE COVER OFF. IS SECURE.
- Page 4 AUDIO TECHNICA SLIDE THE COUNTERWEIGHT VM95 SERIES: ONTO THE TONEARM ( VPT-1500) UNTIL THE FRONT OF THE GENTLY PULL THE COVER COUNTERWEIGHT IS OFF OF THE CARTRIDGE. ALIGNED WITH THE BACK GROOVE ON THE TONEARM. Note: Remove the two foam blocks from the tonearm before installing the counterweight.
- Page 5 ONCE ALIGNED WITH THE USE THE SPEED SELECTOR CORRECT GROOVE, TURN KNOB TO SELECT YOUR THE TOP SCREW RECORD SPEED. CLOCK WISE TO TIGHTEN THE COUNTERWEIGHT. PL ACE THE 45 RPM ADAPTER ON THE SPINDLE Note: You may need to NEX T TO THE SPEED adjust the anti-skate if you CONTROL TO STORE...
- Page 6 OPER ATION GUIDE LED COLOR GUIDE RCA MODE flashes white (3x) POWER ON then solid white single press button SWITCH OUTPUT single press button BLUETOOTH MODE switch between RCA output Ready To Pair and Bluetooth output flashing blue Connected solid blue (2 sec) POWER OFF then solid white press and hold button...
