Summary of Contents for Victrola Revolution GO

  • Page 1 FOR MORE INFORMATION SCAN BELOW Side: A 45 RPM THE REVOLUTION GO VSC-750SB...
  • Page 2: S T A R T G U I D E

    Q U I C K S T A R T G U I D E FUNCTION KNOB - BASIC OPERATION POWER: Press and hold for 1-2 seconds to turn the unit ON or OFF. VOLUME: Rotate to raise or lower volume. FUNCTION KNOB - TO CYCLE THROUGH FEATURES VINYL: Press to enter record player function mode.

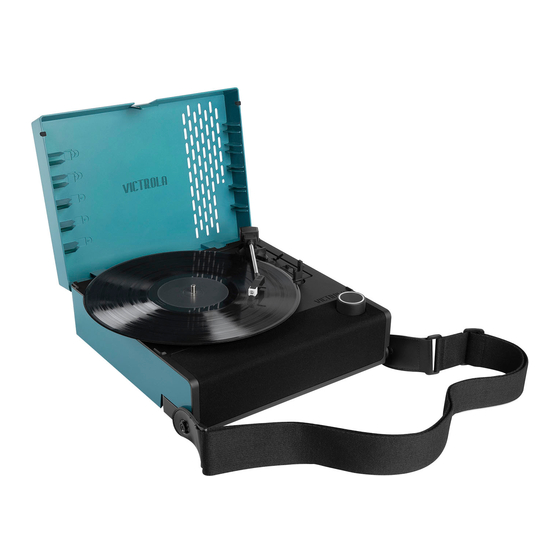

  • Page 3 R E V O L U T I O N O V E R V I E W Top View 45 RPM Adaptor Lift Lever Turntable Platter Speed / Auto Stop Switches Tone Arm Tone Arm Stylus Speaker Function Knob Rear View Bottom View Charging LED...
  • Page 4 R E C O R D H O L D E R L I D REMOVE RECORD FROM UNIT & APPLY LIGHT PRESSURE TO WHILE LID IS STILL AT 45º, PULL LOWER THE LID AT A 45º ANGLE THE BOTTOM SIDES OF THE LID STRAIGHT UPWARD TO REMOVE DOUBLE LP / 2 SINGLE SLOT...
  • Page 5 S I M P L E S E T U P GETTING STARTED Remove the needle cover, by gently pulling towards the front of the unit. Carefully plug in the unit and remove any accessories from the platter. Note: It is recommended that this product should be operated only from the type of power source indicated on the power adaptor.
  • Page 6 V I N Y L P L A Y I N G VINYL: Playing a Vinyl record Using the Function Knob, press and hold for 1-2 seconds to turn the unit ON. Simply press the Function Knob to make sure it is in Vinyl mode (the dial will illuminate white). Remove the needle cover, by gently pulling towards the front of the unit.
  • Page 7 Simply press the Function Knob to make sure it is in Bluetooth mode (the dial will ash blue). On your device, turn Bluetooth ON. Then search for and select “REVOLUTION GO” in the settings menu. The unit will chime and say “Connected”, while the Function Knob will remain blue.
  • Page 8: Maintenance

    W A R N I N G • Always follow basic safety precautions when using this appliance, especially when children are present. • Children should be supervised to ensure that they do not play with the appliance. • Do not damage the power cord, neither do not place any heavy objects on it, do not stretch it or bend it. Also do not attach extension cables.
  • Page 9: Condensation Warning

    W A R N I N G CAUTION: WARNING TIPS OF BATTERY: 1) Risk of explosion if the battery is replaced by an incorrect type; 2) High or low extreme temperatures that a battery can be subjected to during use, storage or transportation;...
  • Page 10: Power Adapter

    S A F E T Y I N S T R U C T I O N S POWER ADAPTER: • To disconnect the unit from the main supply, unplug the lead from the main socket. • Only use the supplied main adapter, as failure to do this may result in a safety risk and/or damage to the unit. The main plug of power adapter is used as the disconnect device.
  • Page 11: Specifications

    Model .............GW18W-090150UV INCLUDED: Revolution Go with Removable Lid, Guitar Strap, Slipmat, Power Adaptor,...
  • Page 12: Fcc Warnings

    F C C W A R N I N G S FCC STATEMENTS Caution: the user is cautioned that charges or modi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC rules and Industry Canada license-exempt RSS standard(s).
  • Page 13: Warranty

    Except as limited below, if the product proves defective in either material or workmanship within one (1) year from the date of purchase, Victrola will replace the product at no charge. If the product model is no longer available and cannot be replaced with an identical model, Victrola will issue a merchandise credit for the purchase price to be redeemed at victrola.com.
  • Page 14 If the product model is no longer available and cannot be repaired effectively or replaced with an identical model, Victrola at its sole option may replace the unit with a current model of equal or greater value. Outside the U.S, Canada, and US Territories The Warranty on this product shall comply with applicable law when sold to a consumer outside of the United States, Canada, and US Territories.
  • Page 15 T h a n k y o u f o r b u y i n g a V i c t r o l a .
