6 ADS7042EVM-PDK Kit Operation
This section describes how to use ADS7042EVM-PDK and the ADS7042EVM software to configure the
EVM and acquire data.
6.1 About the SCC Controller Board
The SCC controller board provides the USB interface between the PC and the ADS7042. The controller
board is designed around the AM335x processor, a USB 2.0 high-speed capability, 32-bit ARM core. The
SCC controller board incorporates an onboard FPGA subsystem and 256MB of onboard DDR SRAM
memory. The SCC controller board is not sold as a development board, and it is not available separately.
TI cannot offer support for the SCC controller` board except as part of this EVM kit.
6.2 Loading the ADS7042EVM Software
The ADS7042 EVM software provides the ability to capture and analyze data from the ADS7042.
To load the ADS7042 EVM software, follow these steps:
Step 1. Make sure the EVM kit is configured and powered up as explained in
Step 2. Start the ADS7042 EVM software. Go to Start → All Programs →Texas Instruments →
ADS7042 EVM and click ADS7042 EVM to run the software.
Step 3. Verify that the software detects the ADS7042. The GUI identifies the EVM hardware that is
connected to the controller board and displays the ADS7042EVM Front Page. After the
settings are loaded, ADS7042EVM GUI is displayed at the top of the GUI screen, which the
device identified indicated at the right hand top corner as shown in
SBAU234A – October 2014 – Revised November 2014
Submit Documentation Feedback

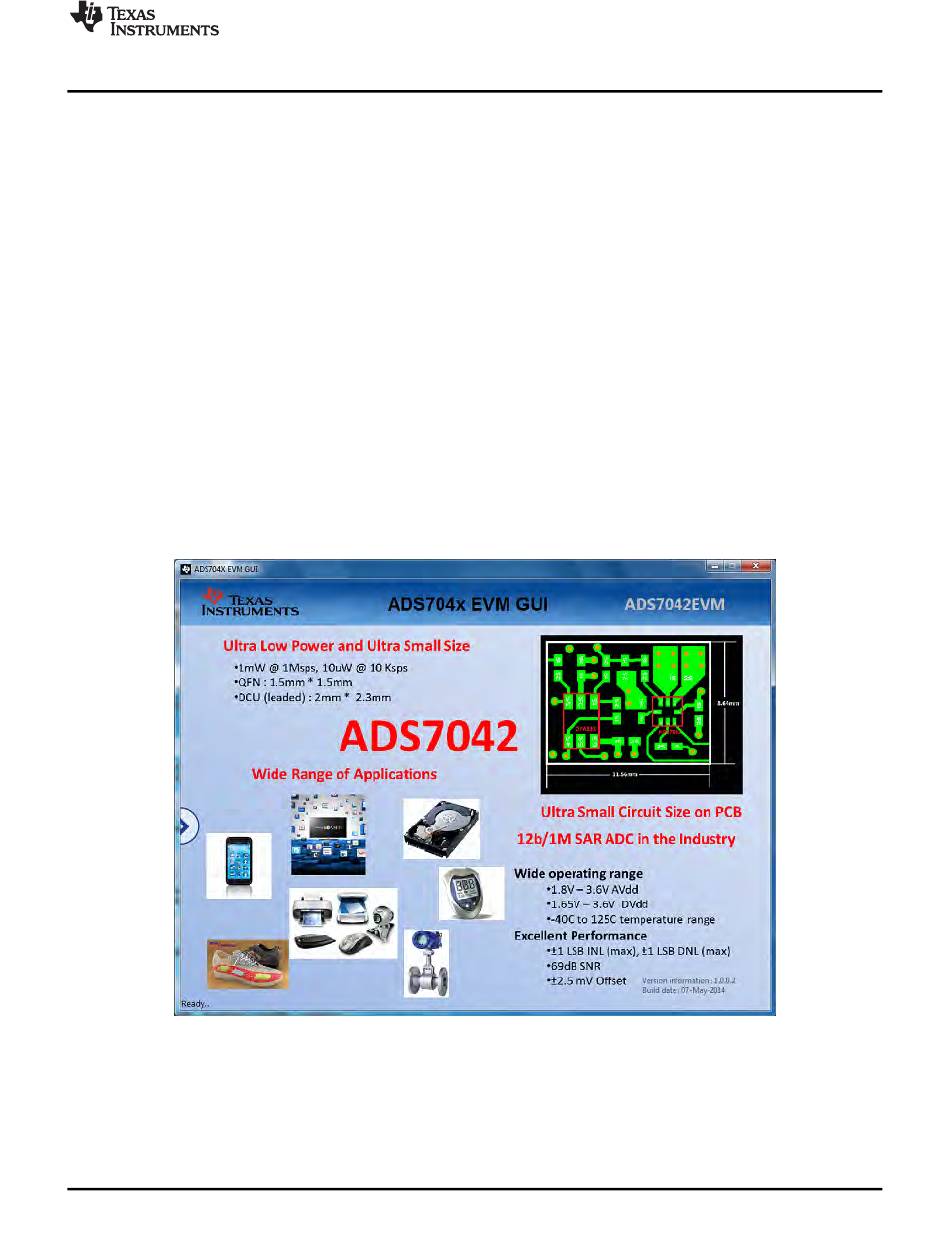

Figure 13. GUI Display Prompt
Copyright © 2014, Texas Instruments Incorporated
ADS7042EVM-PDK Kit Operation
Section 5.
Figure 13.
ADS7042EVM-PDK
