ADS7042EVM-PDK Kit Operation
6.3
Capturing Data with the ADS7042-PDK
Access the Data Capture page in the GUI to monitor data acquired by the ADS7042. This GUI page
displays the acquired data versus time. To access the Data Capture page, hover the cursor over the blue
arrow at the left center side of the GUI screen; a menu with different GUI pages appears. Click on the
Data Capture option in the menu as shown in
12
ADS7042EVM-PDK
Figure

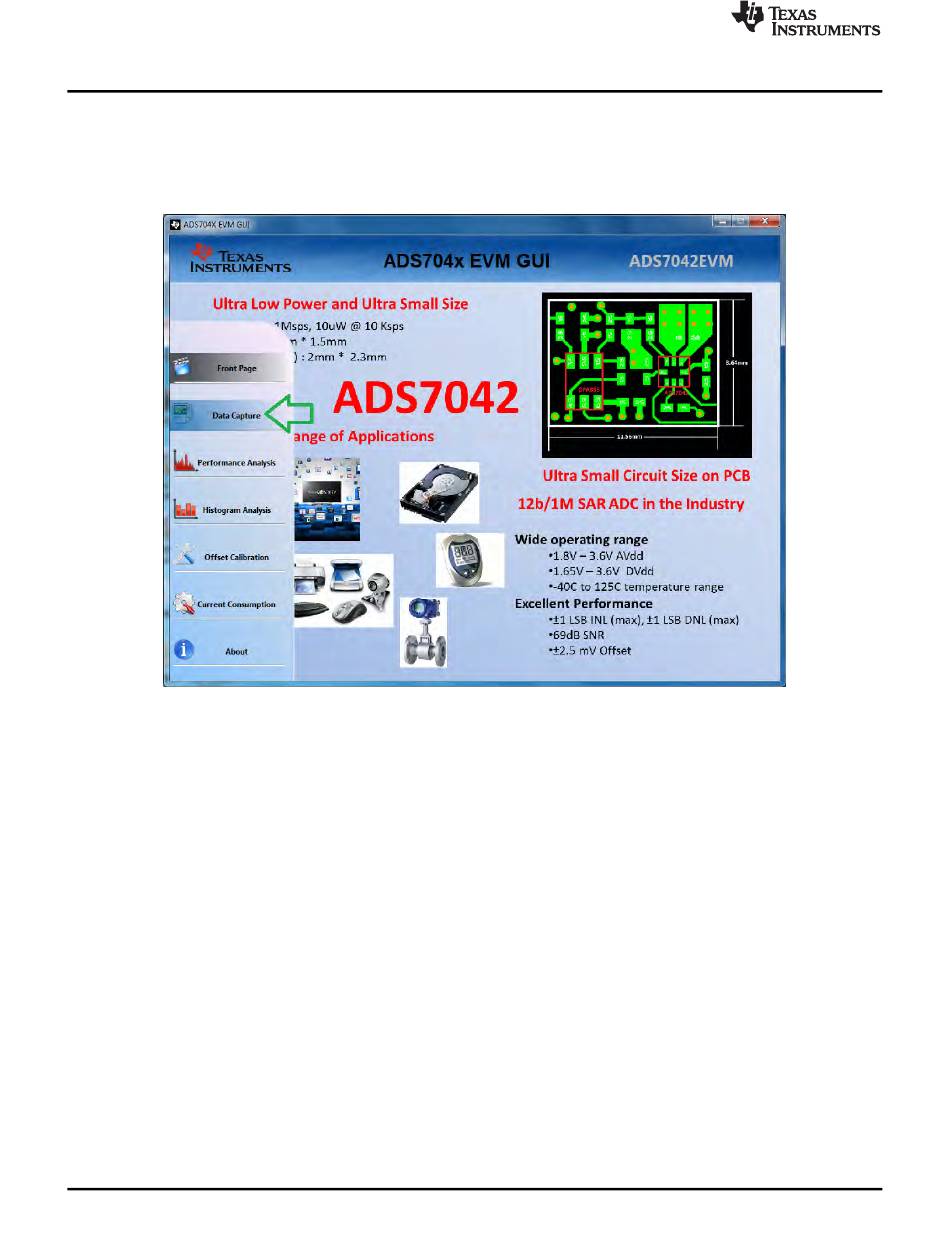

Figure 14. Open the Data Capture Page on the GUI
Copyright © 2014, Texas Instruments Incorporated
14.
SBAU234A – October 2014 – Revised November 2014
www.ti.com
